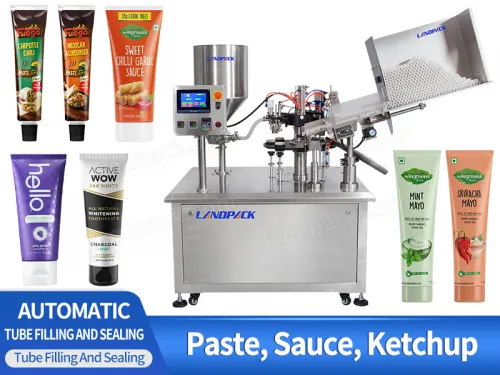

Automatic Cosmetic Paste Liquid Tube Filling And Sealing Machine

Introduction:

Paste Tube Filling and sealing machine is suitable for medicine, food, cosmetics, daily chemical and other industries such as paste, adhesives, AB glue, epoxy glue, skin cream.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

Paste Tube Filling and sealing machine is suitable for medicine, food, cosmetics, daily chemical and other industries such as paste, adhesives, AB glue, epoxy glue, skin cream.

Automatic Cosmetic Paste Liquid Tube Filling And Sealing Machine

FEATURES

1. Easy to operate and maintain.

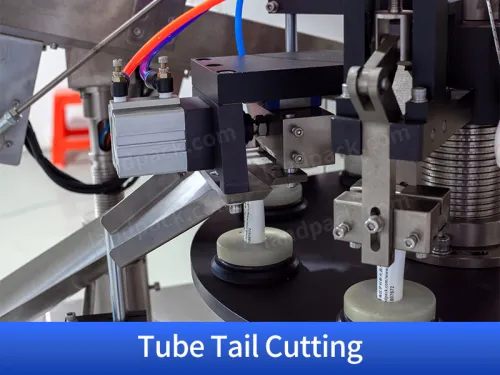

2. Automatic positioning, filling, welding, cutting and trimming, printing code in one time.

3. Stainless steel machine body, strong and beautiful looks.

4. Sealing mould can be customized according to customer requirements. Can seal many size of tubes.

5. Ultrasonic Sealing Machine power source for the pneumatic, working steady, not easy to damage, customers can rest assured use.

Automatic Cosmetic Paste Liquid Tube Filling And Sealing Machine


WORKFLOW

01

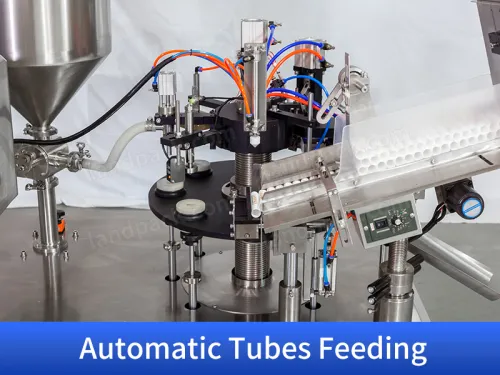

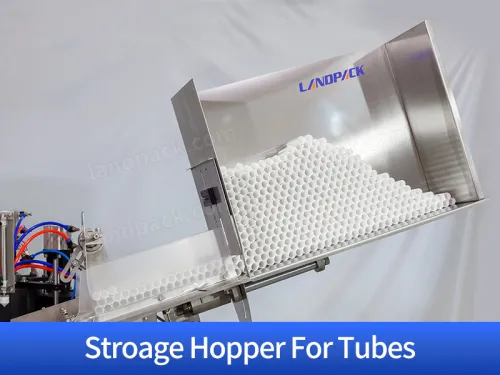

Empty Tube Feeding

02

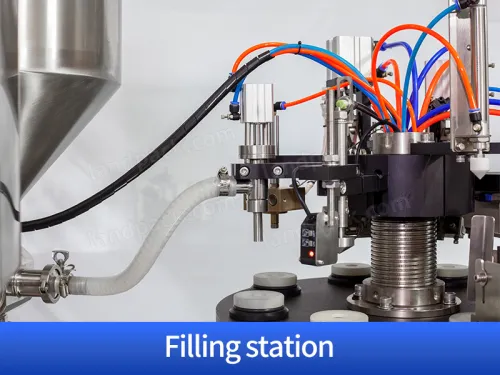

Liquid Paste Filling

03

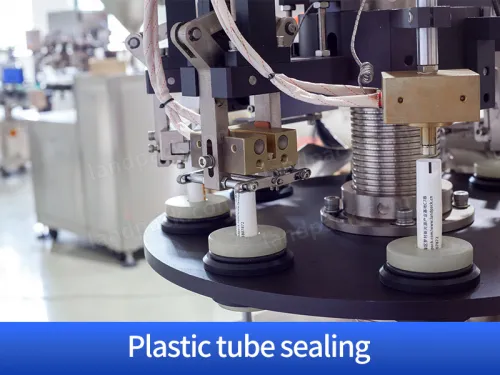

Tube Sealing

04

Finished Output

PARAMETER

Automatic Cosmetic Paste Liquid Tube Filling And Sealing MachineTube Filling And Sealing Machine
ModelLFF-GFW-00
Yield20-40PCS/min
Pipe DiameterΦ10mm-Φ50mm (Customizable)
Tube Height20mm-250mm (Customizable)
Control systemPLC
Power supply220V、50Hz
Airconsumption0.3m³/min
Dimension2180mm*930mm*1870mm(L*W*H)
Equipment Material304
Weight700KG



Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
