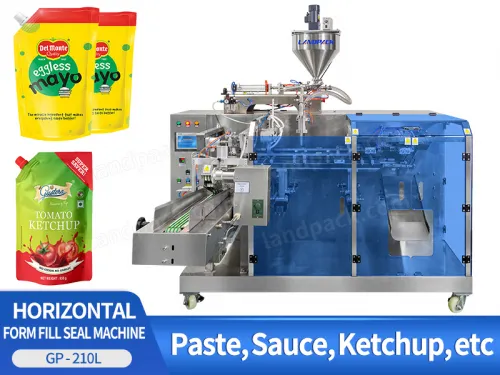

Automatic Liquid Paste Horizontal Pouch Doypack Packing Packaging Machine

Introduction:

The machine is suitable for paste, lotion, juice, honey, ketchup, butter, olive oil, fruit jam, peanut butter, chocolate paste, shampoo, body wash, liquid detergent, dishwashing liquid, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

The machine is suitable for paste, lotion, juice, honey, ketchup, butter, olive oil, fruit jam, peanut butter, chocolate paste, shampoo, body wash, liquid detergent, dishwashing liquid, etc.

FEATURES

1. Different machine models available to meet a wide range premade bag size.

2. Customized main machine structure for various kinds of bag shape. Like doypack zipper bag, 3/ 4 side seal bag, spout pouch, stand up bag and irregular bag, etc.

3. With upgrade PLC control system, easy for operation on touch screen of parameter setting.

4. Machine can equipment with different metering system like weigher, liquid pump, auger filler, bucket chain for different kinds of product filling and packing in premade bag.

Automatic Liquid Paste Horizontal Pouch Doypack Packing Packaging Machine

WORKFLOW

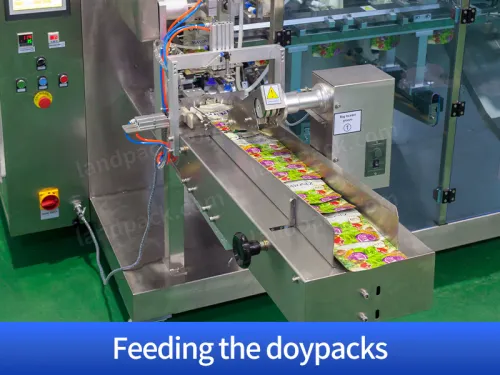

Pouch Loading

Pouch Picking

Pouch Opening

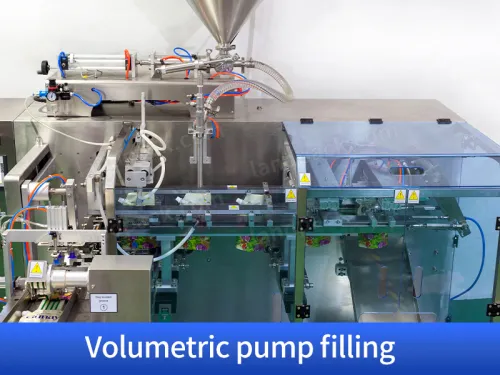

Liquid Filling

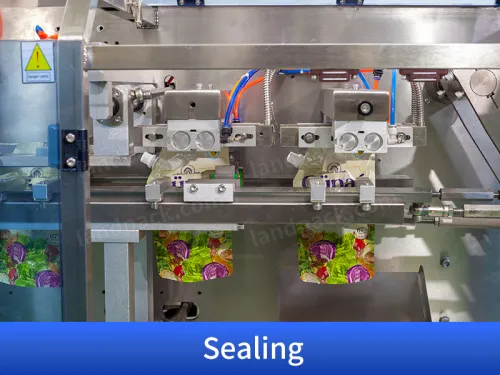

Pouch Sealing

PARAMETER

Pesticide Horizontal Premade Pouch Packing Machine
Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
