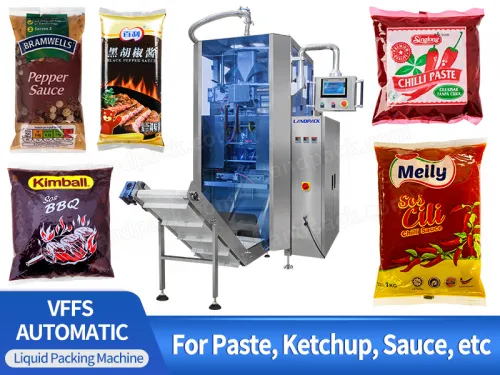

Automatic Sauce Paste Vertical Packing Machine With CIP Cleaning System

Introduction:

Automatic sauce paste vertical packing machine with CIP cleaning system is suitable for liquid material: Paste ketchup, syrup, peanut butter, shampoo, pizza sauce, honey, paste, oil, hand sanitizer, mayonnaise, laundry detergent, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Sauce Paste Vertical Packing Machine With CIP Cleaning System

FEATURES

1. Filling packaging machine, suitable for packaging of general liquids and viscous sauces.

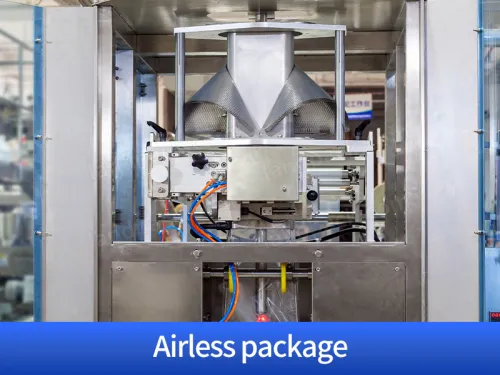

2. Squeeze the film, squeeze the air, and save the material better.

3. Servo control, accurate measurement.

4. Recognizable color code bag making.

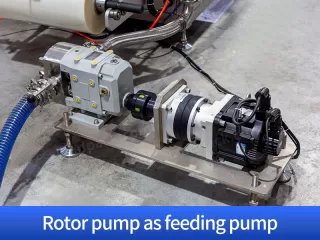

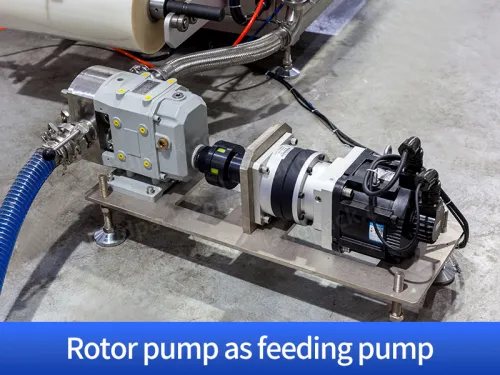

5. Servo rotor pump filling system.

Automatic Sauce Paste Vertical Packing Machine With CIP Cleaning System

WORKFLOW

Piston Pump: Precisely measures and dispenses the sauce.

Bag Former: Shapes the bag for packaging.

Filling: The sauce is filled into the bag.

Sealing: The bag is securely sealed to maintain freshness.

PARAMETER

	Model	LDQM520
	Film width	220-520 mm
	Bag length	200-500 mm
	Bag width	100-250 mm
	Film roll diameter	Max.320mm
	Packaging rate	5-40 bags/min
	Packing Weight	≤ 5 KG
	Film thickness	0.06-0.12 mm
	Power	220V, 50/60Hz, 2.5 kw
	Machine size	121710151343mm
	Weight	About 400kg
