High Production Paste Ketchup Sauce Liquid Multi Track Packing Machine

Introduction:

Automatic multilane liquid sachet packing machine is suitable for many kinds of liquid products, such as paste, ketchup, sauce, honey, oil, jelly, shampoo, facial cream, lotion, mayonnaise, miso, etc.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

Automatic multilane liquid sachet packing machine is suitable for many kinds of liquid products, such as paste, ketchup, sauce, honey, oil, jelly, shampoo, facial cream, lotion, mayonnaise, miso, etc.

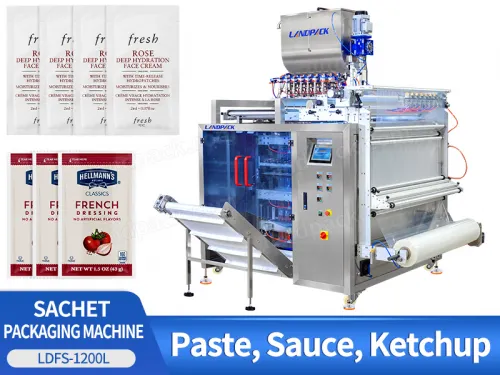

High Production Paste Ketchup Sauce Liquid Multi Track Packing Machine

FEATURES

1. The biggest multi-lane packing machine which can run max roll film width of 1200mm.

2. Air-shaft film roller easy to change the new film roller.

3. Multi heads Ribbon date printer to print date info on each lane.

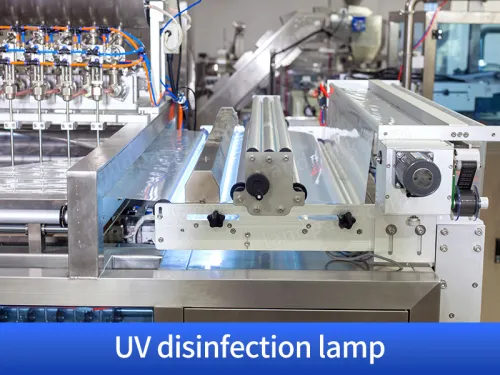

4. UV disinfection lamp to ensure the hygiene of the packaging film.

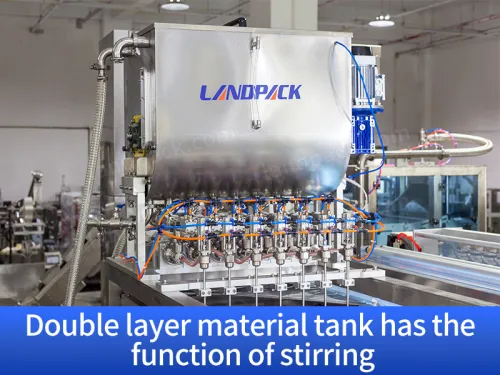

5. Double layer material tank has the function of stirring and heating to ensure the sauce has better fluidity.

6. Anti-leaking filling nozzles have high metering accuracy.

7. Stable pulling film to cut exact position.

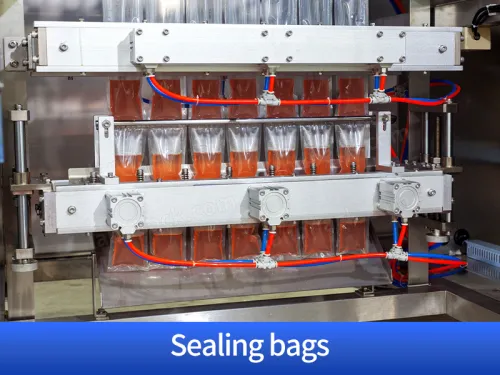

8. Twice horizontal sealing to ensure good sealing.

9. Reliable electrical component.

High Production Paste Ketchup Sauce Liquid Multi Track Packing Machine

WORKFLOW

01

Bag Formation

02

UV disinfection

03

Liquid Filling

04

Sealing

05

Cutting

06

Batch Coding

07

Finished Product Output

PARAMETER

High Production Paste Ketchup Sauce Liquid Multi Track Packing MachineModelLDFS-960L
Production capacityMax. 480 bags/min
Diameter of the film rollmaximum 300mm
Packaging film widththe widest 1200 mm
Outer bag sizeL: 45-120 mm, W: 35-120mm
Air pressure0.5-0.7Mpa
Machine noiseless than 80db(A)decibel
Heating power5.5 Kw
Weight500KG
Machine size1415mm*1686mm*2130mm

Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
