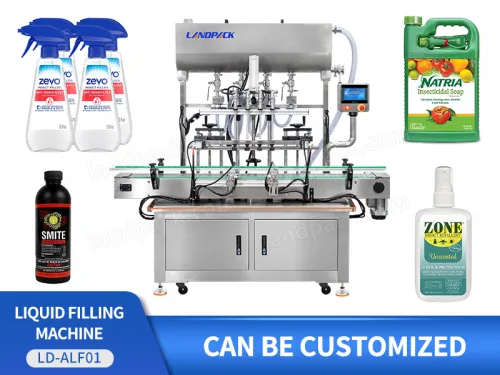

Automatic 4 Heads Gear Pump Pesticide Jar Bottle Filling Machine

Application:

This machine adopts gear pump and rotary valve, suitable for filling all kinds of thick & sticky material such as pesticide, shampoo, body lotion, edible oil, yogurt, tomato paste, chilli sauce, honey, butter, jam etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

Application

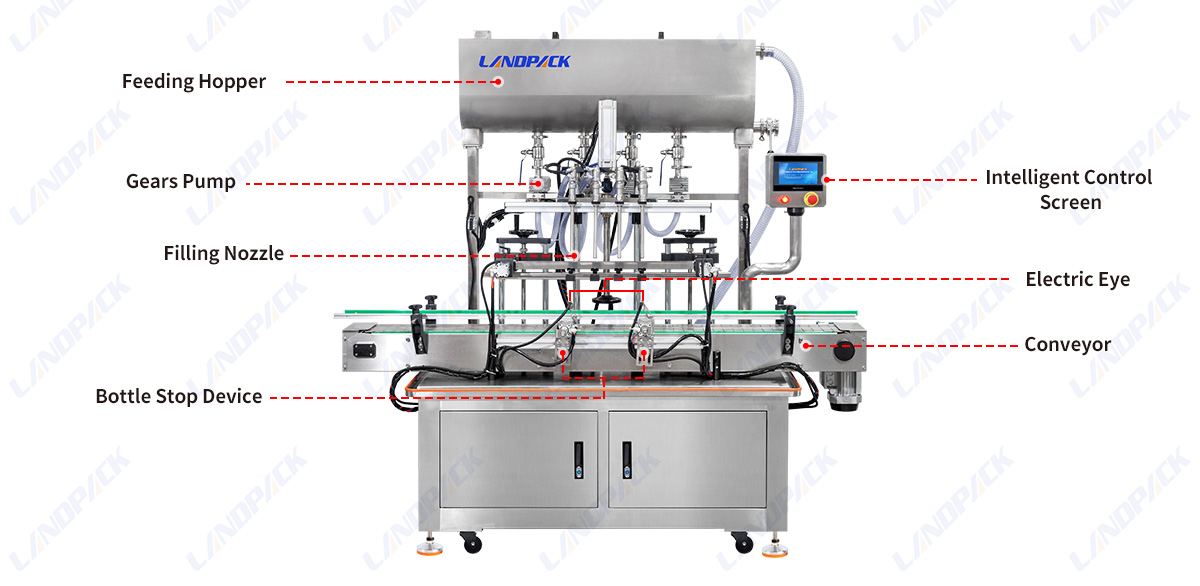

Automatic 4 Heads Gear Pump Pesticide Jar Bottle Filling Machine

FEATURES

1.Filling liquids with relatively good fluidity, 50ml-5L, can be easily filled in large volumes.

2.Servo controlled filling volume and accurate filling.

3.The overall structure is stainless steel 304 food grade and easy to clean.

4.The screen operation is simple and user-friendly.

Automatic 4 Heads Gear Pump Pesticide Jar Bottle Filling Machine

PARAMETER

4 Heads Gear Pump Filling Machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)
