Applications

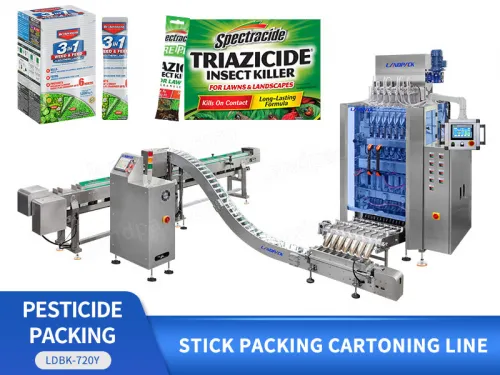

Automatic High Speed Multi Lane Pesticide Liquid Stick Cartoning Packing Machine Line

Introduction:

This machine is suitable for all kinds of paste, viscous liquid sachet, or stick packing, such as pesticide, jam, chili sauce, honey, pizza sauce, peanut butter, tartar sauce, chocolate sauce, chili sauce, cream, liquid butter, juice, shower gel, shampoo, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic High Speed Multi Lane Pesticide Liquid Stick Cartoning Packing Machine Line

FEATURES

1. Automatically performs tasks such as measuring, bag making, filling, sealing, batch number printing, cutting, and counting.

2. Features an automatic slitting film system for simultaneous multi-line row and bag sealing.

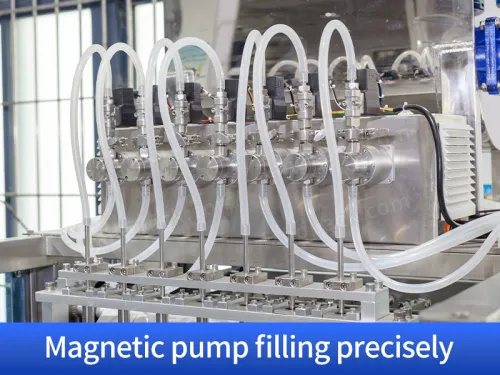

3. Magnetic pump accurate measurement, error control within ±0.5ml, easy to clean.

4. Automatic count, no material stop count and alarm.

5. An intelligent PLC control system ensures stable machine operation, with easy and fast operation.

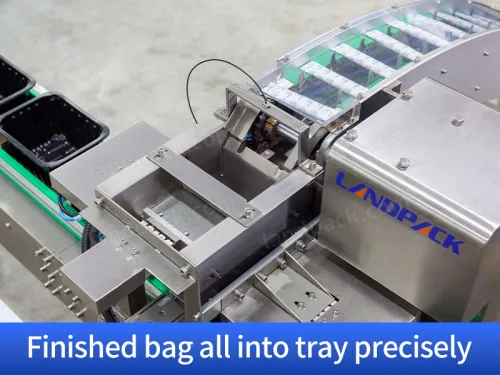

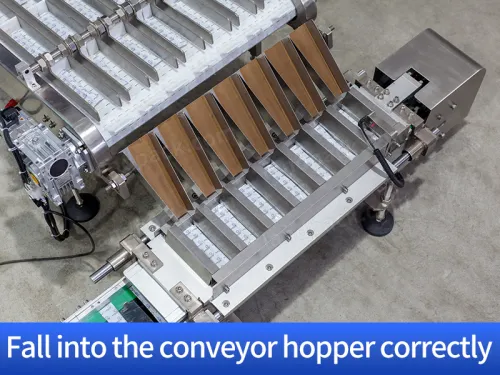

6. The finished product conveying track is seamlessly connected with the ramp conveyor belt to ensure that each product falls into the track accurately.

Automatic High Speed Multi Lane Pesticide Liquid Stick Cartoning Packing Machine Line

WORKFLOW

Bag Formation

Liquid Filling

Sealing

Cutting

Batch Coding

Counting

Cartoning

Finished Product Output

PARAMETER

Multi-Lane Pesticide Packaging Machines Parameter
Model	LD-480Y	LD-720Y	LD-960Y
Track Number	4-6 Track	4-10 Track	4-12 Track
Filling Method	1. Piston pump; 2. Peristaltic Pump
Capacity	Max.40 cycles/min
Sachet Size	L: 45-120mm; W: 35-60mm	L: 45-120mm; W: 35-90mm	L: 45-120mm; W: 35-120mm
Film Width & Thickness	Max.480mm; 0.07-0.1mm	Max.720mm; 0.07-0.1mm	Max.960mm; 0.07-0.1mm
Sealing Type	3/4 sides sealing	3/4 sides sealing	3/4 sides sealing
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa, 0.8m³/min, 2.8kw	0.8 mpa, 0.8m³/min, 4.1kw	0.8 mpa, 0.8m³/min, 5.5kw
DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg	141516862130mm; 500kg
