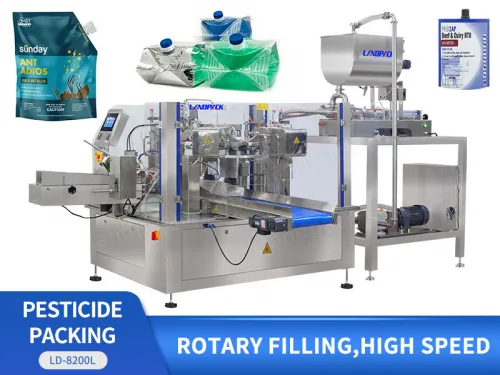

Automatic Liquid Pesticide Rotary Packing Machine Doypack Filling And Sealing Machine

Introduction:

Automatic sauce rotary pouch doypack filling and sealing machine, it suitable for liquid: pesticide, sauce, salad dressing, chili sauce, jam, hand sanitizer, detergent, fruit juice, ketchup, honey, sunflower oil, tomato sauce, peanut butter, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Liquid Pesticide Rotary Packing Machine Doypack Filling And Sealing Machine

FEATURES

1. Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.

2. The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch.

3. Automatic checking system can check bag situation, filling and sealing situation.

4. The system shows: no bag feeding, no bag opening/opening error, no filling and no sealing.

5. Modular heating, temperature control more accurate, heating fault have alarm prompt.

6. Machine use preformed bags & packaging design is perfect & good sealing quality to improve the quaity and grade of the product.

Automatic Liquid Pesticide Rotary Packing Machine Doypack Filling And Sealing Machine

WORKFLOW

Piston metering device

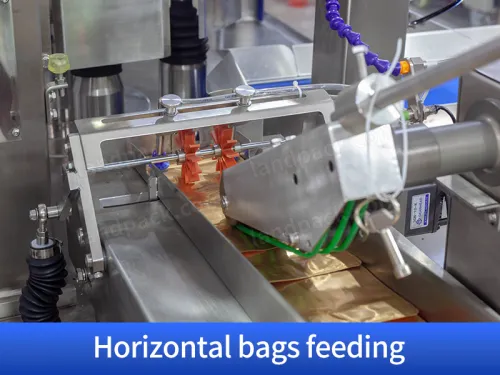

Horizontal bags feeding - date printing

Zip lock openning

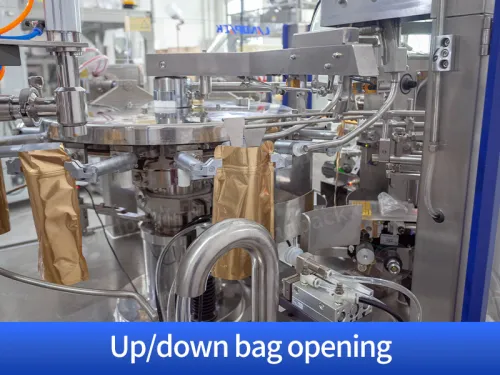

Up/down bag opening

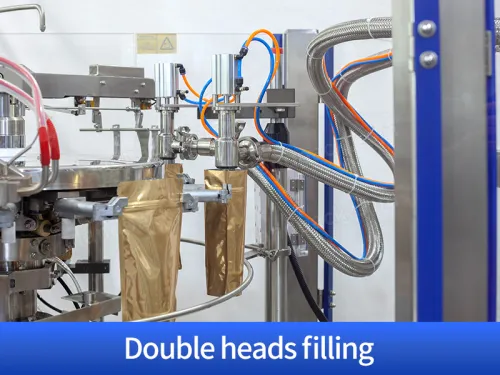

Double heads filling

Twice heating sealing

Finished product ouput

PARAMETER

			Rotary Pesticide Premade Pouch Packing Machine
			Model	LD-8200LS/ 8240LS/ 8300LS
			Bag Size	W: 100-300mm L: 100-450mm
			Filling Volume	10-2500g (Depending on type of products)
			Capacity	25-60 bags/min (The speed depends on type of products and packaging material used)
			Package Accuracy	Error≤±1%
			Compress Air Requirement	≥0.8m³/min supply by user
