Application:
Automatic 8 Heads Pesticide Bottle/ Jar Filling Machine Line With Capping Labeling Machine is suitable for liquid material: pesticide, shampoo, mayonnaise, ketchup, chocolate sauce, syrup, peanut butter, pizza sauce, honey, paste, oil, hand sanitizer, laundry detergent, etc.
Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity
VIDEOS
Application
Automatic 8 Heads Pesticide Bottle/ Jar Filling Machine Line With Capping Labeling Machine is suitable for liquid material: pesticide, shampoo, mayonnaise, ketchup, chocolate sauce, syrup, peanut butter, pizza sauce, honey, paste, oil, hand sanitizer, laundry detergent, etc.
FEATURES
1. Servo motor drives the piston cylinder, filling accuracy is high, filling speed is fast, filling performance is steady, is especially suitable for filling of viscous liquid.
2. PLC programmable control system, one button to adjust the filling amount, one button to calibrate the filling amount, the operation is quite simple.
3. Servo control filling, high precision.
4. PLC control, humanized interface.
5. Suitable for filling 100ml-5L large-capacity liquid product.

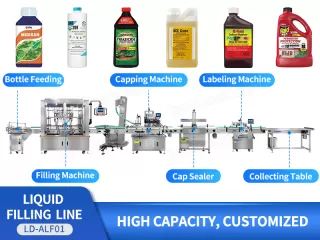

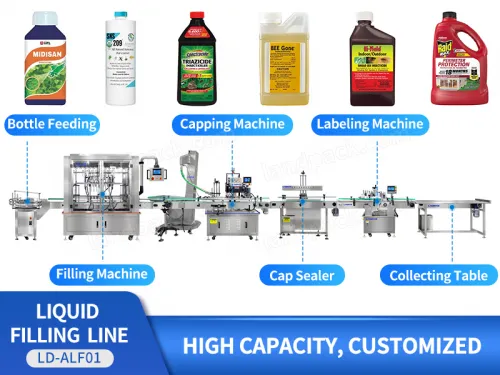

WORKFLOW
Empty Bottle Feeder

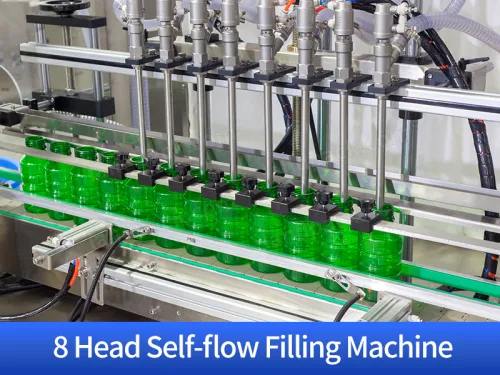

8 Heads Self-flow Filling
Capping
Foil Sealing
Labeling
Collecting Table
PARAMETER

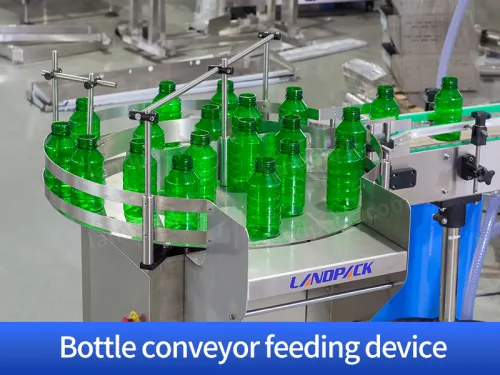

Automatic Bottle feeder | ||||
Machine Model | LD-LP800N | |||
Power Supply | 220V/110V, 50-60Hz, 200W | |||
Turntable Diameter | 800mm | |||
Suitable Bottle Diameter | 20-100mm | |||
Suitable Bottle Height | 30-320mm | |||
Working Speed | 40-60bottles/min(depending on bottle size) | |||
Package Size | 1230*1010*1260mm | |||
Gross Weight | 141kg |
Bottle Liquid filling machine | |||||||
Model | LFZ-04 | LFZ-06 | LFZ-08 | LFZ-10 | |||
Filling Range | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) | |||
Production Speed | <15-25 bottles/min | <20-35 bottles/min | <30-40 bottles/min | <40-50 bottles/min | |||
Measurement Accuracy | ±1% | ±1% | ±1% | ±1% | |||
Power | 2KW | 2.5KW | 3.5KW | 5KW | |||
Voltage | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz | |||
Air consumption | 0.6-8Mpa | 0.6-8Mpa | 0.6-8Mpa | 0.6-8Mpa | |||
Weight | 600kg | 650kg | 800kg | 800kg | |||
Dimension | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) |

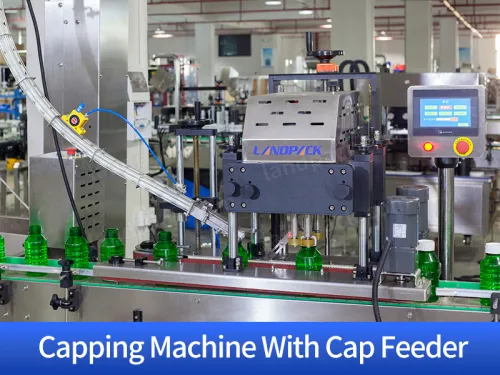

Autoamtic capping machine | ||||||
Model | LFX-JX-01(Four wheel capping) | LFX-GS-150(Eight wheel capping) | LFX-GS-250(Six wheel capping) | |||
Capacity | 20-50Bottles/min | 40-100Bottles/min | 30-80Bottles/min | |||
Bottle cap diameter | Φ22mm-Φ80mm(Could be customized) | Φ18mm-Φ80mm(Could be customized) | Φ18mm-Φ80mm(Could be customized) | |||
Bottle diameter | Φ35mm-Φ140mm(Could be customized) | Φ35mm-Φ140mm(Could be customized) | Φ35mm-Φ140mm(Could be customized) | |||
Bottle sealing height | 38mm-300mm(Could be customized) | 38mm-300mm(Could be customized) | 38mm-300mm(Could be customized) | |||
Power | 1.5KW | 2KW | 1.5KW | |||
Voltage | 220V、50HZ | 220V、50HZ | 220V、50HZ | |||
Air pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.5-0.7Mpa | |||
weight | 250kg | 350kg | 300kg | |||
Dimensions | H3000*W800*L1600mm | H3120*W1544*L2122 | H3100*W1244*L2122 |

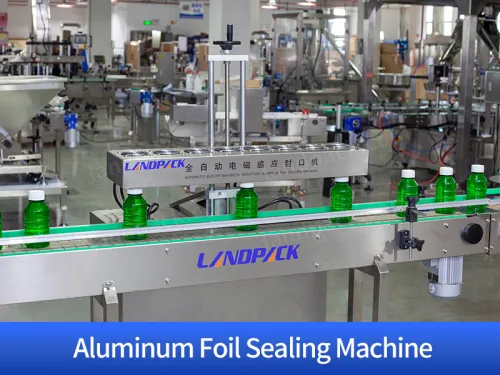

Aluminum foil sealing machine | |||||
Model | LD-ZS(Double Heads Aluminum Foil Sealing) | LF-LB-2000(Single Heads Aluminum Foil Sealing) | |||
Applicable bottle diameter | Φ10-200mm(Could be customized) | Φ10-200mm(Could be customized) | |||
Applicable bottle height | H:40-300mm(Could be customized) | H:40-300mm(Could be customized) | |||
Speed | 0-30bottle/min | 0-10bottle/min | |||
Bottle material | Glass, ceramics, plastics, metals | Glass, ceramics, plastics, metals | |||
Voltage | 220V,50HZ | 220V,50HZ | |||
Power | 1500W | 1200W | |||
Dimension | 1500*800*1750mm | 1200*600*1550mm |

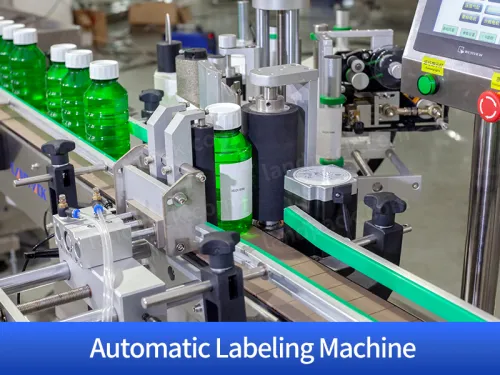

Automatic Labeling Machine | |||||
Model | LFT-LG-100(Low speed labeling) | LFT-GS-100(High speed labeling) | |||
Label length | 20mm~300mm | 20mm~300mm | |||
Label width/height | 20mm~200mm(can be customized) | 20mm~200mm(can be customized) | |||
Bottle width | 30-150mm(can be customized) | 30-150mm(can be customized) | |||
Roll Label outer diameter | 300mm | 300mm | |||
Roll Label inner diameter | 76mm | 76mm | |||
Accuracy | ±1mm | ±1mm | |||
Label speed | 40-100pcs/min | 60-120pcs/min | |||
Conveyor speed | 5~25m/min | 15~20m/min | |||
Suitable label type | Adhesive sticker label(transparent label need customized) | Adhesive sticker label(transparent label need customized) | |||
Working air pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | |||
Voltage | 220V can be customized 4KW | 220V can be customized 4KW | |||
Weight | 350KG | 450KG | |||
Overall dimension | 3000mm×1450mm×1950mm | 3050mm×1550mm×1950mm |
I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
