Applications

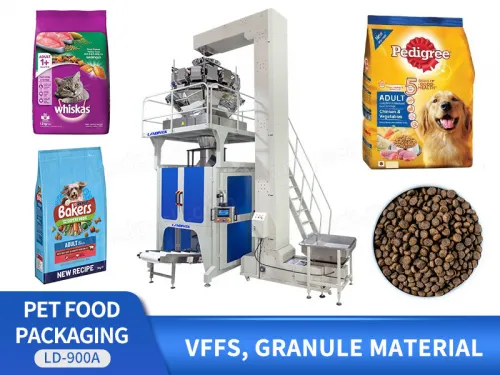

Automatic Pet Food Cat Litter Vertical Form Fill Seal Packing Packaging Machine

Application:

Suitable for weighing packaging of 5-15 kg granular products, such as dog food, cat litter, cat food, fish food and other granular pet food packaging.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Suitable for weighing packaging of 5-15 kg granular products, such as dog food, cat litter, cat food, fish food and other granular pet food packaging.

Automatic Pet Food Cat Litter Vertical Form Fill Seal Packing Packaging Machine

FEATURES

1. Multi-head combined weigher, improve metering speed and accuracy.

2. 7inch touch screen, easy operation and multiple language for choice.

3. Double sever motors, drawing film position accurately, and the speed is faster.

4. Imported PLC system, machine performance is stable and easy for parameters adjusting.

5. Separate PID temperature controller, suitable for various packing materials.

6. Multi-union roll film pulling system make film running more smooth.

7. Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.

8. Sophisticated sealing framework achieve the consistency of bag sealing and cutting.

9. Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing.

10. Low loss, labor saving, easy for operation and maintenance.

Automatic Big Volume Popcorn Vertical VFFS Packing Packaging Machine

WORKFLOW

Z Type Buckets Feeding

Multi Heads Weigher

Pouch Packing

Finished Product Output

PARAMETER

Model	LD-420	LD-520	LD-720	LD-900
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L
