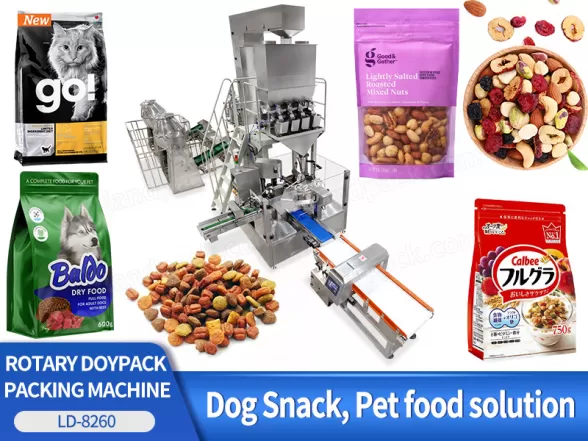

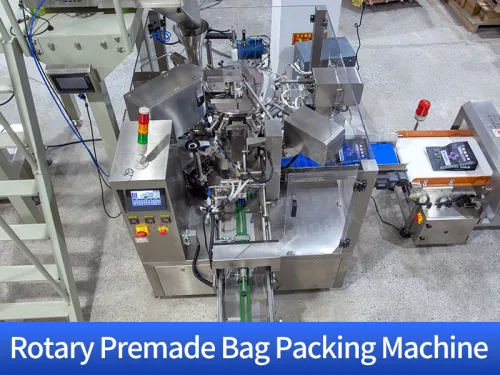

Automatic Rotary Premade Pouch Pet Food Mixing Filling Packaging Machine

Application:

Ideal for weighing, blending, filling, and packaging a wide range of grain, stick, slice, spherical, and irregularly shaped products, this system is perfect for items such as pet food, almonds, cashews, peanuts, pistachios, coffee beans, jerky, nuts, melon seeds, roasted seeds, raisins, cereals, chips, snacks, popcorn, biscuits, candy, jelly, puffed food, and dehydrated vegetables.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

FEATURES

1.Boost Productivity: Lower labor and logistics expenses while increasing output.

2.Superior Packaging Quality: Deliver consistent, high-quality packaging for every product.

3.Enhanced Safety: Reduce workplace hazards and prioritize operator safety.

4.Eco-Friendly Operations: Promote sustainable and environmentally conscious production.

5.Versatile Production: Seamlessly adapt to various product sizes and specifications.

6.Quick Changeover: One-touch adjustments enable fast and efficient product switching with minimal delays.

WORKFLOW

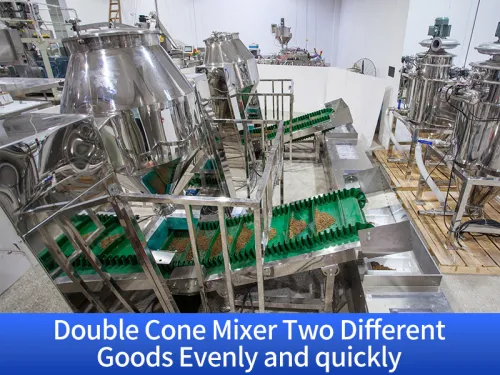

Double Cone Mixer

Conveyor Belt for Feeding

Z type Conveyor Belt Raw Material

4 Head Liters Weigher

Predmade Pouch Feeding

Date Printer

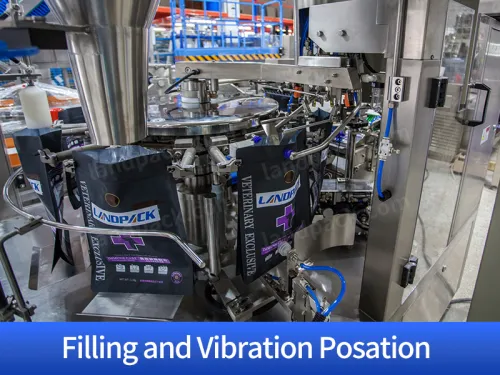

Bag Opening Filling and Sealing

Output of the Finished Bag

PARAMETER

	Rotary Premade Pouch Pet Food Mixing Filling Packaging Machine
	Model	LD-8200/LD-8260
	Packing material	all type of heat sealable performed side seal bags, block bottom, bags, zip-lock recloseable bags, stand-up pouch with or without spout, paper bags, flat pouch, stand-up pouch, zipper pouch, spout pouch, m gusset pouch, paper pouch, aluminium foil pouch, etc.
	size	W：70-200/100-250
	Filling range	10-1000g/20-2500g
	Packing speed	40-60bag/min（speed is determined by the product filling quantity）
	Average precision	≤ ±1%
	Total power	2.5KW
	Dimensions	1900mm X 1570mm X 1700mm（LWH）
	Work flow	giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
	Main standard parts	1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system
