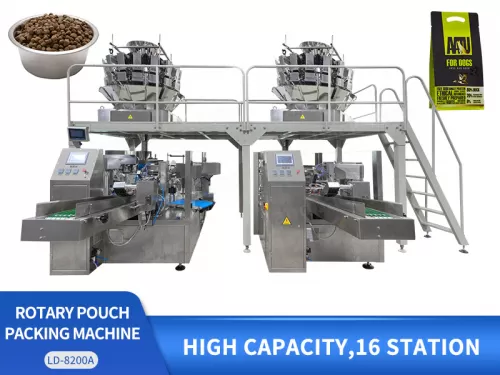

High Efficiency Dog Pet Food Rotary Doypack Packing Packaging machine Line

Application:

It is widely applied to weigh and pack solid & bulk products, such as pet food, candy, cereal, nuts & snacks, cheese, pasta, beans & rice, pet food & treat, popcorn, jerky, dry fruit, coffee and other non-food products.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

High Efficiency Dog Pet Food Rotary Doypack Packing Packaging machine Line

FEATURES

1. Suitable for different premade bags requirements.

2. Fully automatic weighting filling and sealing.

3. Excellent sealing quality.

4. Made of excellent stainless steel materials.

5. Computer PIC control, English display touch screen.

6. Automatic printing production date.

High Efficiency Dog Pet Food Rotary Doypack Packing Packaging machine Line

WORKFLOW

Premade Pouch Feeder

Code Printer

Premade Pouch Open

Automatic Filling

Sealing

Forming And Output Product

PARAMETER

		High Efficiency Dog Pet Food Rotary Doypack Packing Packaging machine Line
		Model	LD-8200/LD-8250
		Packing material	3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
		size	W：70-200/100-250
		Filling range	10-1000g/20-2500g
		Packing speed	40-60bag/min（speed is determined by the product filling quantity）
		Average precision	≤ ±1%
		Total power	2.5KW
		Dimensions	1900mm X 1570mm X 1700mm（LWH）
		Work flow	giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
		Main standard parts	1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system
