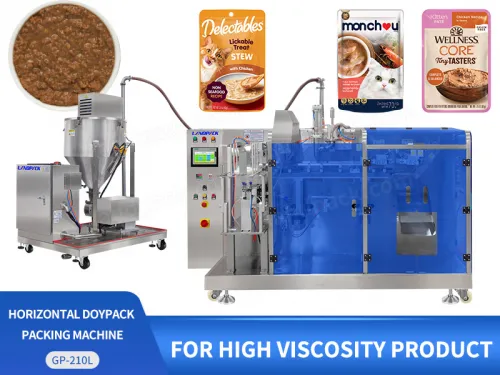

High Viscosity Pet Food Tuna Meat Horizontal Doypack Filling Packing Machine

Application:

It can automatically complete the measurement, packaging and sealing of materials to improve production efficiency. Suitable for high viscosity liquid graunel standing bags, pre-made bags, and zipper bag packaging, such as tuna meat, pet food, juice, cream, jam, laundry detergent, hand soap, sauces, honey, milk, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

High Viscosity Pet Food Tuna Meat Horizontal Doypack Filling Packing Machine

FEATURES

1. Independent Control Box for the Hopper for 8 memory of the Filling capacity.

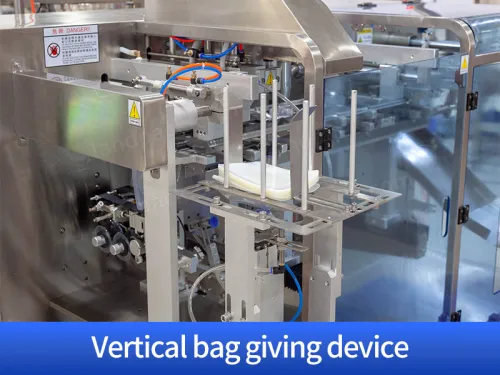

2. Vertical Bag Feeder for more quantity speed.

3. 5-leaf rotor measuring pump for high-viscosity products like tuna meat, honey, and chocolate cream.

4. 100 Liters Heater And stir hopper for easy cleaning.

5. Adopted Simens PLC +Touch screen for easy operation.

6. Customized Irregular Anti-Leakage Filling Nozzle.

7. Second Times Sealing keeps sealing tightly and beautifully.

High Viscosity Pet Food Tuna Meat Horizontal Doypack Filling Packing Machine

WORKFLOW

Giving bag

Pick up the bag(coding)

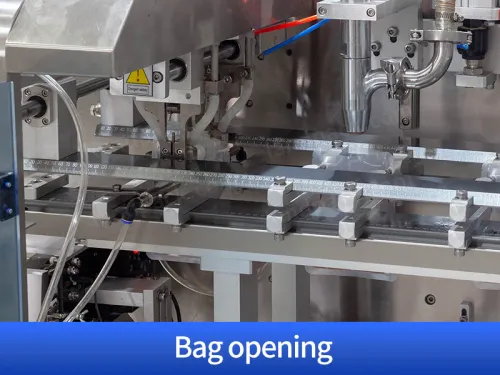

Open the bag up and down

Filling

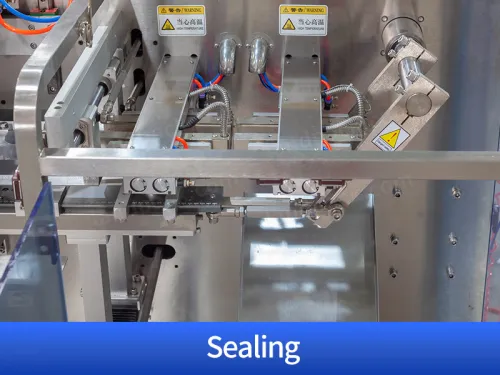

Heating sealing

Output of product

PARAMETER


Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
