Automatic Achar Pickle Fruit Filling Canning And Packaging Line

Application:

The granular liquid filling machine is suitable for filling granular and liquid materials such as pickles, fruit, marinade pickled product, sweet potato, mango pulp, nuts, corn flakes, peanuts, melon seeds, pepper, canned fruit, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Achar Pickle Fruit Filling Canning And Packaging Line

FEATURES

1. Flexible Machine suits for different can size.

2. UV sterilization, the entire line meets food grade requirements.

3. Stable and high speed running.

4. Simultaneously filling fruit pulp and liquid, achieving mixed filling, saving labor, and improving production efficiency.

Automatic Achar Pickle Fruit Filling Canning And Packaging Line

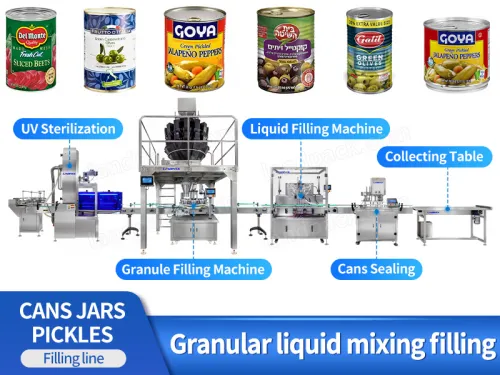

WORKFLOW

1. Bottle Sorting Machine.

2. UV sterilization.

3. Fruit Feeding.

4. Multi-heads weigher for accuracy weighing.

5. Fruit Filling.

6. Juice Filling.

7. Automatic cans sealing.

8. Finished Product Output.

PARAMETER

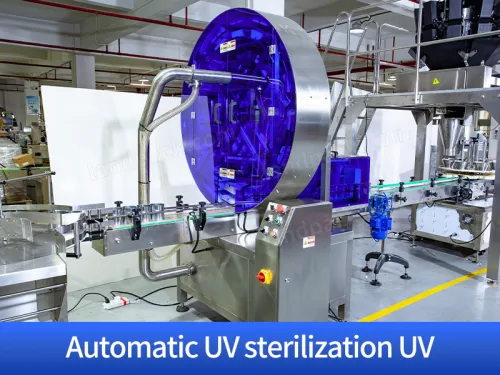

			Automatic UV sterilization UV
			Voltage	220V/50Hz（customized）
			Power	2500W
			Air pressure	0.3-0.5mpa
			Speed	10-50 BPM (can be customized)
			Bottle diameter	76-140mm
			Bottle high	80-200mm
			UV light	7
			Outline dimension	240013002200MM （L×W×H）
			Net weight	350KG

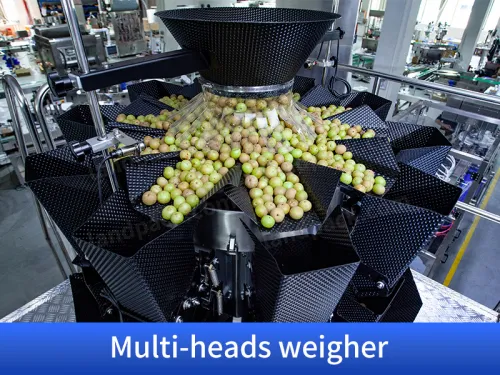

Multi-heads weigher
Model	LD-14	LD-16	LD-12	LD-10	LD-8
Number of weighing heads	14	16	12	10	8
Per weighing range	10-2000g	10-1000G
Weighing Accuracy	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g
Weighing Speed	120bag/min	180bag/min	100bag/min	70bag/min	60bag/min
Hopper capacity	1300ml	1300ml	1700ml	1300ml	1300ml
Hopper type	Double row unrecorded bucket	Double row unrecorded bucket	single row bucket	Double row unrecorded bucket	Double row unrecorded bucket
Product default mode	99 modes
Control element	10.4-inch LCD aiming screen

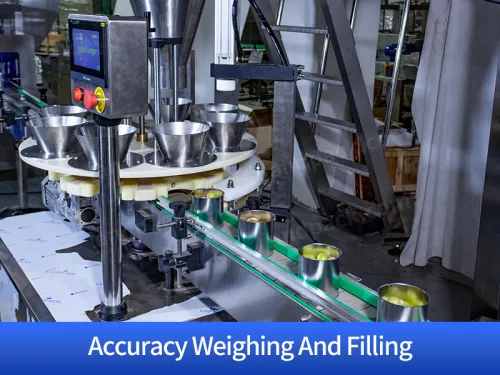

			Accuracy Weighing And Filling
			Model	LF-ZP-10
			Output	20-30 bottles/min
			Bottle diameter	Φ30mm-Φ135mm (customizable)
			Bottle height	40mm-200mm (customizable)
			Power	750W,220V,50Hz
			Weight	200kg

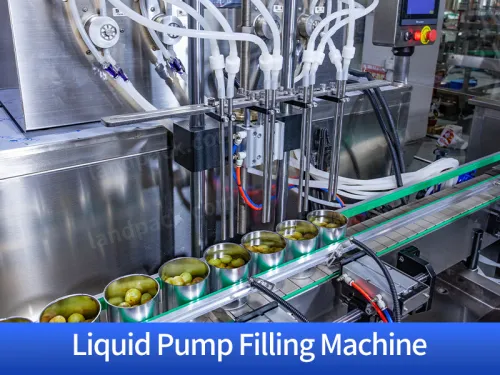

			Liquid Pump Filling Machine
			Model	ZS-YTZL4A
			Filling head	4 Head
			Air pressure	0.5-0.8MPa
			Liquid level accuracy	±1mm
			Viscosity range	≤20Cps (static viscosity)
			Working Speed	20-40 Bottles/Minute
			Machine size	About 150011501530mm
			Machine weight	About 278kg
			Package size	About 166013101670mm

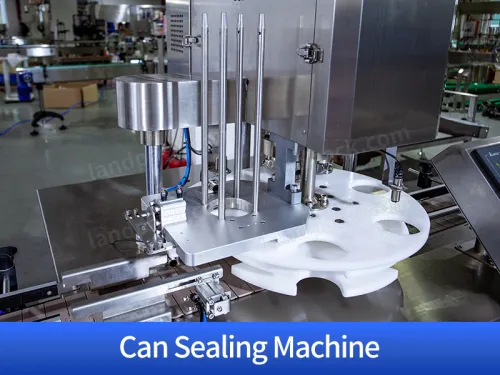

			Can Sealing Machine
			Number of sealed cans	1
			Sealing speed	15-24 bottles/minute
			Can sealing height	50-200mm
			Applicable bottle diameter	50-126mm
			Power	0.55KW
			Weight	130KG
			Size	4006001450mm
			Voltage	220V, 50/60Hz
