Automatic Marinade Mix Pickled Product Plastic Bottles Weighing Filling Machine Line

Application:

Suitable for various granular products such as pickles, kimchi, pickle cucumber, kelp,pickle, kimchi, jam, ketchup, ghee, peanut butter, chili sauce, chili oil, meat sauce, caviar, pickled peppers, pickled radish, pickled ginger, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

FEATURES

1. Filling granule liquid at the same time, one line fills different products.

2. Full automatic solution, to realize feeding, weighing, filling, foil sealing, capping, inkjet printer, and labeling.

3. Save cost, and improve production capacity.

Automatic Marinade Mix Pickled Product Plastic Bottles Weighing Filling Machine Line

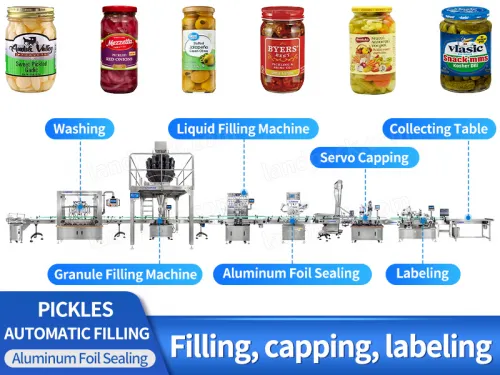

WORKFLOW

Automatic Bottle Washing

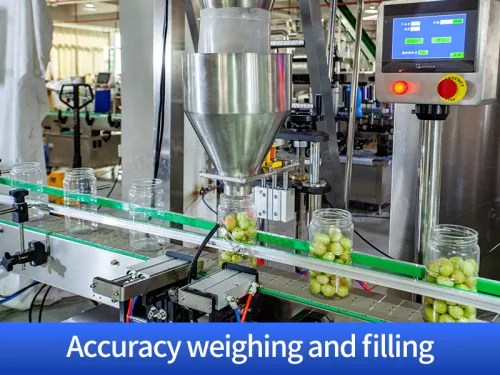

Automatic Granule Filling into Bottle

Automatic Liquid Filling

Aluminum Foil Sealing

Automatic Servo Capping

Automatic Labeling

PARAMETER

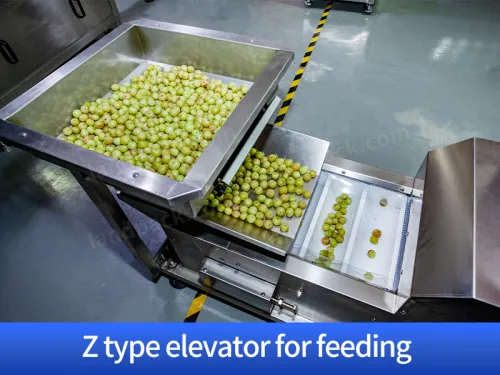

			Z Type Elevator For Feeding
			Machine Model	LD-LP800N
			Power Supply	220V/110V, 50-60Hz, 200W
			Turntable Diameter	800mm
			Suitable Bottle Diameter	20-100mm
			Suitable Bottle Height	30-320mm
			Working Speed	40-60bottles/min(depending on bottle size)
			Package Size	123010101260mm
			Gross Weight	141kg

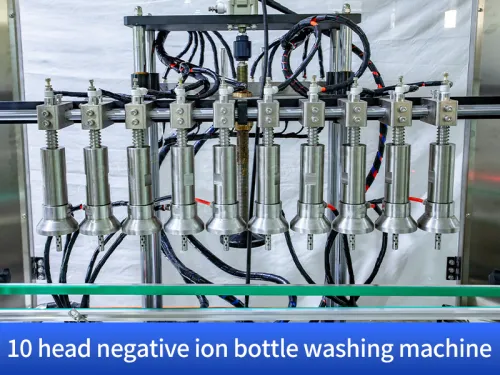

			Automatic bottle washing machine
			Machine Model	LD-LP600W
			Power Supply	220V/110V, 50-60Hz, 200W
			Turntable Diameter	800mm（Could be customized）
			Suitable Bottle Diameter	20-100mm
			Suitable Bottle Height	30-320mm
			Working Speed	20-50bottles/min(（Could be customized）)
			Package Size	123012101260mm
			Gross Weight	880kg

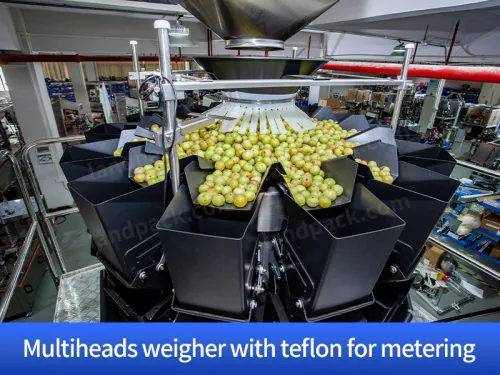

Multi-heads weigher
Model	LD-14	LD-16	LD-12	LD-10
Number of weighing heads	14	16	12	10
Per weighing range	10-2000g	10-1000G
Weighing Accuracy	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g
Weighing Speed	120bag/min	180bag/min	100bag/min	70bag/min
Hopper capacity	1300ml	1300ml	1700ml	1300ml
Hopper type	Double row unrecorded bucket	Double row unrecorded bucket	single row bucket	Double row unrecorded bucket
Product default mode	99 modes
Control element	10.4-inch LCD aiming screen

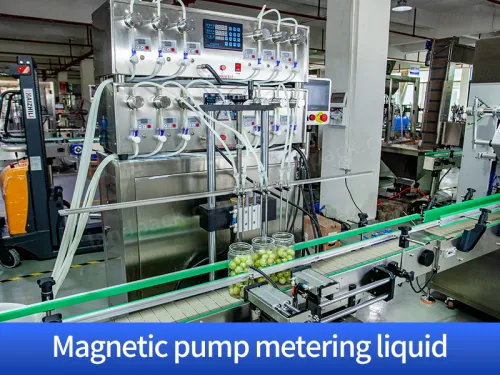

Bottle Liquid filling machine
Model	LFZ-04	LFZ-06
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min
Measurement Accuracy	±1%	±1%
Power	2KW	2.5KW
Voltage	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)

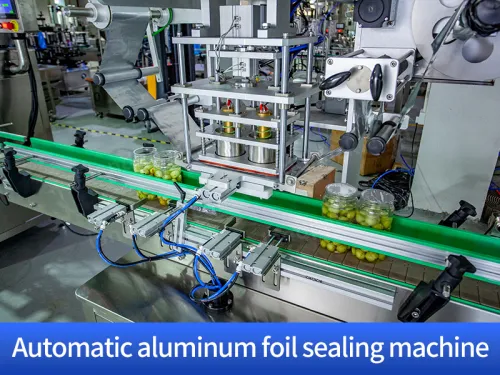

Double Heads Aluminum Foil Sealing Machinefor heat sealing foil on top of the bottle
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm

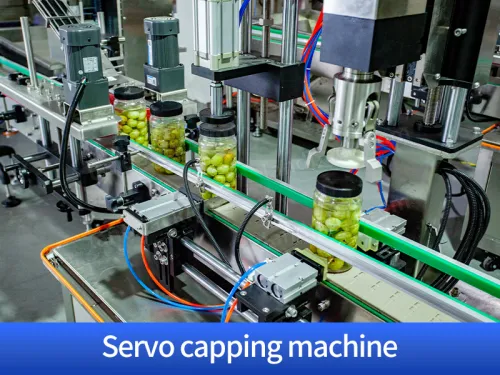

Autoamtic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm

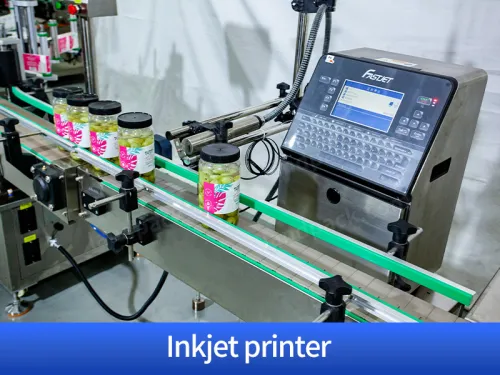

			Inkjet Printer Machine
			Power supply	220V 60Hz
			Printing speed	1024 seconds (5*7)
			Printing materials	paper,plastic products,pipes,food bags,metal,glass, paper cups,etc.
			Store information	The system can store 1000 print information
			Machine size	length 370mm width 260mm height 500mm
			Ink consumption	70 million words per print (5*7)
			Machine weight	21kg
			Package size	560350570mm
