Pickles Packing Filling Machine / Line

Home > Applications > Liquid Filling Machine / Line > Pickles Packing Filling Machine / Line > Automatic Pickled Cucumber Carrot Horizontal Doypack Premade Pouch Packing Machine

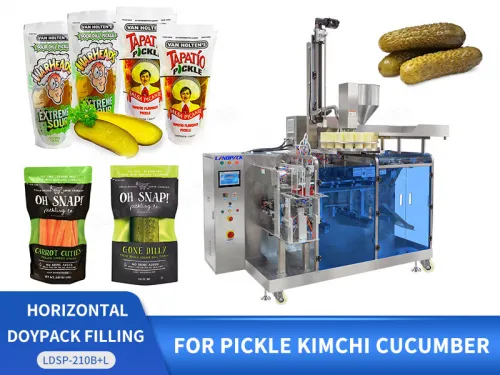

Automatic Pickled Cucumber Carrot Horizontal Doypack Premade Pouch Packing Machine

Introduction:

Suitable for packing pickles products into stand-up pouch doypack pouches premade pouches such as pickles, pickled cucumber, carrot, kimchi, kelp, chili, etc.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

Suitable for packing pickles products into stand-up pouch doypack pouches premade pouches such as pickles, pickled cucumber, carrot, kimchi, kelp, chili, etc.

Automatic Pickled Cucumber Carrot Horizontal Doypack Premade Pouch Packing Machine

FEATURES

1. Flexible Machine suits for different bag sizes.

2. Stable and high speed running.

3. Simultaneously filling cucumber and sauce liquid, achieving mixed filling, saving labor, and improving production efficiency.

Automatic Pickled Cucumber Carrot Horizontal Doypack Premade Pouch Packing Machine

WORKFLOW

01

Bagging

02

Opening

03

Cucumber Cutting

04

Seasoning Sauce Filling

05

Sealing

06

Finished Product Output

PARAMETER

Automatic Pickled Cucumber Carrot Horizontal Doypack Premade Pouch Packing MachineAutomatic Pickled Doypack Premade Pouch Packing Machine
ModelLDSP-210B+L
Packing material3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
sizeW: 100-210 mm
Filling range20-1000g
Packing speed20-50 bags/min(speed is determined by the product filling quantity)
Average precision≤ ±1%
Total power2.5KW
Weight900 KG
Main standard parts1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperature controller 8. Vacuum pump 9. Inverter 10. Output system

Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
