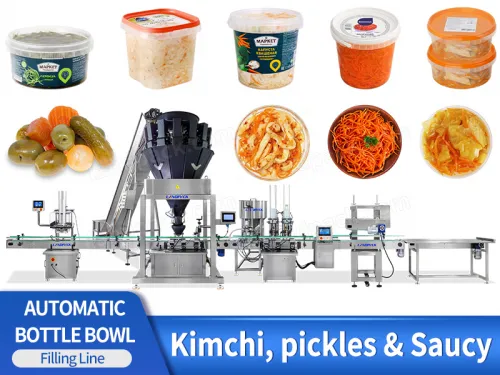

Automatic Pickles Achar Bucket Bottle Packing Machine Pickle Filling Machine Line

Application:

This packaging line is highly adaptable, capable of processing both solid and liquid items, such as pickles, canned fruit, spicy pickles, mixed vegetables, mango, pear, garlic, ginger, pickled salads, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This packaging line is highly adaptable, capable of processing both solid and liquid items, making it an ideal solution for diverse food industry needs.

1.Pickled Vegetables and Fruits:

Pickles, spicy pickles, mixed vegetables, mango, pear, garlic, ginger.

2.Sauces and Condiments:

Pickle juice, vinegar, garlic sauce, chutney, relish.

3.Fermented and Marinated Products:

Kimchi, sauerkraut, mushrooms, beans, onions.

3.Ready-to-Eat Salads:

Coleslaw, pickled salads.

4.Specialty Products:

Gourmet pickles, organic pickles, gluten-free pickles.

5.Additional Items:

Beets, carrots, herb marinades, fermented snacks.

Automatic Pickles Achar Bucket Bottle Packing Machine Pickle Filling Machine Line

FEATURES

1.Utilizes a specialized pickle auger screw weighing system with dimple-patterned, Teflon-coated plates to prevent material adhesion and ensure smooth operation.

2.Features a pickle chain plate feeding belt with a separate sauce collection pump for a secondary liquid filler, minimizing material waste and enhancing efficiency.

3.Includes a bowl feeder with a protective enclosure, ensuring both operator safety and high hygiene standards during processing.

4.Offers excellent adaptability for filling various cup sizes, with adjustable filling hopper and nozzle height for precise customization.

5.Incorporates labor-saving innovations like a bowl feeder and cap feeder, streamlining production and reducing manual effort.

6.Incorporates a smart sensor system for real-time monitoring, ensuring consistent fill levels and reducing overfill or spillage during operation.

Automatic Pickles Achar Bucket Bottle Packing Machine Pickle Filling Machine Line

WORKFLOW

1. Pickle feeding belt

2. Pickle Auger Screw Weigher

3. Bowl feeder

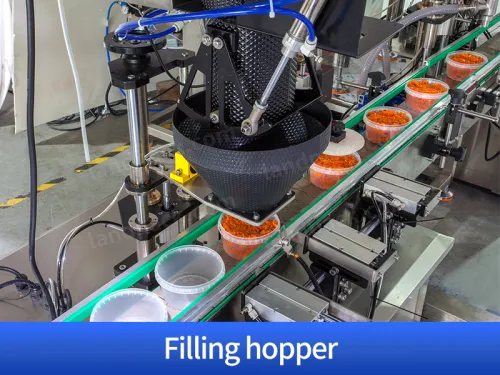

4. Filling hopper

5. Pusher panel device (air exhaust)

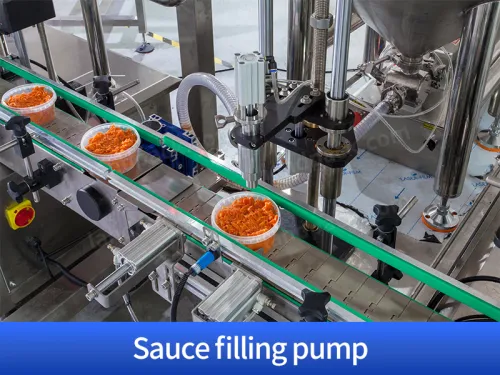

6. Sauce filling pump

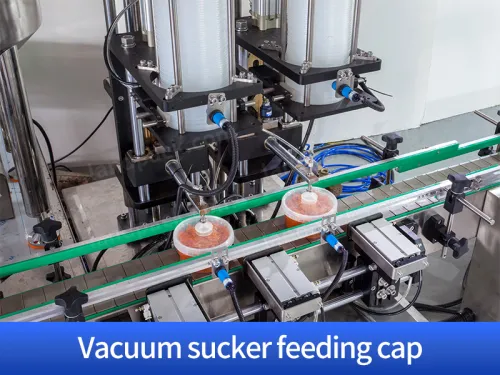

7. Vacuum sucker feeding cap

8. Chain plate belt type capping machine

PARAMETER

Part 1 of Filling Line - Automatic Containers Feeding Machine
	Name	Automatic screw feed bucket machine
	Working pressure（MPa）	0.6～0.8MPa
	Working power supply（V）	monophase 220V 50Hz
	Gross power(KW)	400W
	weight（kg）	about 200KG
	Overall dimension(mm)	About 9006381693
	speed(rpm)	<60rpm
Part 2 of Filling Line - 14 head combined screw weighing + linear filling machine
	Model	LD-10		LD-14
	Metering head	10		14
	Single weighing range	10-1000g		10-2000g
	Weighing accuracy	±0.3-1.5g		±0.3-1.5g
	Weighing speed	70PCS/min		120PCS/min
	Hopper capacity	1300ml		130极速版0ml
	Hopper form	Double row no memory bucket		Double row no memory bucket
	Product default mode	99 kinds		99 kinds
	Control element	Fluorescent display tube (256*64 point 5.7 inch)	10.4 inch LCD screen
Part 3 of Filling Line - Single-head piston metering liquid filling machine
	Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
	Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
	Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
	Measurement Accuracy	±1%	±1%	±1%	±1%
	Power	2KW	2.5KW	3.5KW	5KW
	Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
	Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
	Weight	600kg	650kg	800kg	800kg
	Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)
Part 4 of Filling Line - Double station automatic cap suction machine machine
	Model	LD-VTYG01
	voltage	110V/220V
	Capacity	15-18 bottles/min
	Applicable Container	Length:40-110mm
		Width:40-110mm
		Height:40-110mm
	Applicable Lid	Customizable
	Packing Size	About 20809401730mm
	Gross Weight	About 261kg
Part 5 of Filling Line - Automatic Caps Pressing Machine
	Cover method	Elevator cap sorting
	Capping form	Chain piece type capping
	Application bottle	According to customer's product
	Capping speed	30-50 bottles/min
	Capping voltage	1ph AC 220V 50/60Hz
	Air pressure	0.6-0.8MPa
	Dimension	1300(L)850(W)1660(H)mm
	Packing size	1400(L)950(W)1760(H)mm
	Machine weight	About 400KG
