Fully Automatic Sauce Pickle Glass Jar Filling Canning And Labeling Machine Line

Application:

This filling production line is applicable to the automatic packaging of various sauces, pickled vegetables, and other products with quantitative mixings of granular liquid, such as pickles, pickle cucumbers, pickled garlic, and sauces containing large granules. Suitable for various bottles, cans, jars, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Fully Automatic Sauce Pickle Glass Jar Filling Canning And Labeling Machine Line

FEATURES

1. Piston-type metering cylinder, servo-driven, suitable for filling thick sauce with large particles;

2. The special anti-drip filling head and enlarged rotary valve for sauce will not block or leak when filling large-grain sauce;

3. The design of horizontal stirring and horizontal pushing improves the filling speed and solves the problem of uneven layering of oil;

4. With no bottle no filling function, liquid level automatic control feeding;

5. The packing line is mainly suitable for packing all kinds of liquid, fluid, and paste material, such as pickles, edible oil, sauce, daily necessities, medicine, etc;

6. Complete set, the whole line is fully automatic, saving labor.

Automatic Ghee Cooking Oil Sauce Jar Bottles Filling Capping Labeling Machine Line

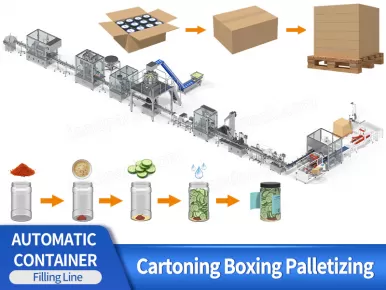

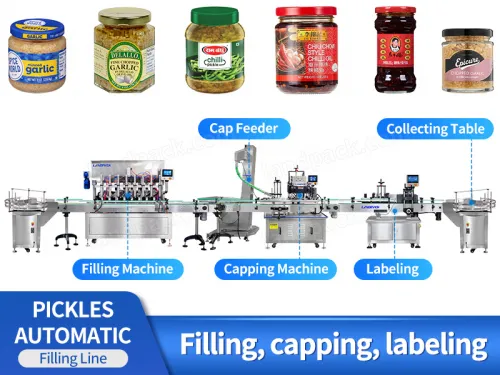

WORKFLOW

Automatic Bottle Feeder

Automatic Pistons Filling

Automatic Bottle Capping

Automatic Bottle Labeling

Finished Product Output

PARAMETER

			Automatic Bottle feeder
			Machine Model	LD-LP800N
			Power Supply	220V/110V, 50-60Hz, 200W
			Turntable Diameter	800mm
			Suitable Bottle Diameter	20-100mm
			Suitable Bottle Height	30-320mm
			Working Speed	40-60bottles/min(depending on bottle size)
			Package Size	123010101260mm
			Gross Weight	141kg

Bottle Liquid filling machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)

Autoamtic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm
