Automatic Popcorn Pouch Packing Machine With Metal Detector And Weight Selection Scale

Application:

It is suitable for popcorn, various kinds of granule, apple dried fruits, raisin, nuts, peanuts, candies, jerky, candy, chocolate, pet food seeds and such materials in grain or piece like candy, seeds, dry food, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Popcorn Pouch Packing Machine With Metal Detector And Weight Selection Scale

FEATURES

1. Method of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.

2. 7inch touch screen, easy operation and multiple language for choice.

3. Famous brand PLC control system, large touch screen,convenient to operate.

4. With a memory function for storage ten sets of parameters. Easy to change packing product.

5. Separate PID temperature controller, suitable for various packing materials.

6. Multi-union roll film pulling system make film running more smooth.

7. Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.

8. Sophisticated sealing framework achieve the consistency of bag sealing and cutting.

9. Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing.

10.Low loss, labor saving, easy for operation and maintenance.

11.Equipped with a labeling machine, metal detector and a weight selection scale to ensure the safety of packaged products and control weight errors.

Automatic Granule Pouch Packing Machine With Metal Detector And Weight Selection Scale

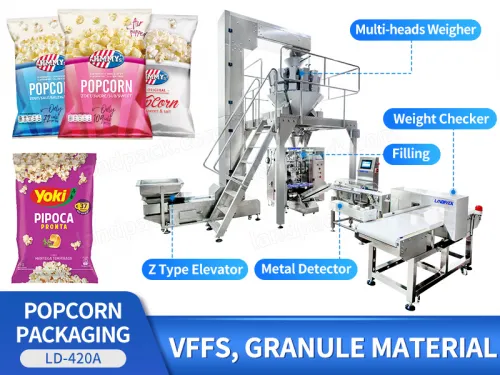

WORKFLOW

Z Type Buckets Feeding

Multi Heads Weigher

Pouch Packing

Automatic Weight Checker

Automatic Metal Checker

PARAMETER

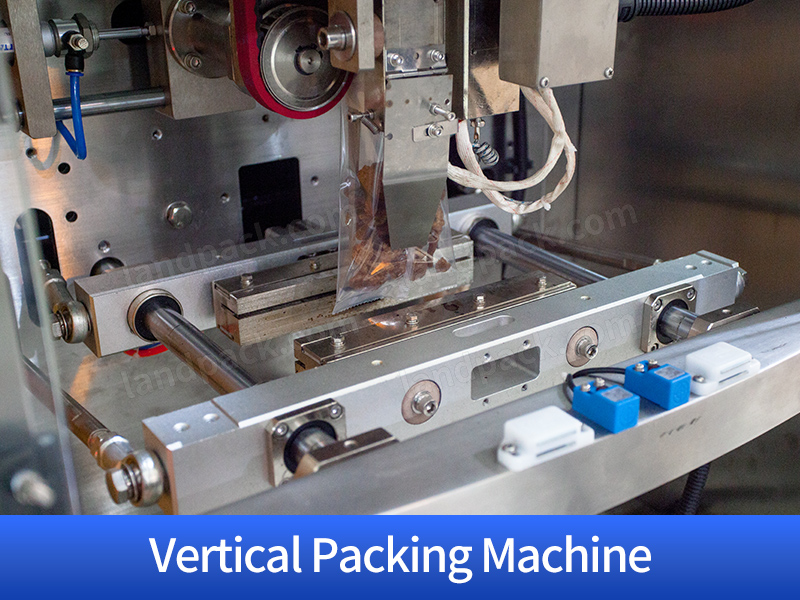

Vertical Packing Machine
Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L

	METAL DETECTOR
	Model	LD-MD1
	Voltage	220V, 50~60Hz
	Power	90W
	Conveyor Width	400mm (Customizable)
	Max Load	15kg
	Detection Height	200mm (Customizable)
	Applicable Metal	Ferrous (φ≥1.2mm),
		non-ferrous (φ≥1.8mm)
		stainless steel (φ≥2.3mm)
	Speed	25-30m/min
	Machine weight	220kg
	Size	13372100cm

	Weight Detector
	Weighing range	5-1000g/10-5000g(Optional or specified)
	Detection object size	L:1-300mm (or customized)
		W:1~220 mm/1-240mm/1-300mm (or customized)
		H:1~100mm/1~150mm (optional or customized)
	Weighing section size	L:400 mm (or customized);w:220/300mm (Optional or specified)
	Touch screen	10.1 inch color TFT touch display
	Minimum scale	0.1g ( Based on Max. weighing range)
	Sorting accuracy	+0.1g~+1g/+ 0.7g~+1.5g (Based on size of weighing area)
	Belt height from ground	680mm~750mm(Or customized height)
	Conveyor belt speed	20m/min fixed speed or 15-30m/min adjustable speed (or customized)
	Material. Surface	stainless steel surface polishing
	Language	Chinese/English (or customized)
	Rejection Method	Sound and light alarm, Air blow type or push rod type rejection(More rejection methods are available)
