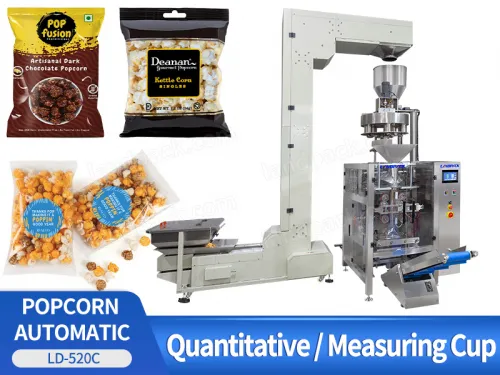

Automatic Popcorn Vertical Pouch Packing Machine Quantitative packaging With Measuring Cup

Application:

Automatic popcorn vertical back sealing bag packing packaging machine is used for packing popcorn, food, tea, herb, dry powder, granules, seeds, grain, wheat ,beans , candy, chocolate, small hardware and components etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Popcorn Vertical Pouch Packing Machine Quantitative packaging With Measuring Cup

FEATURES

1. Low cost high gain, high speed and efficiency.

2. Famous brand PLC control system, large touch screen,convenient to operate.

3. Film drawing down system and horizontal sealing controlled by servo motor.

4. Minimize the loss with complete automatic warn protection function.

5. It can complete feeding, measuring, filling, sealing, date, printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.

6. Method of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.

Automatic Popcorn Vertical Pouch Packing Machine Quantitative packaging With Measuring Cup

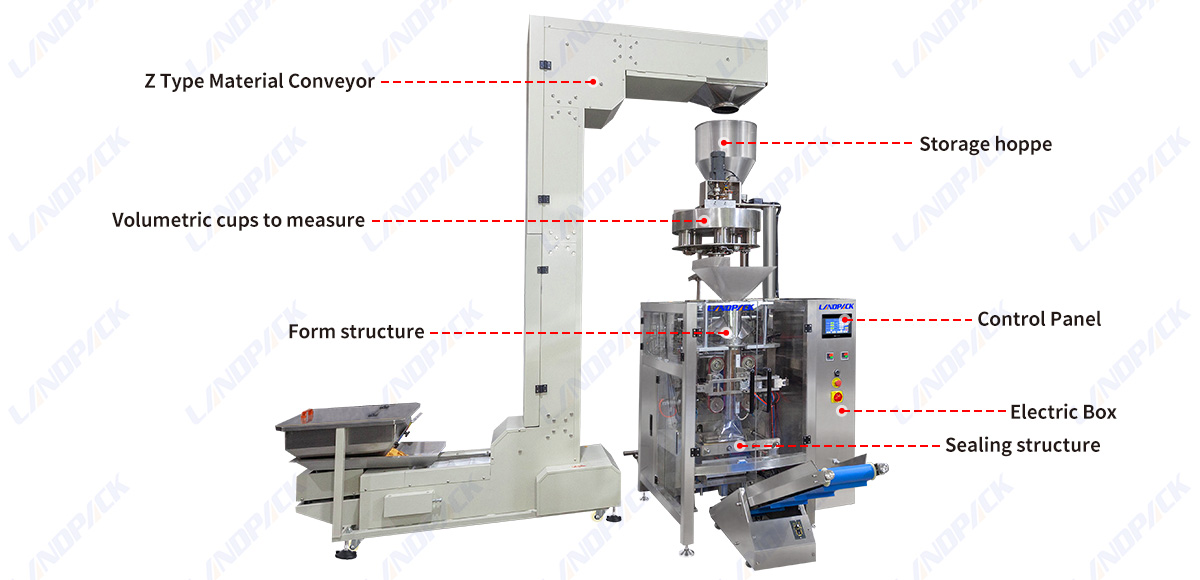

WORKFLOW

Z-type material conveyor

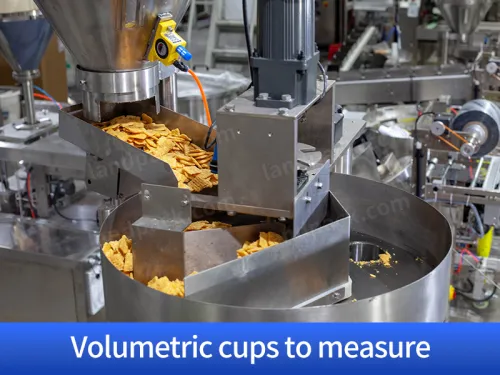

Measuring Cup Quantitative Packaging

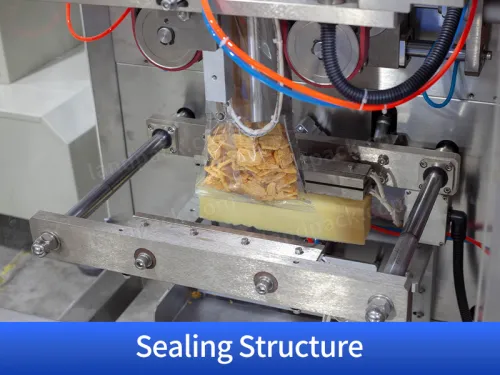

Form and seal the bag

Output the finished product

PARAMETER


Model	LD-420	LD-520	LD-720
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm
Bag Width	60-200mm	100-250mm	180-350mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm
Measurement Range	150-1500ml	5-2000ml	4000ml
