Applications

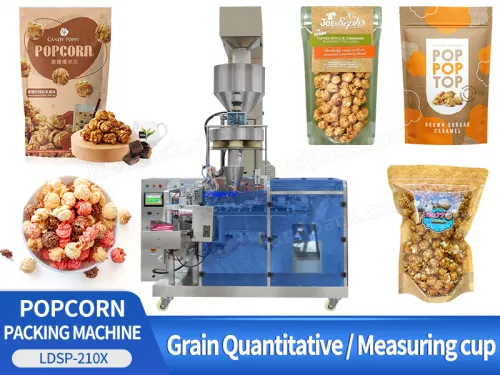

Horizontal Premade Bag Packaging Graules Popcorn Doypack Stand Up Zipper Pouch Packing Machine

Application:

It is suitable to use in packing the high accuracy and easy fragile material. Such as: popcorn,chips, jelly, candy, pistachio nuts, nuts, apple slices, frozen dumpling, coffee beans,pasta,cotton candy, french fries,rice, pet food, small hardwares etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Horizontal Premade Bag Packaging Graules Popcorn Doypack Stand Up Zipper Pouch Packing Machine

FEATURES

1. The machine suits for all kind of stand up pouch with zipper. It could help you measure and fill popcorn and snack into pouch automatically.

2. The whole set of machine is controlled by the touch screen and PLC controlling system, so it is very easy for the worker to operate the machine well

3. There is the Z type conveyor to transport the popcorn from the ground to the tope of storage hopper automatically and continuously

4. There is the nitrogen gas device in the machine, so the machine will help you fill the nitrogen gas into bag automatically.

Horizontal Premade Bag Packaging Graules Popcorn Doypack Stand Up Zipper Pouch Packing Machine

WORKFLOW

Granule Material Feeding

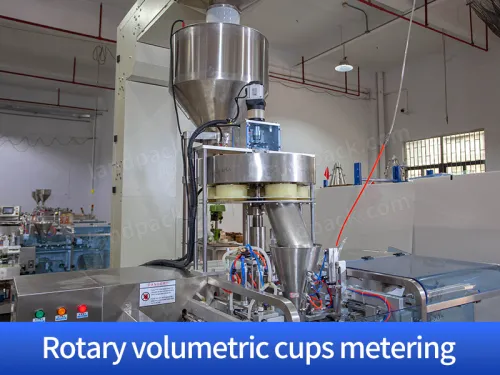

Granule Material weighing

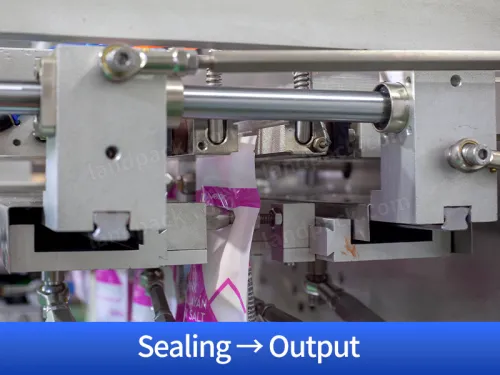

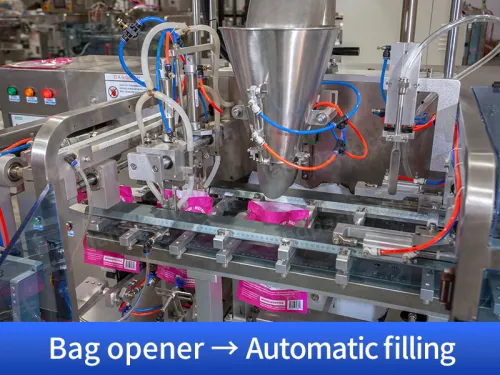

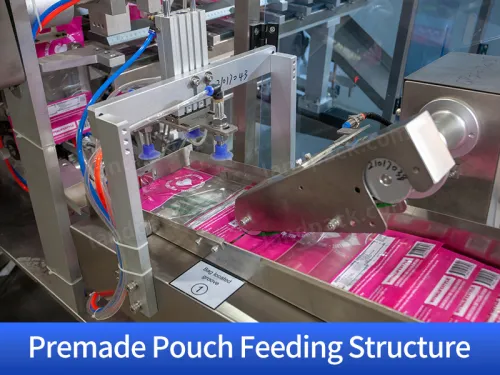

Premade Pouch Opening Filling Sealing

Finished Product Output

Weighing Detecting

Metal Detecting

PARAMETER

Popcorn Packing Machine
Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
