Powder Canning Machine / Line

Home > Products > Powder Canning Machine / Line > Automatic Powder Filling Sealing Labeling Machine Can Tin Seaming Line

Automatic Powder Filling Sealing Labeling Machine Can Tin Seaming Line

Introduction:

The container is automatically located, filling material and automatic transmission.It is widely used in all kinds of tins, and cans filling, such as milk powder, coffee powder, protein powder, chicken powder, chicken essence, monosodium glutamate, food additive, etc.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

The container is automatically located, filling material and automatic transmission.It is widely used in all kinds of tins, and cans filling, such as milk powder, coffee powder, protein powder, chicken powder, chicken essence, monosodium glutamate, food additive, etc.

Automatic Powder Filling Sealing Labeling Machine Can Tin Seaming Line

FEATURES

1. The structure of the whole filling machine, reasonable layout, changing packaging varieties, cleaning, and convenience.

2. Filling double-screw head in order to ensure high precision canning.

3. This Powder Filling Machine can use cans or bottles of containers, no bottles and bottles are not filling, can be configured automatically into the bottle into the tank system.

4. The production capacity and automatic are very high,so the labor cost can be saved.

5. Imported servo motor, high speed, large torque, which greatly improves the accuracy of packaging.

Automatic Powder Filling Sealing Labeling Machine Can Tin Seaming Line

Automatic Powder Filling Sealing Labeling Machine Can Tin Seaming Line

WORKFLOW

01

Double Heads Powder Filling Weighing

02

Can sealing

03

Plastic Lids Pressing

04

Bottle Labeling

05

Finished Product Output

PARAMETER

Automatic Double Heads Powder Filling Sealing Machine LineAutomatic powder weighing filling machine
ModelLD-PAF01
Filling Range10-5000g (Customizable)
Filling Speed20-40 bottles/min
Measurement accuracy±1%
Power5 KW
Working power supply220V,50Hz
Working pressure0.6-0.8MPa
Weight500kg
SizeL11782*W3465.09*H2523.52(mm)
Automatic Double Heads Powder Filling Sealing Machine LineVacuum can seaming machinewith nitrogen flush
Bottle typeround,square bottles etc need to be customized.
Bottle diameter50-120cm(can be customized)
Bottle height50-150mm(can be customized)
Speed5-8BPM(it depends on product)
Caps feeding typeausomtaic lids feeding
Machine voltage220V(can be customized)
Machine size2000*1000*1700mm
Machine weight550kg

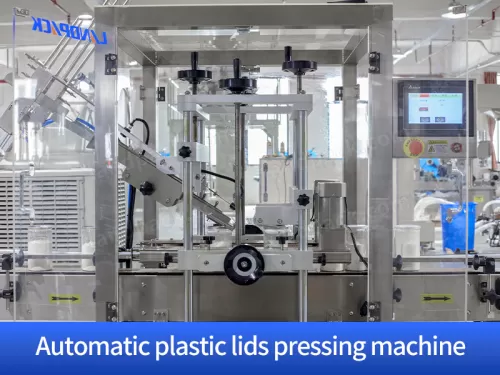

Automatic Double Heads Powder Filling Sealing Machine LineAutomatic plastic lids pressing machine
Seal Can diameterφ40~φ130mm(can be customized)
Bottle's height60~300mm(can be customized)
Cap's height5~15mm
Speed30-50 Cans/minute (can be customized)
Storage Can coverabout 100pcs
Machine Size1900x800x1700
Power220V/380V, 0.68KW
Air Pressure0.6MPa
Automatic Double Heads Powder Filling Sealing Machine LineAutomatic Labeling Machine
ModelLFT-LG-100(Low speed labeling)LFT-GS-100(High speed labeling)
Label length20mm~300mm20mm~300mm
Label width/height20mm~200mm(can be customized)20mm~200mm(can be customized)
Bottle width30-150mm(can be customized)30-150mm(can be customized)
Roll Label outer diameter300mm300mm
Roll Label inner diameter76mm76mm
Accuracy±1mm±1mm
Label speed40-100pcs/min60-120pcs/min
Conveyor speed5~25m/min15~20m/min
Suitable label typeAdhesive sticker label(transparent label need customized)Adhesive sticker label(transparent label need customized)
Working air pressure0.4-0.6Mpa0.4-0.6Mpa
Voltage220V can be customized 4KW220V can be customized 4KW
Weight350KG450KG
Overall dimension3000mm×1450mm×1950mm3050mm×1550mm×1950mm
Automatic Double Heads Powder Filling Sealing Machine LineCollecting Table
Capacity30-50Bottle
MaterialStainless Steel 304
Dimension300*2000*100mm
Weight200KG

Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
