Automatic Powder Canning Filling Seaming Capping Machine Line With Laser Coding Machine

Application:

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

It is suitable for automatic filling of various powder products, such as Milk powder, protein powder, nutritional powder, coffee powder, medicine powder, chemical powder, meal replacement powder, etc.This filling line can be configured according to customer's products and requirements, such as unscrambling, sterilizing, filling, vacuum and nitrogen flushing.

Automatic Powder Canning Filling Seaming Capping Machine Line With Laser Coding Machine

FEATURES

1. The filling line is consist of automatic UV cleaning sterilization machine, vibration plate spoons feeder, cap feeder and cap pressing machine, laser printer.

2. The material of cover is stainless steel, Suspension type material hopper, easy to clean without tools.

3. Bilingual display screen control system, stainless steel cabinet. Set up the required data in the screen touch.

4. Servo motor control the auger that the filling accuracy will be more higher, and the filling speed can be controlled more fast and table, so it will have a long life time.

5. The auger can be adjusted easily to meet different kind of filling capacity and size of powder.

Automatic Powder Can Filling Seaming Capping Machine Line With Metal Detector

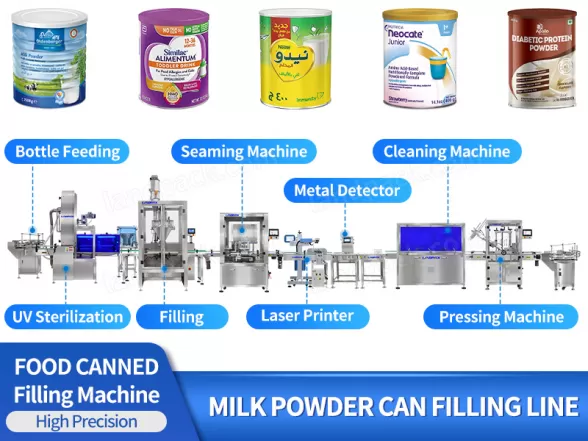

WORKFLOW

Bottle Feeding

UV Sterilization

Filling

Seaming Machine

Laser Printer

Weight Detector

Can Cleaning Machine

Plastic Lids Pressing Machine

PARAMETER

			Automatic UV sterilization UV
			Voltage	220V/50Hz（customized）
			Power	2500W
			Air pressure	0.3-0.5mpa
			Speed	10-50 BPM (can be customized)
			Bottle diameter	76-140mm
			Bottle high	80-200mm
			UV light	7
			Outline dimension	240013002200MM （L×W×H）
			Net weight	350KG

			Vibration plate spoons feeder
			Voltage	220V/50Hz（customized）
			Power	300W
			Speed	10-40 BPM （customized）
			Vibration top diameter	60-80cm
			Spoon size	customized
			Outline dimension	10008001200MM （L×W×H）
			Net weight	150KG

			Automatic powder weighing filling machine
			Model	LD-PAF01
			Filling Range	10-5000g (Customizable)
			Filling Speed	20-40 bottles/min
			Measurement accuracy	卤1%
			Power	5 KW
			Working power supply	220V,50Hz
			Working pressure	0.6-0.8MPa
			Weight	500kg
			Size	L11782W3465.09H2523.52(mm)

			Vacuum can seaming machinewith nitrogen flush
			Bottle type	round,square bottles etc need to be customized.
			Bottle diameter	50-120cm(can be customized)
			Bottle height	50-150mm(can be customized)
			Speed	5-8BPM(it depends on product)
			Caps feeding type	ausomtaic lids feeding
			Machine voltage	220V(can be customized)
			Machine size	200010001700mm
			Machine weight	550kg

			Laser printer
			Print range	100*100mm
			Positioning way	Infrared focusing
			Focuslens	focal length 150mm
			Speed	Max10000mm/s(can be customized)
			Laser	fiber laser generator
			Machine voltage	220V(can be customized)
			Machine size	8255451425mm
			Machine weight	60kg

			Automatic empty cans cleaning machine
			Speed	1-40(can be customized)
			Bottle diameter	60-140mm(can be customized)
			Power	2KW 380V
			Weight	350KG
			Machine size	17008001800mm

			Automatic plastic lids pressing machine
			Seal Can diameter	φ40~φ130mm(can be customized)
			Bottle's height	60~300mm(can be customized)
			Cap's height	5~15mm
			Speed	30-50 Cans/minute (can be customized)
			Storage Can cover	about 100pcs
			Machine Size	1900x800x1700
			Power	220V/380V, 0.68KW
			Air Pressure	0.6MPa
