Automatic Auger Powder Filling Machine Powder Packing Machine For Powder

Introduction:
This double heads powder filling machine is suitable for bottling all kinds of fine powder materials, such as flour, sugar, salt, coffee powder, peanut powder and so on.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This double heads powder filling machine is suitable for bottling all kinds of fine powder materials, such as flour, sugar, salt, coffee powder, peanut powder and so on.

Automatic Auger Powder Filling machine Powder Packing Machine For Powder

FEATURES

1. Adopt a stepping/servo motor and electronic weighing technology, the aircraft is slightly lower cost than the servo motor, and it is economical and practical.

2. Spiral cutting, light-control technology.

3. Specifications: the same machine within the 2-5000g adjustment and replacement of the keyboard under different specifications of material spiral continuously adjustable.

4. Scope: There is a certain fluidity of powder materials, and containers are unlimited.

5. Materials due to changes in weight and material level of error correction can be automatically tracked.

6. Screw feeder can be equipped with automatic feeding control.

Automatic Auger Powder Filling machine Powder Packing Machine For Powder

WORKFLOW

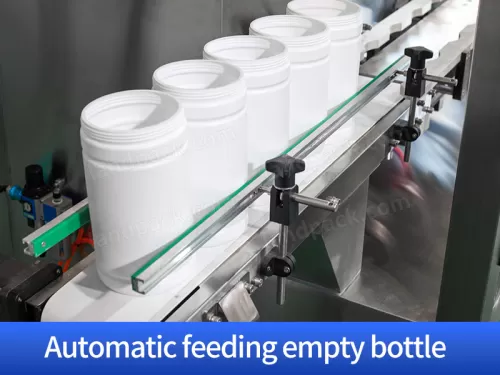

Automatic feeding empty bottle

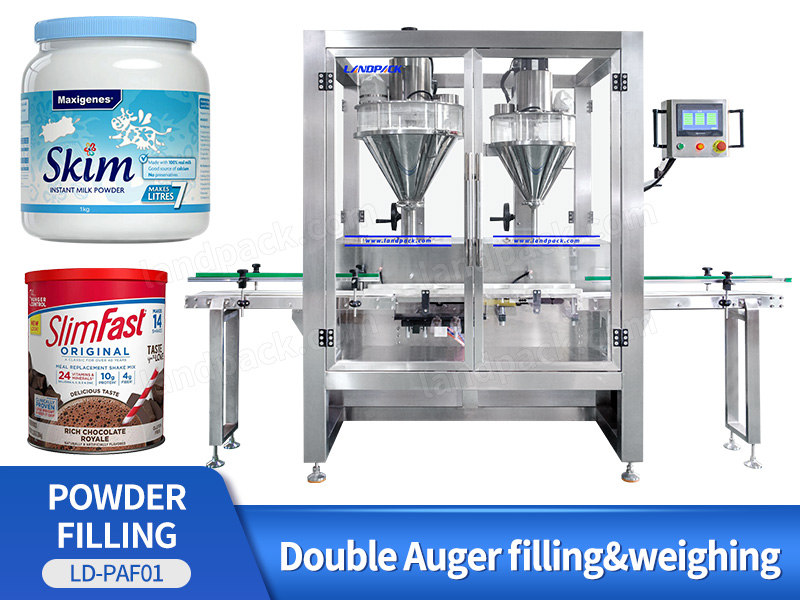

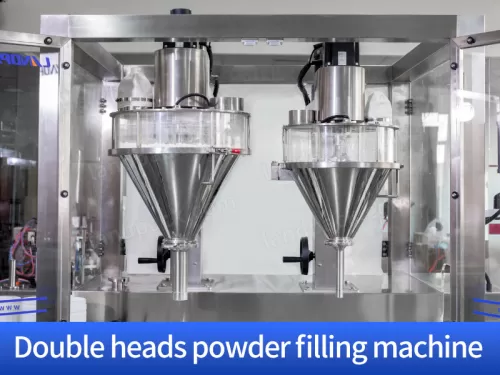

Double heads auger powder filling machine

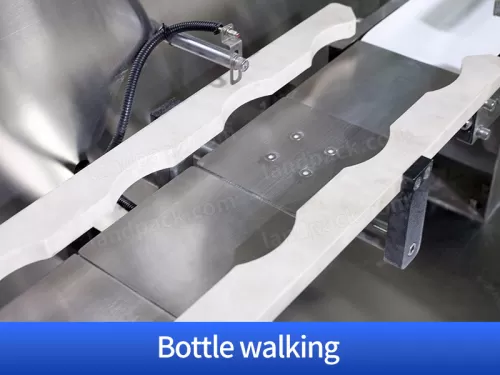

Bottle Output

PARAMETER

Double Heads Powder Filler
Filling heads	Double screws dosing device	Single screws dosing device
Material of Nozzle	SS304 ,meet GMP production requirements	SS304 ,meet GMP production requirements
Material of machine	SS304, 1.5mm thickness	SS304, 1.5mm thickness
Filling Speed	20-30 Bottle / minute. Can be adjusted to prevent bottle overflow	10-20 Bottle / minute. Can be adjusted to prevent bottle overflow
Filling form	Two screw filler	One screw filler
Filling sensor	Included,No bottle no filling	Included,No bottle no filling

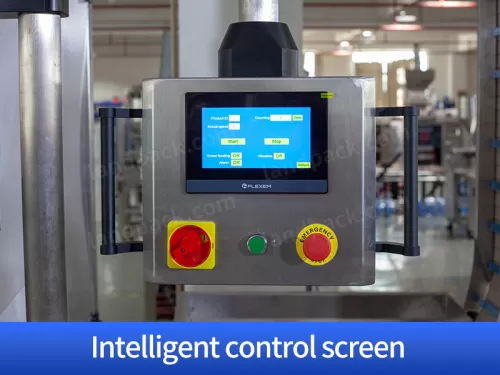

Control method	PLC+Touch screen	PLC+Touch screen
Air consumption	0.6MPa.	0.6MPa.
Dust removal device	Yes	Yes
