Automatic Screw Feeding Premade Bag Pouch Powder Filling Machine Doypack Stand Up Pouch Powder Packaging Machine

Introduction:

This machine could packing different powder into pre-made pouches in one automatic process ,specially designed and developed for packaging milk powder, tea powder, bakery powder, spices, coffee powder, medical powder, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Screw Feeding Premade Bag Pouch Powder Filling Machine Doypack Stand Up Pouch Powder Packaging Machine

FEATURES

1. Double weighing system, suitable for granule and powder products.

2. The complete machine is controlled and coordinated by PLC, with color touch screen, with English interface.

3. It is simple to set and control the temperature of all heating parts.

4. With failure alarm and emergency buttons.

5. It has the counting function of batch quantity.

6. High quality stainless steel material for products contact parts, clean and easy for cleaning.

Automatic Screw Feeding Premade Bag Pouch Powder Filling Machine Doypack Stand Up Pouch Powder Packaging Machine

WORKFLOW

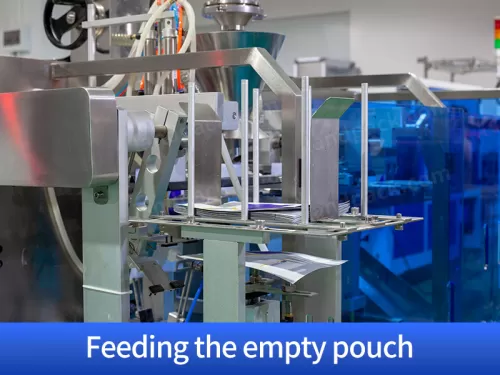

Feeding the zipper doypacks

Picking the bags and coding

Opening the zip bags

Auger screws filling with dust cleaning

Arranging

Sealing

PARAMETER

Automatic Powder Horizontal Pouch Packing Machine
Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering, screw elevator
