High accuracy Double Head Can Filling Capping Labeling Machine Line For Powder

Application:
This can powder filling machine line is suitable for filling various powder products, such as milk powder, coffee powder, spice powder, protein powder, nutritional powder, medicine powder, meal replacement powder, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This can powder filling machine line is suitable for filling various powder products, such as milk powder, coffee powder, spice powder, protein powder, nutritional powder, medicine powder, meal replacement powder, etc.

High accuracy Double Head Can Filling Capping Labeling Machine Line For Powder

FEATURES

1. Powder filling line, the matching is relatively simple, practical, and the price is not expensive.

2. High-speed labeling machine with fast speed and stable performance.

3. Pressing cap speed 50 bottles/min.

4. The filling head is Lande's self-innovated filling nozzle, which can effectively solve the problems of wire drawing and dripping. The filling accuracy is higher.

5. It is simple and convenient to change the specifications and adjust the filling volume directly on the touch screen.

6. The size of the bottle is easy to adjust, and it is equipped with an automatic lifting device.

High accuracy Double Head Can Filling Capping Labeling Machine Line For Powder

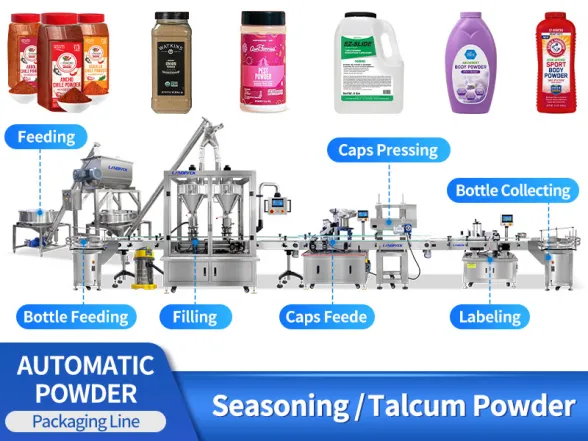

WORKFLOW

Automatic Bottle Feeding

Automatic Double Heads Powder Filling

Automatic Vibratory Bowl

Automatic Capping

Automatic Caps Pressing

Automatic Labeling

PARAMETER

	Automatic bottle feeding
	Model	LFL-800
	Capacity	10rpm
	Bottle diameter	Φ30-100mm（Could be customized）
	Bottle height	30-120mm（Could be customized）
	Power	200W
	Voltage	220V、50HZ
	Weight	50kg

Double heads powder filler
Filling heads	Double screws dosing device	Single screws dosing device
Material of Nozzle	SS304, meet GMP production requirements	SS304, meet GMP production requirements
Material of machine	SS304, 1.5mm thickness	SS304, 1.5mm thickness
Filling Speed	20-30 Bottle / minute. Can be adjusted to prevent bottle overflow	10-20 Bottle / minute. Can be adjusted to prevent bottle overflow
Filling form	Two screw filler	One screw filler
Filling sensor	Included,No bottle no filling	Included,No bottle no filling
Control method	PLC+Touch screen	PLC+Touch screen
Air consumption	0.6MPa.	0.6MPa.
Dust removal device	Yes	Yes

	Vibratory Bowl
	Material	SUS304/AL6061
	Material Specialty	Excellent processing properties, high strength, high hardness
	Voltage	AC110/220V
	Power	350W/400W/500W/600W/800W
	Direction	Clockwise or Counter Clockwise
	Speed	Based on Customer's Requirements
	Bowl Finishing	Polishing or PU coating
	Color	Based on Customer's Requirements
	Weight	50KG ( depends on product)
	Service	Spare parts and Technical support

	Automatic caps feeder
	Material of machine	SS304
	Cover diameter	Diameter30-80mm
	Min Cover height	10mm
	Bottle height size	100-250mm (Customized is acceptable)
	Speed	20-25bpm(depends on material and cover size)
	Conveyor size	(L)3000(W)114(H)900mm
	Machine size	(L)2000(W)900*(H)1600mm
	Power	220V.50HZ,2KW
	Control system	PLC+Touch screen
	Air consumption	0.5-0.7mpa

	Caps pressing machine
	Machine model	LD-XG1870G
	Working voltage	AC220V/110V 50-60HZ
	Working pressure	0.4-0.6 MPa
	Bottle height	60-270mm
	Bottle Caps Diameter	Customized
	Working speed	20-40 bottles/minute((can be customized))
	Conveyor size	About 1780115mm (LW)
	Machine size	About 17805801140mm (Machine)
	Machine weight	About 83kg+72kg (Machine+Vibratory Bowl)
	Package size	About 12207901250mm(Machine)
	Package weight	About 123kg

	Autoamtic Labeling Machine
	Material of machine	SS304+Aluminum alloy
	Label Precision	±1mm(not contain product and label error)
	Label speed	20-60 pieces/minute(can be customized)
	Suitable product size	Diameter 25-150mm,H:30-150mm(can be customized)
	Label size	Length:6mm-260mm Width(backing sheet width):10mm-150mm)
	Label rolling	Diameter within:76mm Exterior Diameter within:300mm
	Power supply	1.74KW.220V/50HZ
	Machine size	(L)1980(W)1500(H)1400mm
	Machine weight	N.W190kg.G.W220kg
	Power	220V.50HZ,2KW
	Control system	PLC+Touch screen
	Air consumption	0.4-0.6mpa
