Multifunction High Precision Bottle Powder Filling Line With Capping Machine

Introduction:

It's suitable for the automatic filling of various powder products, such as seasoning powder, spice powder, milk powder, protein powder, chili powder, nutritional powder, coffee powder, medicine powder, chemical powder, meal replacement powder, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Multifunction High Precision Bottle Powder Filling Line With Capping Machine

FEATURES

1. The powder filling line is made of stainless steel, which meets GMP standards.

2. PLC Control High Smart With Touch Screen.

3. Single Head Powder Filling Machine With Anti Leak Anti-Dusting Device.

4. Cap Feeder Automatically One Cap Size One Flow Tracker.

5. Servo Capping Pressing Machine Keep the Cap Screw Tightly.

6. Foil Sealing Machine is Optional.

7. 1-5kg Capacity with 5-10 bottles Per Min.

Multifunction High Precision Bottle Powder Filling Line With Capping Machine

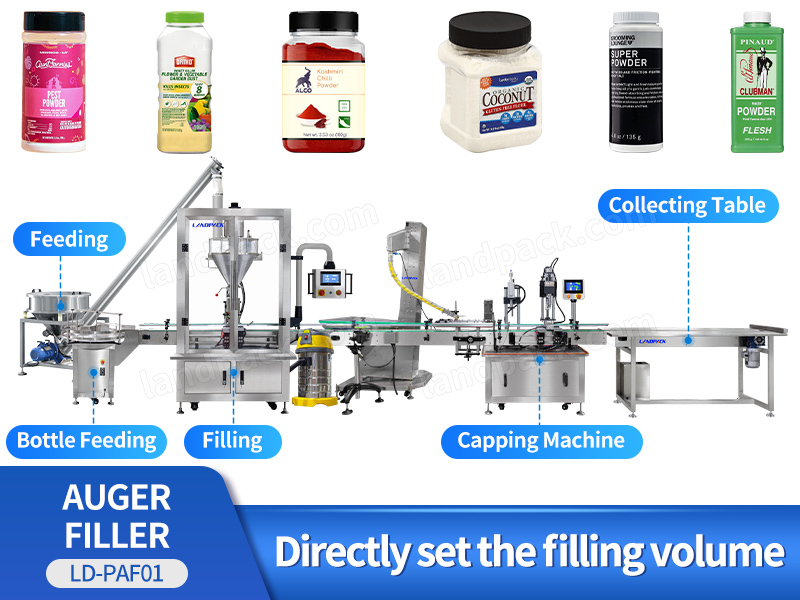

WORKFLOW

230L storage Hopper with Auger Conveyor Feeding the powder

Servo Motor for Measuring the Different Powder Capacity 1-5kg can be customized

Powder Filling Machine With Anti Leak Anti-Dustying Device

Cap Feeder Automatically

Servo Capping Machine with Pressing Device

Collection Table For finished Bottles

PARAMETER

			Bottle conveyor feeding device
			Machine Model	LD-LP800N
			Power Supply	220V/110V, 50-60Hz, 200W
			Turntable Diameter	800mm（Could be customized）
			Suitable Bottle Diameter	20-100mm
			Suitable Bottle Height	30-320mm
			Working Speed	40-60bottles/min(（Could be customized）)
			Package Size	123010101260mm（Could be customized）
			Gross Weight	141kg

Automatic powder weighing filling machine
Model	LFP-01（Single Head Powder Filling）	LFP-01（Single Head Powder Filling）	LFPD-50-30（Double Head Powder Filling）
Filling Weight	10-5000g(Replace screw specifications)	10-5000g(Replace screw specifications)	100-2000g
Bottle diameter	Φ30-Φ140mm(Could be customized)	Φ30-Φ140mm(Could be customized)	Φ60-Φ135mm
Bottle Height	50mm-200mm(Could be customized)	50mm-200mm(Could be customized)	601-260mm
Capacity	10-20Bottles/min	20-40Bottles/min	10-25bottles/min
Measure accuracy	≤500g,≤±1%；≥500g,≤±0.5%	≤500g,≤±1%；≥500g,≤±0.5%	100-1000g,≤±2g；≥1000g,≤±5g
Power	2.5KW	5KW	4.5KW
Hopper Capacity	50L	50L	50L，30L
Power	220V,50HZ	220V,50HZ	220V,50HZ
Voltage	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa
Weight	350kg	550kg	500kg

Capping Machine
Model	LDBZ-2C(Double heads servo capping)	LDBZ-C(Single head servo capping)	LDBZ-3C(Three heads servo capping)
Capacity	40 Bottles/min	30Bottles/min	50Bottles/min
Bottle diameter	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）
Bottle sealing height	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）
Power	2.5KW	2KW	3KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.5-0.7Mpa	0.4-0.6Mpa	0.7-0.9Mpa
weight	350kg	300kg	400kg

			Collecting Table
			Capacity	30-50Bottle
			Material	Stainless Steel 304
			Dimension	3002000100mm
			Weight	200KG
