Automatic Double Heads Protein Powder Canister Weighing Filling Capping Labeling Machine Lines

Introduction:

It is suitable for filling powdered materials such as protein powder, milk powder, body powder, seasoning powder, glucose, protein powder, cocoa powder, coffee powder, rice powder, solid drink and so on.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Double Heads Protein Powder Canister Weighing Filling Capping Labeling Machine Lines

FEATURES

1.All stainless steel structure,easy to disassemble and clean.

2.A variety of product adjustment parameters formula can be stored, ready for later use.

3.The whole line adopts imported PLC and 7-inch touch screen man-machine interface, production parameterized control, simple operation.

4.The production line has stable operation, low noise, convenient maintenance, and fully meets GMP certification requirements.

5.The high-speed capping machine has fast speed and stable performance.

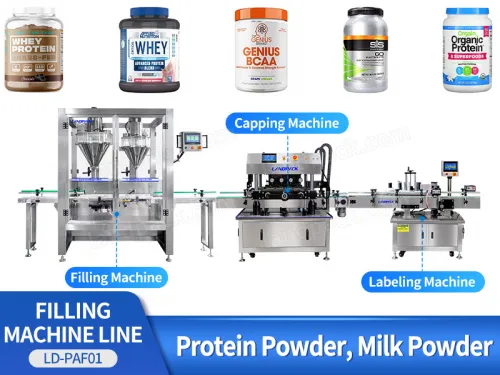

Automatic Powder Canister Weighing Filling Seaming Labeling Machine Lines

WORKFLOW

Automatic Powder weighing filling

Capping with high speed

Labeling

PARAMETER

Automatic powder weighing filling machine
Model	LFP-01（Single Head Powder Filling）	LFP-01（Single Head Powder Filling）	LFPD-50-30（Double Head Powder Filling）
Filling Weight	10-5000g(Replace screw specifications)	10-5000g(Replace screw specifications)	100-2000g
Bottle diameter	Φ30-Φ140mm(Could be customized)	Φ30-Φ140mm(Could be customized)	Φ60-Φ135mm
Bottle Height	50mm-200mm(Could be customized)	50mm-200mm(Could be customized)	601-260mm
Capacity	10-20Bottles/min	20-40Bottles/min	10-25bottles/min
Measure accuracy	≤500g,≤±1%；≥500g,≤±0.5%	≤500g,≤±1%；≥500g,≤±0.5%	100-1000g,≤±2g；≥1000g,≤±5g
Power	2.5KW	5KW	4.5KW
Hopper Capacity	50L	50L	50L，30L
Power	220V,50HZ	220V,50HZ	220V,50HZ
Voltage	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa
Weight	350kg	550kg	500kg

High speed capping machine
Model	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.5-0.7Mpa
Weight	350kg	300kg
Dimensions	H3120W1544L2122	H3100W1244L2122

Round Bottle Labeling machine auto labeling
Model	LFT-LG-100(Low speed labeling)	LFT-GS-00(High speed labeling)
Labeling speed	Max 120bottle/min	Max 140bottle/min
Labeling accuracy	±1mm	±1mm
Label maximum width	100mm（Could be customized）	100mm（Could be customized）
Size of the object being attached	Φ30mm-Φ100mm（Could be customized）	Φ30mm-Φ80mm（Could be customized）
Label ID	Φ76mm	Φ76mm
Label OD	MaxΦ330mm	MaxΦ380mm
Voltage	220V、50HZ	220V、50HZ
Power	1.5KW	1KW
Weight	250kg	300kg
