Automatic Protein Powder Can Filling Capping Labeling Machine Line With Three Seaming Machine

Application:

It is suitable for all kinds of powder products, such as protein powder, milk powder, nutritional powder, coffee powder, medicine powder, chemical powder, meal replacement powder, spices powder, talcum powder, etc. can adopt all type of cans, tins, bottles, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Protein Powder Can Filling Capping Labeling Machine Line With Three Seaming Machine

FEATURES

1. Twin-screw head filling, main filling and supplementary filling; Servo and pneumatic system control tank and horizontal moving tank, accurate positioning and fast speed, stable performance and high accuracy

2. Changing screw can measure different weight and precision

3. Adopted 1.5mm thickness 304 stainess steel for the whole frame

4. Organic glass is made of imported acrylic, with a thickness of 8-10mm, high-end atmosphere

5. There are two weight sensors under the container tray, fast and slow filling according to pre-set weight, ensure the accuracy of canning, have the function of weight elimination at the end of equipment configuration.

6. All 304# stainless steel structure, horizontal opening transparent container, can be opened for cleaning without tools, easy for cleaning.

7. Equipped with dust removal device and negative pressure pipe, it can effectively suck away the raising powder in the filling process and effectively protect the workshop environment.

Automatic Protein Powder Can Filling Capping Labeling Machine Line With Three Seaming Machine

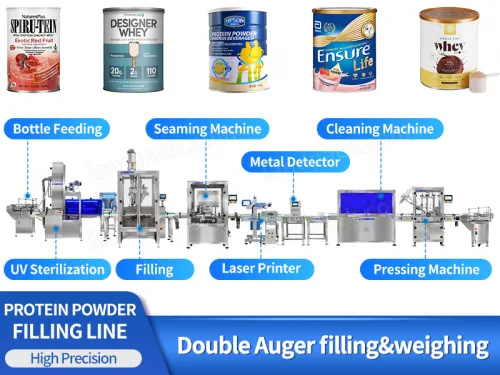

WORKFLOW

Cans Feeding

Cans UV Sterilization

Weighting And Filling

Weight Deterctor

Automtaic Seaming Machine

Laser Printer

Automatic Cans Cleaning

Automatic Plastic Lids Pressing

PARAMETER

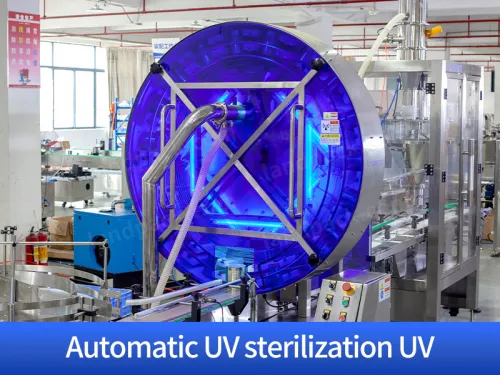

			Automatic UV sterilization UV
			Voltage	220V/50Hz（customized）
			Power	2500W
			Air pressure	0.3-0.5mpa
			Speed	10-50 BPM (can be customized)
			Bottle diameter	76-140mm
			Bottle high	80-200mm
			UV light	7
			Outline dimension	240013002200MM （L×W×H）
			Net weight	350KG

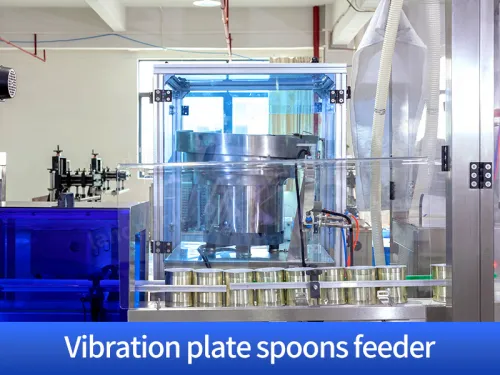

			Vibration plate spoons feeder
			Voltage	220V/50Hz（customized）
			Power	300W
			Speed	10-40 BPM （customized）
			Vibration top diameter	60-80cm
			Spoon size	customized
			Outline dimension	10008001200MM （L×W×H）
			Net weight	150KG

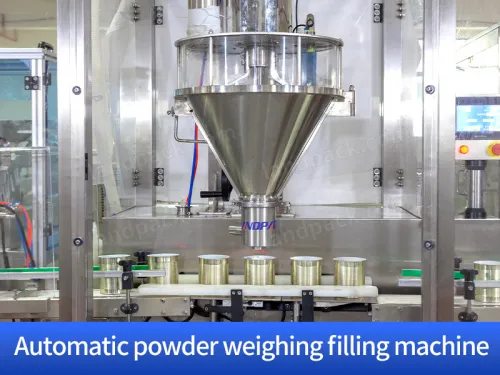

			Automatic powder weighing filling machine
			Model	LD-PAF01
			Filling Range	10-5000g (Customizable)
			Filling Speed	20-40 bottles/min
			Measurement accuracy	±1%
			Power	5 KW
			Working power supply	220V,50Hz
			Working pressure	0.6-0.8MPa
			Weight	500kg
			Size	L11782W3465.09H2523.52(mm)

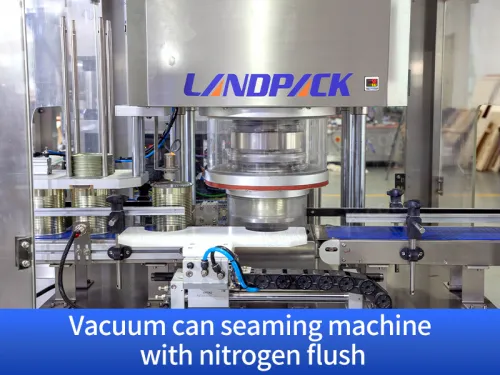

			Vacuum can seaming machinewith nitrogen flush
			Bottle type	round,square bottles etc need to be customized.
			Bottle diameter	50-120cm(can be customized)
			Bottle height	50-150mm(can be customized)
			Speed	5-8BPM(it depends on product)
			Caps feeding type	ausomtaic lids feeding
			Machine voltage	220V(can be customized)
			Machine size	200010001700mm
			Machine weight	550kg

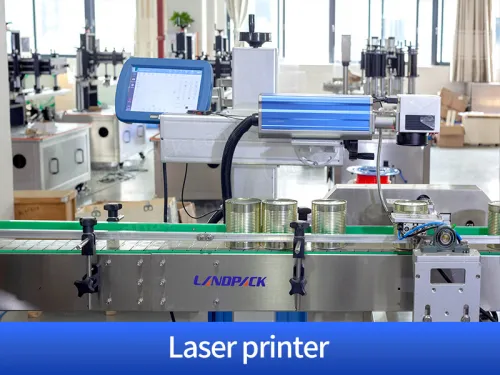

			Laser printer
			Print range	100*100mm
			Positioning way	Infrared focusing
			Focuslens	focal length 150mm
			Speed	Max10000mm/s(can be customized)
			Laser	fiber laser generator
			Machine voltage	220V(can be customized)
			Machine size	8255451425mm
			Machine weight	60kg

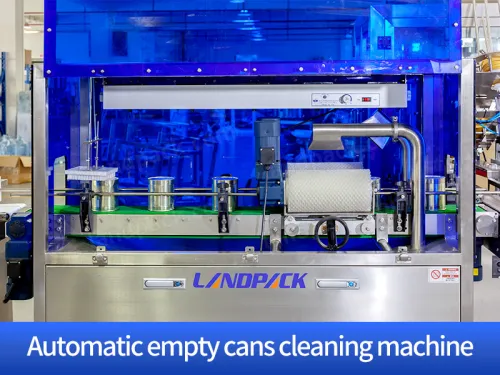

			Automatic empty cans cleaning machine
			Speed	1-40(can be customized)
			Bottle diameter	60-140mm(can be customized)
			Power	2KW 380V
			Weight	350KG
			Machine size	17008001800mm

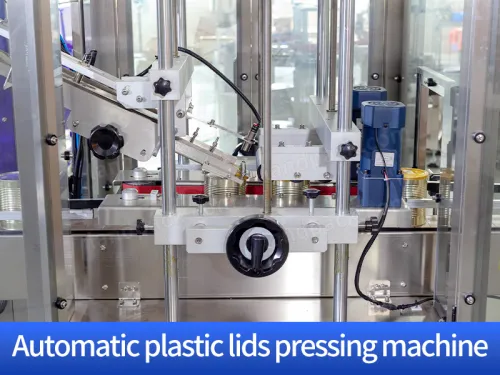

			Automatic plastic lids pressing machine
			Seal Can diameter	φ40~φ130mm(can be customized)
			Bottle's height	60~300mm(can be customized)
			Cap's height	5~15mm
			Speed	30-50 Cans/minute (can be customized)
			Storage Can cover	about 100pcs
			Machine Size	1900x800x1700
			Power	220V/380V, 0.68KW
			Air Pressure	0.6MPa
