Applications

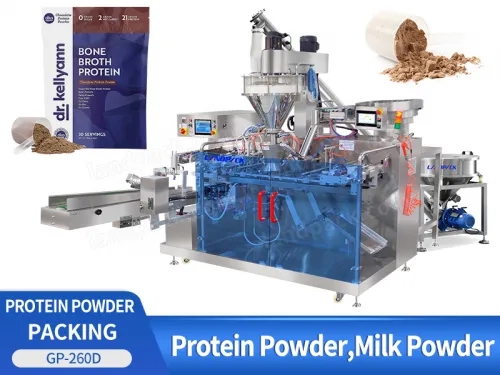

Automatic Protein Powder Horizontal Premade Zipper Stand Up Gusset Pouch Packing Machine

Introduction:

Horizontal automatic premade zipper bag gusset pouch doypack powder packing machine, it is suitable for powder: protein powder, milk powder, cocoa powder, talcum powder, flour, tea powder, bakery powder, spices, coffee powder, medical powder, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Protein Powder Horizontal Premade Zipper Stand Up Gusset Pouch Packing Machine

FEATURES

1. This is a fully-automatic packing machine with Multi-function which can be integrated with various filling systems.

2. High capacity auger feeding machine, save labr cost

3. Servo motor to control and high speed to work.

4. Automatic alarming function and stop when the inadequate air pressure.

5. High precision horizontal bag feeding device, speed adjustable.

6. Famous brand components, ensure the quality and durability of machine.

7. Open the zipper efficiently and accurately;

8. Heavy weight prowder,beautiful packaging, accurate measurement.

9. Automatically put the spoon into the bag.

10 .smooth performance and low noise, perfect package appearance with enough film storage, Sensible safety device and no pollution during production to get Friendly working environment.

Automatic Milk Powder Horizontal Premade Zipper Stand Up Gusset Pouch Packing Machine

WORKFLOW

Feeding the zipper doypacks

Picking the bags and coding

Opening the zip bags

Auger screws filling with dust cleaning

Spoon feeding

Arranging

Sealing

PARAMETER

Automatic Powder Horizontal Pouch Packing Machine
Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
