Automatic Protein Powder Stick Packing Machine Line With Weigh Detector

Introduction:

The fully automatic powder stick bag packaging line has an automatic powder mixer, vacuum feeding system, screw metering system, ribbon coding and weighing function. This production line is very suitable for packaging various powders, such as protein powder, medicinal powder, spices, tea powder, milk powder, coffee powder, flour, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Protein Powder Stick Packing Machine Line With Weigh Detector

FEATURES

1.Combines storage, sorting, mixing, feeding, filling, packing, sealing, and output, streamlining the entire production process with automatic weight checking and rejection for efficiency.

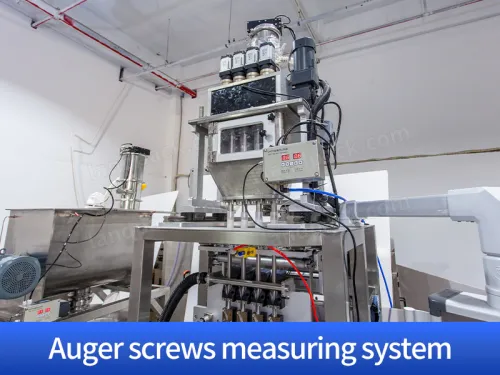

2.Auger screws ensure precise powder filling, with consistent results and secure, high-quality sealing to maintain packaging integrity.

3.Equipped with an automatic vision system for immediate weight inspection, ensuring that each product meets quality standards during the production process.

4. Fully automated, zero-human intervention system delivers high-speed, consistent production with reliable output quality.

5.The production line adheres to rigorous safety and hygiene standards, minimizing manual intervention and maintaining a clean environment throughout the process.

6.The system's advanced technology guarantees accurate powder dosing, filling, and sealing, ensuring uniform product quality and packaging performance.

7.The automated system ensures continuous and consistent production, reducing human error and optimizing operational efficiency for high-volume output.

Automatic Protein Powder Stick Packing Machine Line With Weigh Detector

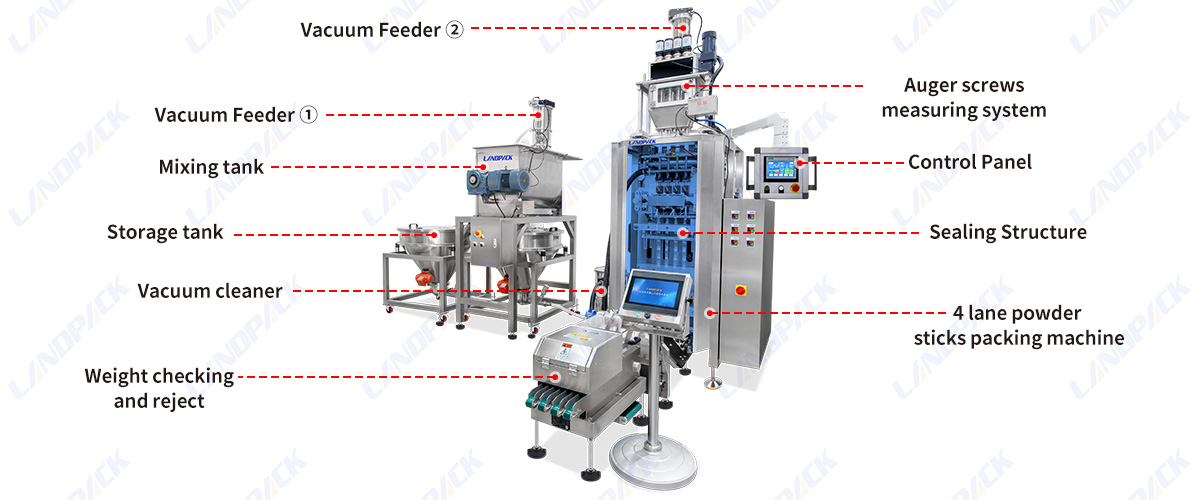

WORKFLOW

Vacuum Mixing Tank

Automatic vacuum Powder Feeding

Servo motor pulling film

4 tracks sachet packing

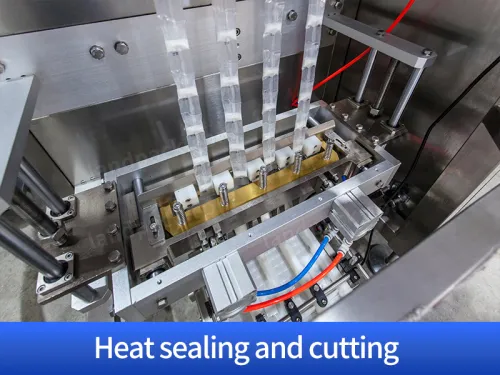

Packing and sealing

Cutting and output the finished product

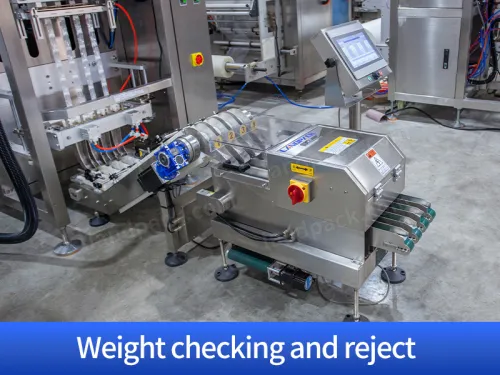

Weight checking and reject

PARAMETER

Model	LDBS-280D	LDBS-560D
Lane number	4-6 Lines	8-12 Lines
Filling Method	Auger filling by servo motor
Capacity	Max.35 cycles/ min
Sachat Size	L: 50-180mm; W: 17-30mm	L: 50-180mm; W: 17-30mm
Film width & Thickness	Max.280mm, 0.07-0.10mm	Max.560mm, 0.07-0.10mm
Sealing type	Back sealing/Stick bag	Back sealing/Stick bag
Cutting type	1. Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Irregular
Air & Powder	0.8Mpa, 0.8m³/min; 3.5kw	0.8Mpa, 0.8m³/min; 5.5kw
Dimension & weight	13859182005mm; 350kg	168513002005mm; 550kg
