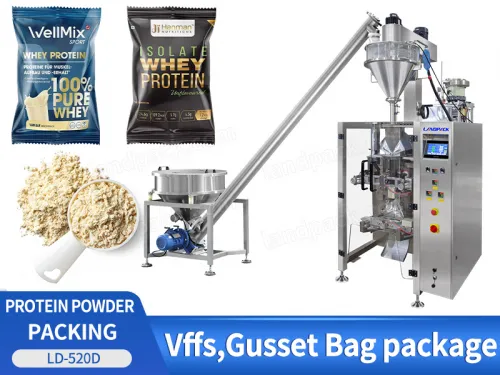

Full Automatic Vertical Pouch Protein Powder Packing Machine 1kg to 5kg Powder Packaging Machine

Introduction:

Powder packing machine is suitable for all kinds of super fine powder stuff.Such as protein powder,flour,starch,coffee,spice,seasoning,tea powder,baking powder and chemical powder, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Powder packing machine is suitable for all kinds of super fine powder stuff.Such as protein powder,flour,starch,coffee,spice,seasoning,tea powder,baking powder and chemical powder, etc.

Full Automatic Vertical Pouch Protein Powder Packing Machine 1kg to 5kg Powder Packaging Machine

FEATURES

1. With the function auto filling,measuring,bag forming,sealing and cutting. Bag-making system adopts step motor with high precision(error is less than 1mm).

2. PLC control with stable,reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.

3. To ensure the same length of each bag, high sensitive electro-optical sensor system is provide to the realize automatic a lignment on the packing film.

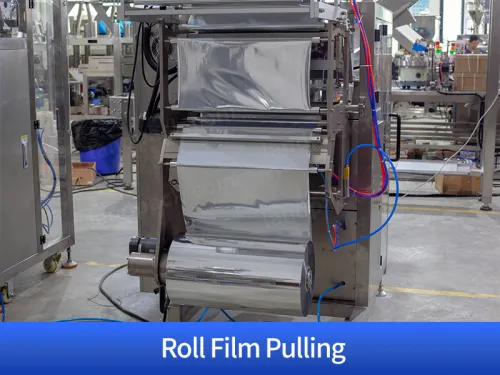

4. Adopting servo motor drawing film, the position is more accurately.

5. Independent temperature control system, precision can reach ±1℃.

High Quality Milk Powder Packaging Machine Powder Sachet Filling Packing Machine

WORKFLOW

Horizontal screw measure

Ribbon code printer

Color mark sensor

Bag former

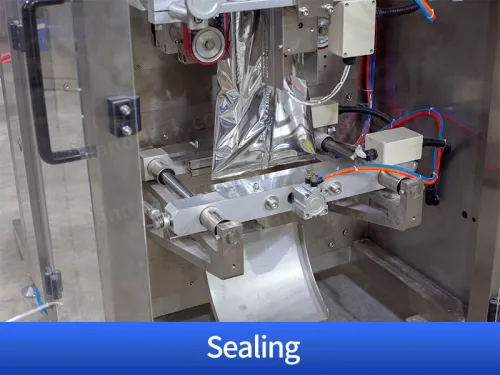

Middle sealing

Cutter

Product Output

PARAMETER

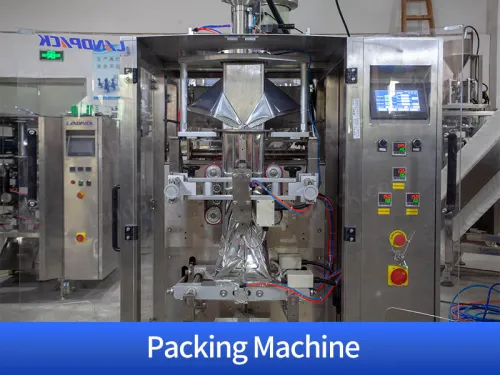

Automatic Powder Vertical Packing Machine
Model	LD-320D	LD-380D
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70bag/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
Machine size(LWH)	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg
