Protein Powder Filling & Packing Machine / Line

Home > Applications > Powder Packing Filling Machine Line > Protein Powder Filling & Packing Machine / Line > High Speed 4 Line Stick Sachets Protein Powder Packing Machine Multi-lane Automatic Collagen Powder Packing Machine

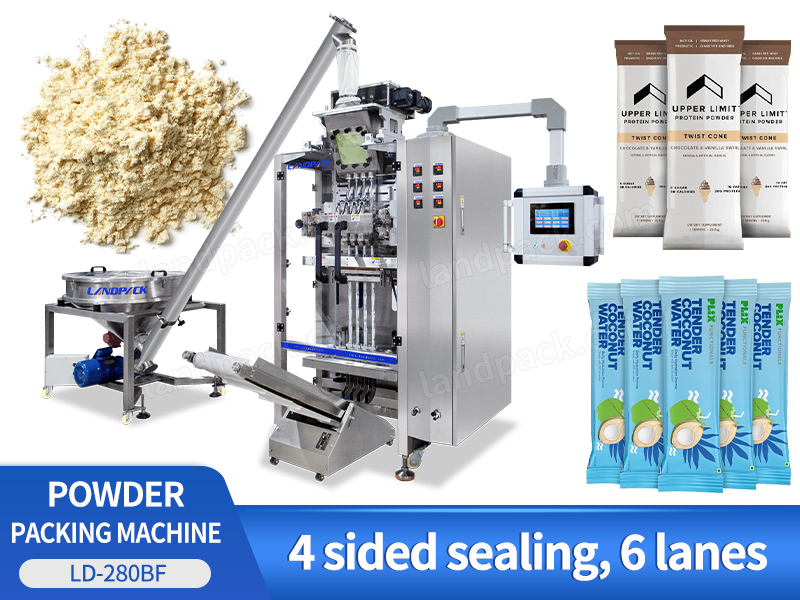

High Speed 4 Line Stick Sachets Protein Powder Packing Machine Multi-lane Automatic Collagen Powder Packing Machine

Introduction:

This Multi-Lane Packing Machine is suitable for the packaging of various powdered materials in the food, and other industries, such as: coffee powder, milk powder, matcha powder, milk tea powder, flour, corn flour, chili powder, protein powder, meal replacement powder, fruit powder, etc.


Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

This Multi-Lane Packing Machine is suitable for the packaging of various powdered materials in the food, and other industries, such as: coffee powder, milk powder, matcha powder, milk tea powder, flour, corn flour, chili powder, protein powder, meal replacement powder, fruit powder, etc.

High Speed 4 Line Stick Sachets Protein Powder Packing Machine Multi-lane Automatic Collagen Powder Packing Machine

FEATURES

1. It can automatically complete all tasks such as measuring, cutting, bag making, sealing, slitting, counting, and hot pressing batch numbers in the packaging process.

2. Intelligent PLC control system, touch screen operation, only need to set parameters to accurately control the operation of the system.

3. The silent stepper motor is used to make the production environment quieter and meet the requirements of environmental protection.

4. The number of lane lines is customized according to customer needs to meet different production requirements.

High Speed 4 Line Stick Sachets Protein Powder Packing Machine Multi-lane Automatic Collagen Powder Packing Machine

WORKFLOW

01

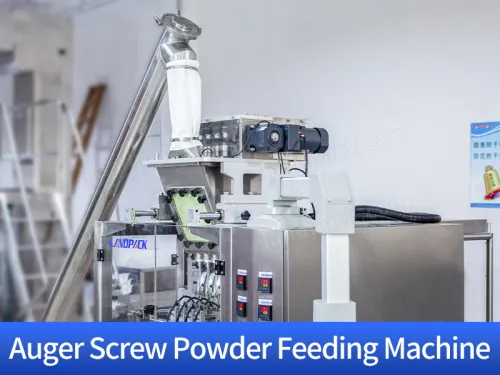

Vacuum pump feeding powder automatically,

02

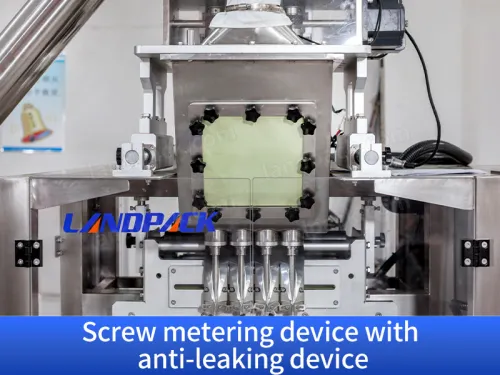

Metering product

03

Servo motor pulling film

04

4 tracks sachet packing machine

05

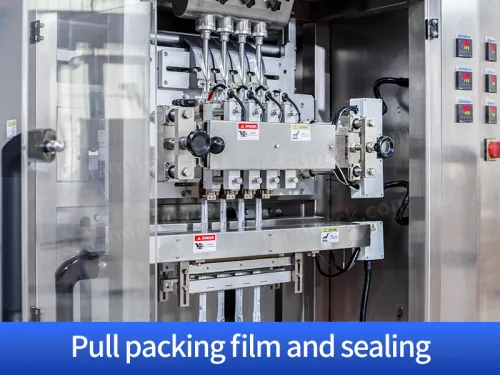

Pull packing film and sealing

06

Feed powder into sachet

07

Cutting and output the finished product

08

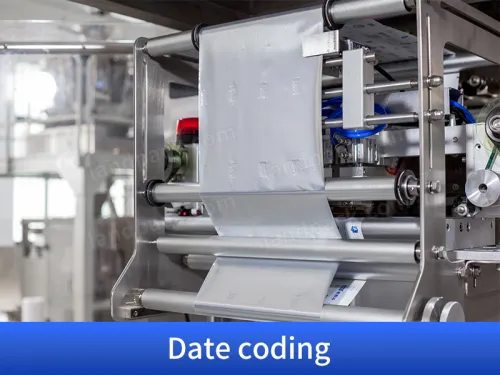

Ribbon date printing

PARAMETER

High Speed 4 Line Stick Sachets Protein Powder Packing Machine Multi-lane Automatic Collagen Powder Packing Machine
 Model LD-280BF LD-560BF
 Lane number 4-6 Line 8-12 Line
 Filling Method Auger filling by servo motor
 Capacity Max.35 cycle/ min
 Sachat Size L:50-180mm; W:17-30mm L:50-180mm; W:17-30mm
 Film weidth & Thickness Max.280mm, 0.07-0.10mm Max.560mm, 0.07-0.10mm
 Sealing type Back sealing/Stick bag Back sealing/Stick bag
 Cutting type 1.Straight cutting;2.Zig zag cutting;3.Round cutting;4.Irregular
 Air & Powder 0.8Mpa 0.8m3/min; 3.5kw  0.8Mpa 0.8m3/min; 5.5kw
 Dimension & weight 1385*918*2005mm;350kg 1685*1300*2005mm;550kg


Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
