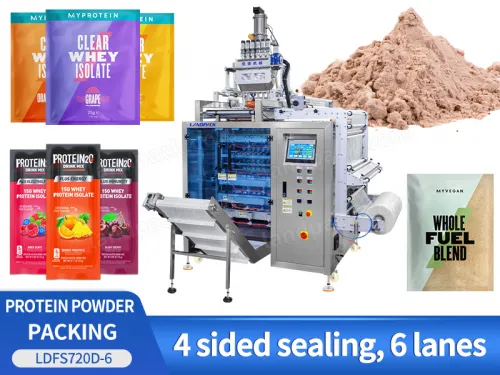

Multi Lane Protein Powder Bag Packing Machine Collagen Powder Sachet Packaging Machine

Introduction:

We offer single line / multi-lane sachet and stick bag packaging machine with the capacity of making 100-480 sachets per minute, which is suitable for protein powder, meal replacement powder, fruit powder, coffee powder, milk powder.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Multi Lane Protein Powder Bag Packing Machine Collagen Powder Sachet Packaging Machine

FEATURES

1. Using PLC control, with automatic photoelectric tracking and correction function;

2. The bag length can be adjusted randomly for convenience;

3. When the machine fails, it will be automatically displayed on the operation interface, which is convenient for maintenance;

4. When the temperature exceeds the limit, it will stop automatically to ensure the quality of the finished product.

Multi Lane Protein Powder Bag Packing Machine Collagen Powder Sachet Packaging Machine

WORKFLOW

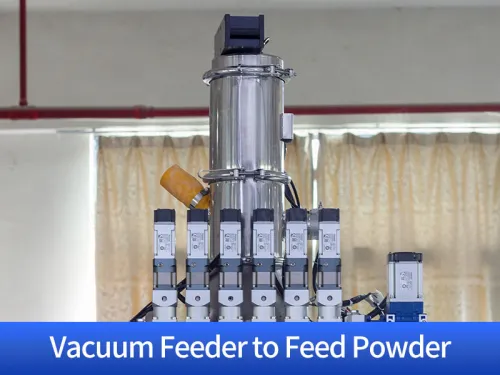

Vacuum pump feeding powder automatically,

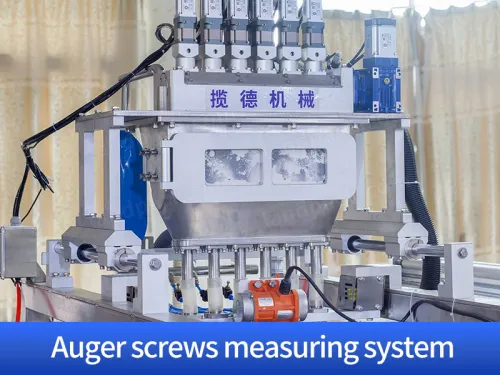

Metering product

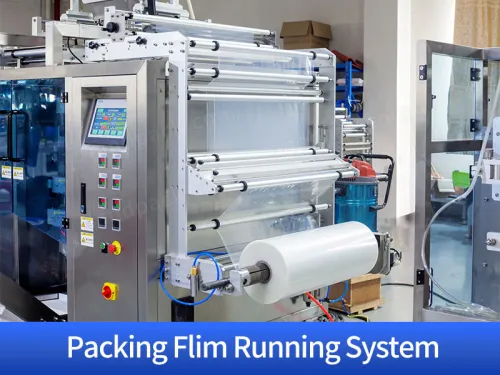

Servo motor pulling film

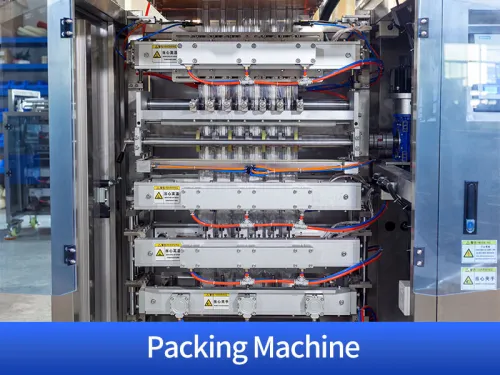

6 tracks sachet packing machine

Pull packing film and sealing

Feed powder into sachet

Cutting and output the finished product

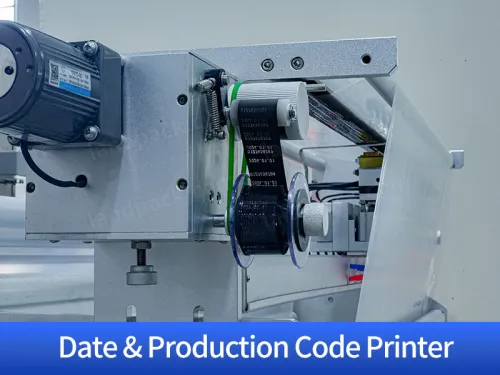

Ribbon date printing

PARAMETER

Powder Sachet Bag Packing Machine
Model	LD480G	LD720G	LD960G
Track Number	4~6Track	4~10Track	4~12Track
Filling Method	1.Volumetric cup; 2.Weigher
Capacity	Max.35 cycle/min
Sachet Size	L:45--120mm; W:35-60mm	L:45--120mm; W:35-90mm	L:45--120mm; W:35-120mm
Film Width & Thickness	Max.480mm; 0.07-0.1mm	Max.720mm; 0.07-0.1mm	Max.960mm; 0.07-0.1mm
Sealing Type	3/ 4 sides sealing	3/ 4 sides sealing	3/4 sides sealing
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa 0.8m³/min; 2.8kw	0.8 mpa 0.8m³/min; 4.1kw	0.8 mpa 0.8m³/min; 5.5kw
DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg	141516862130mm; 500kg
