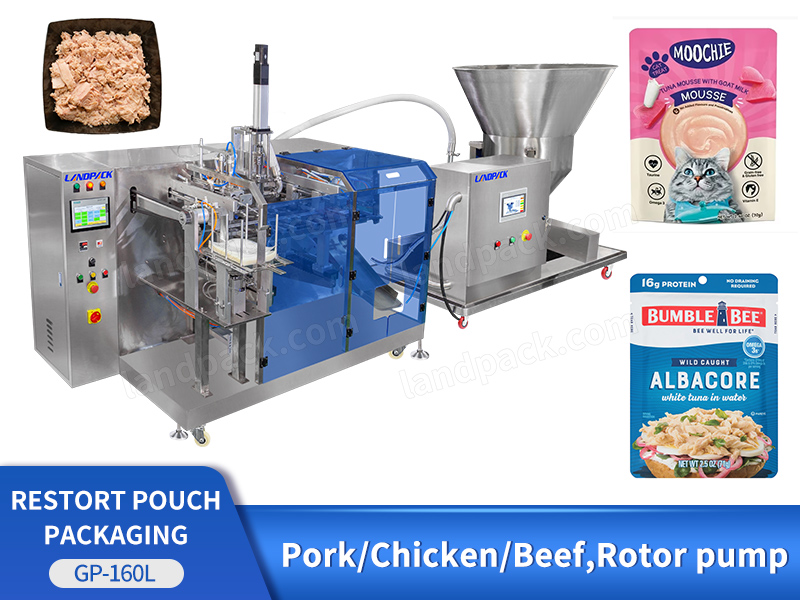

Automatic Retort Pouches Packing Machine for Minced Meat Sauce and Tuna Paste

Introduction:

It suitable for shrimp, prawns, fish, chicken, minced meat, tuna, seafood marinades, ready-to-eat meal components, soups, and sauces and fish paste. This machine guarantees safe and high-quality packaging, preserving the freshness and flavor of heat-processed items.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Retort Pouches Packing Machine for Minced Meat Sauce and Tuna Paste

FEATURES

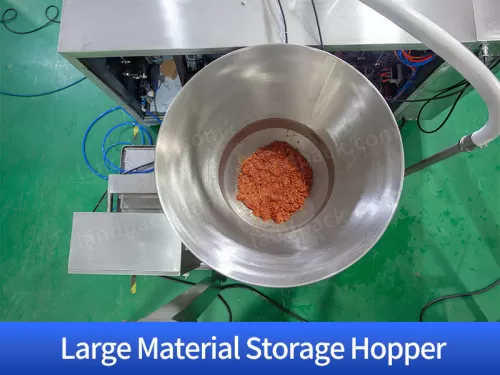

1. High-Capacity Storage Hopper: Engineered for high-output operations, this large storage hopper enables continuous and efficient production at elevated volumes.

2. Precision Servo Rotor Pump Filling System: Perfect for filling viscous materials and thick sauces, this system guarantees smooth and accurate dispensing.

3. Space-Efficient Design: The compact layout facilitates easy integration into diverse production environments, optimizing floor space.

4. User-Friendly Controls: Features an intuitive control panel that simplifies operation and monitoring, enhancing usability for operators.

5. Durable Construction: Built with high-quality materials to ensure long-lasting performance and reliability in demanding production settings.

Automatic Retort Pouches Packing Machine for Minced Meat Sauce and Tuna Paste

WORKFLOW

Pouch Loading

Pouch Picking

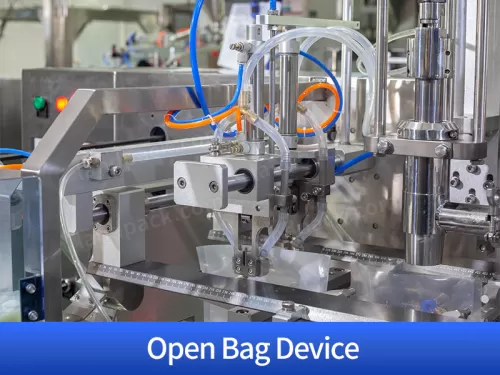

Pouch Opening

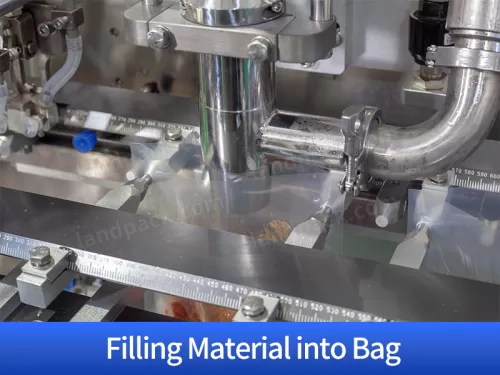

Automatic Liquid Filling

PARAMETER

	The Main Technical Parameters
	Model	LDSP-160A
	Packing material	Retort pouch, 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
	size	W: 80-160 mm
	Filling range	20-500g
	Packing speed	10-45 bags/min（speed is determined by the product filling quantity）
	Average precision	≤ ±1%
	Total power	2.5KW
	Weight	800 KG
	Main standard parts	1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system
	We can customize the suitable one for you according to your requiredment. Just Tell us : Weight or Bag Size required.
