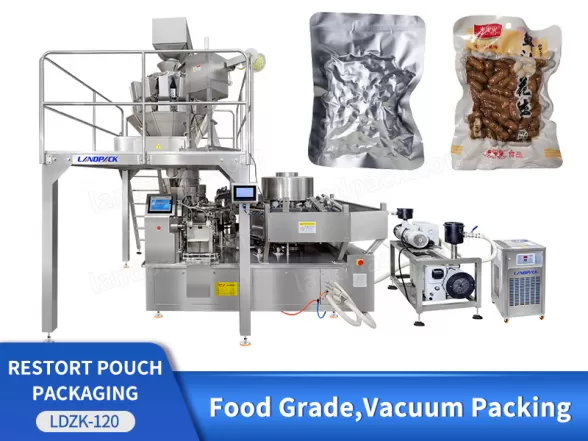

Automatic Rotary Vacuum Retort Pouch Packaging Machine For Pre-cooked Food

Introduction:

It is extensively utilized in the food sector for packaging a variety of products, including ready-to-eat meals, sauces, soups, meatballs, frozen seafood, frozen vegetables and preserved meats, ensuring a longer shelf life while maintaining quality.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Rotary Vacuum Retort Pouch Packaging Machine For Pre-cooked Food

FEATURES

1. Rapid Production Capability: Achieves operational speeds of 40-60 bags per minute, maximizing production efficiency.

2. Versatile Weight Measurement: Designed to measure and package products ranging from 100g to 2kg, with an easily adjustable target weight via a user-friendly touch screen interface.

3. Superior Vacuum Sealing: Ensures a high vacuum level, significantly prolonging the freshness and shelf life of packaged products.

4. Seamless Production Integration: Easily connects with other production machinery, enhancing overall workflow and automation.

5. Freshness-Preserving Absorber Feeder: Features an absorber feeder that maintains vacuum levels, further improving product freshness.

6. User-Friendly Interface: Equipped with an intuitive control panel that simplifies operation and adjustments for various packaging requirements.

7. Durable Construction for Reliability: Built with robust materials to ensure long-lasting performance and dependability in high-demand production environments.

Automatic Rotary Vacuum Retort Pouch Packaging Machine For Pre-cooked Food

WORKFLOW

1. Automatically bag feeding

2. Automatically bag opening

3. Automatically filling and bag bottom opening

4. Press product device

5. Bag mouth cleaning

6. Exhaust air

7. Take the bags to vacuum chamber

8. Output

PARAMETER

	The Main Technical Parameters
	Model	LD-8200V
	Bag Size	Width:70-120mm/120-200mm, Length:80-160mm/150-300mm
	Filling Volume	10-500g (Depending on type of products)
	Capacity	30-100bags/min (The speed depends on type of products and packaging material used)The highest can be 100 packs / minuteZipper Bag The heghest can be 40packs/minute
	Package Accuracy	Error≤±1%
	Total Power	2.5KW/5.5kw (220V/380V,3PH,50HZ)
	Demension	210014001700 mm/260019001700(LengthWidthHeight)
	Weight	1600KGS/3000kgs
	Compress Air Requirement	≥0.8m³/min supply by user
	Pouch Type	All type of heat sealable performed side seal bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout,Portable bag, zipper bag, hand luggage, edging bag 4 sides, edging bag 3 sides, paper bagetc.
	Application Product	1. Any product that can pack in bag, such as fish, poultry, meat, grains and other food items.2. Solid species: candy, peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, daily commodities, cooked food, pickles, puffed food, etc.3. Granule species: grain, refined monosodium glutamate, granular drug, capsule, seed, condiment, granulated sugar, chicken essence, melon seeds, nuts, pesticide, fertilizer, feed etc.4. Liquid species: detergent, fruit juice, miller wine, soy sauce, vinegar, drinks etc.5. Thick liquid species: chilli sauce, tomato sauce, peanut butter, jam, bean sauce etc.
	Work Process	Station 1 Giving Bag Feed many pouches or bags in the bag magazine, our main bag magazine can move up and down, you can feed bags very easily when it moved down, and when it moved up, there are a mechanical arm with two vacuum caps will take bag up and then transmit it to the mechanical gripper on the rotary table.Station 2 Date Printing (option)Station 3 Opening BagTo open stand (flat) pouches from top and bottom with two sets vacuum caps.Station 4 Filling and consolidate 1Measured its weight or volume by scales.There are an opening detection device insertinto the open bagor pouch to expanding it and detect if it is open or not.Station 5 Filling and consolidate 2(Option)Station 6 Bufferingto make bag more straight and to prevent material out from bagStation7 Vacuum and sealingto transform to vacuum equipmentStation 8 Forming and OutputThese 8 stations can change its working function as customized design
