Automatic Tuna Meat Chicken High Viscous Food Retort Pouch Doypack Packing Machine With Heating Device

Introduction:

Perfect for industries requiring long-lasting, shelf-stable packaging, this machine efficiently packs ready-to-eat meals, sauces, soups, and tuna meat into retort pouches. It ensures durability, and high-temperature sterilization, and preserves product freshness and quality.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Tuna Meat Chicken High Viscous Food Retort Pouch Doypack Packing Machine With Heating Device

FEATURES

Independent Hopper Control Box: Stores up to 8 different filling volume presets for convenience.

Vertical Bag Feeder: Holds more bags, improving operational speed and efficiency.

5-Blade Rotor Measuring Pump: Suitable for a wide range of viscosities, including thick foods like tuna, chicken, beef, and other high-viscosity products.

100L Heated Stirring Hopper: Stainless steel design with heating and stirring functions, easy to clean.

Automatic Tuna Meat Chicken High Viscous Food Retort Pouch Doypack Packing Machine With Heating Device

WORKFLOW

Pouch Loading

Pouch Picking

Pouch Opening

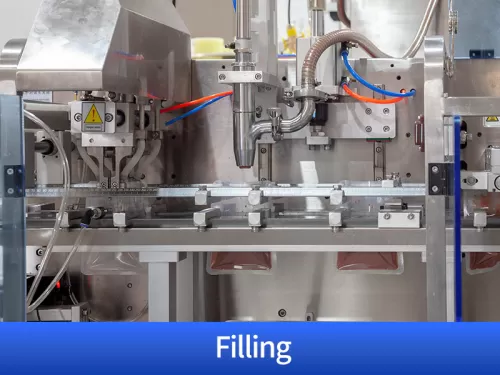

Automatic Liquid Filling

Pouch Sealing

Product Out

PARAMETER

Retort Pouch Premade Pouch Packing Machine
Type	LDSP-160	LDSP-160Y	LDSP-210
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
