Sauce Packing Filling Machine / Line

Home > Applications > Liquid Filling Machine / Line > Sauce Packing Filling Machine / Line > Automatic 4 lane 7 lane Stick Bag Pouch Sauce Jam Multilane Liquid Packing Machine

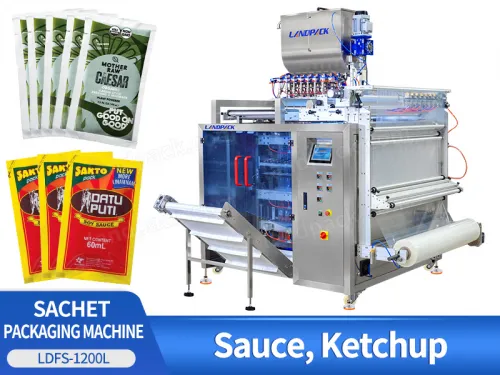

Automatic 4 lane 7 lane Stick Bag Pouch Sauce Jam Multilane Liquid Packing Machine

Introduction:

This packaging machine is suitable for all kinds of paste, viscous liquid packaging, such as chili sauce, honey, ketchup, pizza sauce, jam, peanut butter, tartar sauce, chocolate cauce, cream, liquid butter, juice, shower gel, shampoo etc.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

This packaging machine is suitable for all kinds of paste, viscous liquid packaging, such as chili sauce, honey, ketchup, pizza sauce, jam, peanut butter, tartar sauce, chocolate cauce, cream, liquid butter, juice, shower gel, shampoo etc.

Automatic 4 lane 7 lane Stick Bag Pouch Sauce Jam Multilane Liquid Packing Machine

FEATURES

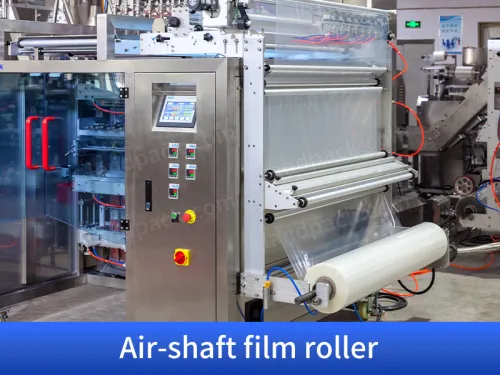

1. The outer sealing paper is controlled by stepping motor, the bag length is stable and the positioning is accurate;

2. Adopt PID temperature controller to control the temperature more accurately;

3. PLC is used to control the movement of the whole machine, man-machine interface display, easy to operate;

4. All accessible materials are made of SUS304 stainless steel to ensure the hygiene and reliability of products;

5. Some working cylinders adopt original imported parts to ensure the accuracy and stability of their work;

Automatic 4 lane 7 lane Stick Bag Pouch Sauce Jam Multilane Liquid Packing Machine

WORKFLOW

01

Bag Formation

02

Liquid Filling

03

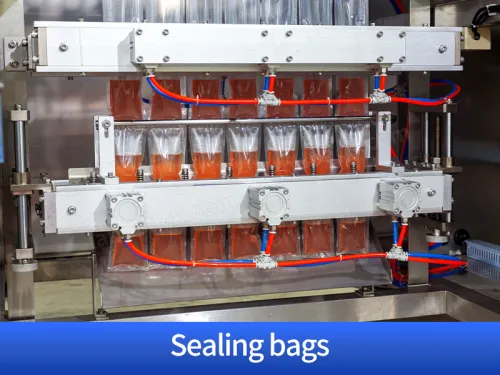

Sealing

04

Cutting

05

Batch Coding

06

Counting

07

Finished Product Output

PARAMETER

Automatic 4 lane 7 lane Stick Bag Pouch Sauce Jam Multilane Liquid Packing MachineAutomatic Liquid Sachet Packing Machine
ModelLD-480YLD-720YLD-960Y
Track Number4-6 Track4-10 Track4-12 Track

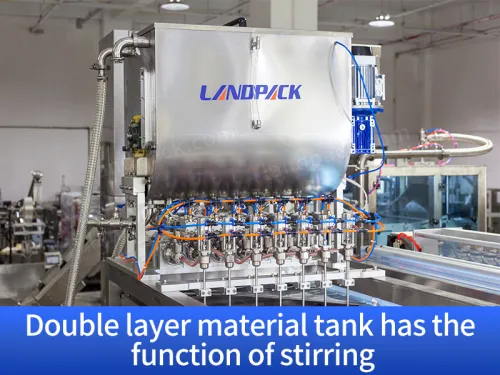

Filling Method1. Piston pump; 2. Peristaltic Pump
CapacityMax.40 cycles/min
Sachet SizeL: 45-120mm; W: 35-60mmL: 45-120mm; W: 35-90mmL: 45-120mm; W: 35-120mm
Film Width & ThicknessMax.480mm; 0.07-0.1mmMax.720mm; 0.07-0.1mmMax.960mm; 0.07-0.1mm
Sealing Type3/4 sides sealing3/4 sides sealing3/4 sides sealing
Cutting Type1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power0.8 mpa, 0.8m³/min, 2.8kw0.8 mpa, 0.8m³/min, 4.1kw0.8 mpa, 0.8mm³/min, 5.5kw
DIM & WT950*1470*1750mm; 300kg1153*1654*1750mm; 400kg1415*1686*2130mm; 500kg


Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
