Sauce Packing Filling Machine / Line

Home > Applications > Liquid Filling Machine / Line > Sauce Packing Filling Machine / Line > Automatic Premade Pouch Rotary Filling Machine For Sauce Jam Ketchup Mayonnaise

Automatic Premade Pouch Rotary Filling Machine For Sauce Jam Ketchup Mayonnaise

Introduction:

Suitable for All Kinds of Pre-Made Pouches, and liquid packing, such as sauce, honey, syrup, paint, Mayonnaise, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, paste, etc.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

Suitable for All Kinds of Pre-Made Pouches, and liquid packing, such as sauce, honey, syrup, paint, Mayonnaise, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, paste, etc.

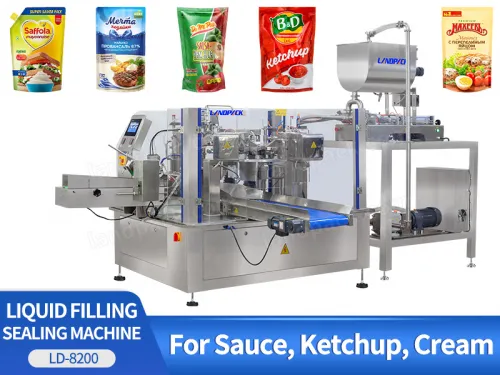

Automatic Premade Pouch Rotary Filling Machine For Sauce Jam Ketchup Mayonnaise

FEATURES

1. Wide range of pouches: All kinds of pre-made pouches such as flat and stand-up pouches (with/without zip).

2. Easy to operate: PLC and color panel, fault indication on the panel.

3. Easy to adjust: Only about 10 minutes to change different pouches.

4. Frequency control: Speed can be adjusted by frequency conversion within the range.

5. Waterproof design: The machine surface can be washed down, so easy cleaning and has a longer useful life.

6. No pouch/incorrect pouch opening-no fill-no seal, machine alarm.

7. Machine alarm and stop when the inadequate air pressure.

8. Safety guards with safety switches, machine alarms and stops when the safety guards are opened.

9. Hygienic construction, the product contact parts are adopted sus304 stainless steel.

10. Imported engineering plastic bearings, no need for oil, no contamination.

11. Oil-free vacuum pumps, avoid the pollution of the production environment.

Automatic Premade Pouch Rotary Filling Machine For Sauce Jam Ketchup Mayonnaise

WORKFLOW

01

Piston metering device

02

Horizontal bags feeding

03

Date printing

04

Zip lock openning

05

Up/down bag opening

06

Double heads filling

07

Twice heating sealing

08

Finished product ouput

PARAMETER

Automatic Premade Pouch Rotary Filling Machine For Sauce Jam Ketchup MayonnaiseModelLD-8200/LD-8250
Packing material3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
SizeW: 70-200/100-250
Filling range10-1000g/20-2500g
Packing speed40-60bag/min(speed is determined by the product filling quantity)
Average precision≤ ±1%
Total power2.5KW
Dimensions1900mm X 1570mm X 1700mm(L*W*H)
Workflowgiving bag→coding →opening →filling 1 →filling 2→auxiliary→exhaust→heat sealing→forming and output product
Main standard parts1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperature controller 8. Vacuum pump 9. Inverter 10. Output system

Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
