Sauce Packing Filling Machine / Line

Home > Applications > Liquid Filling Machine / Line > Sauce Packing Filling Machine / Line > Automatic Sauce Bag Vertocal Form Filling Packaging Machine

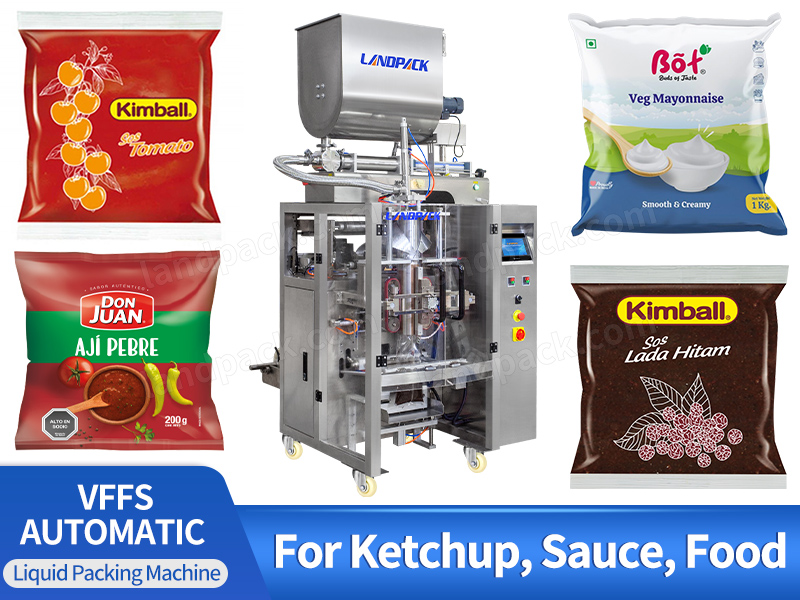

Automatic Sauce Bag Vertocal Form Filling Packaging Machine

Introduction:

Suitable for normal type, high ropy type liquid items, such as sacue, chili sauce, ginger garlic paste, paste, ketchup, peanut butter, shampoo, cream, jam, honey, juice, syrup, etc.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

Suitable for normal type, high ropy type liquid items, such as sacue, chili sauce, ginger garlic paste, paste, ketchup, peanut butter, shampoo, cream, jam, honey, juice, syrup, etc.

FEATURES

1. Horizontal Mixer: This mixer ensures thorough blending of the sauce, resulting in a consistent mixture.

2. Heating Device: Equipped with a heating mechanism, this feature prevents any clogs or blockages during the process.

3. Anti-Leak Valve: The system incorporates an anti-leak valve to prevent any unintended sauce leakage.

Automatic Sauce Bag Vertocal Form Filling Packaging Machine

WORKFLOW

01

Stirring Device: Used to achieve uniformity in the sauce.

02

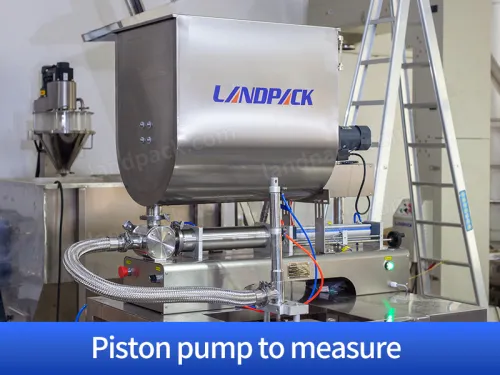

Piston Pump: Precisely measures and dispenses the sauce.

03

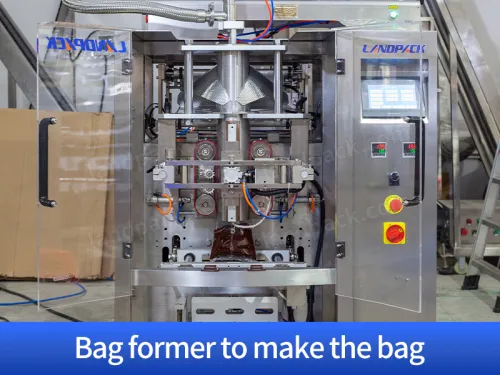

Bag Former: Shapes the bag for packaging.

04

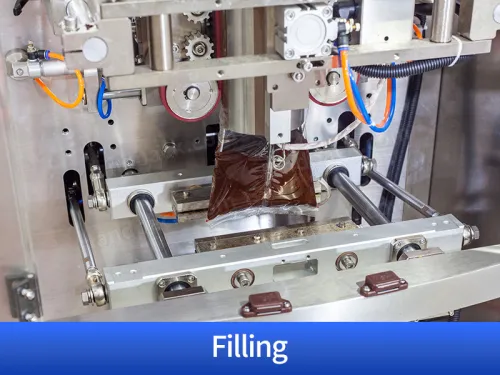

Filling: The sauce is filled into the bag.

05

Sealing: The bag is securely sealed to maintain freshness.

PARAMETER

Automatic Sauce Bag Vertocal Form Filling Packaging Machine
Model
LD-420L
LD-520L
LD-720L
Film width
Max.420mm
Max.520mm
150-Max.720mm
Bag length
80-300mm
60-400mm
60-500mm
Bag width
60-200mm
100-250mm
65-350mm
Film roll diameter
Max.600mm
Max.600mm
Max.600mm
Packaging rate
5-60 bags/min
5-40 bags/min
5-30 bags/min
Range of measurement
1000ml
2000ml
5000ml
Film thickness
0.04-0.12mm
0.04-0.12mm
0.04-0.12mm
Power
220V, 50/60Hz, 3kw
220V, 50/60Hz, 3kw
220V, 50/60Hz, 3.5kw
Machine size(L*W*H)
1217*1015*1343mm
1488*1080*1490mm
1780*1350*2050mm

Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
