Sauce Packing Filling Machine / Line

Home > Applications > Liquid Filling Machine / Line > Sauce Packing Filling Machine / Line > High Quality Sauce Doypack Pouch Ziplock Bag Packing Machine Premade Pouch Packaging Machine

High Quality Sauce Doypack Pouch Ziplock Bag Packing Machine Premade Pouch Packaging Machine

Introduction:

Fully automatic doypack bag packing machine is suitable for liquid material packaging in food, daily necessities and other industries, such as ketchup, tartar sauce, pasta sauce, mayonnaise, honey, soy sauce, broth, milk, juice, sports drinks, Body wash, shampoo, laundry detergent, etc.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

Fully automatic doypack bag packing machine is suitable for liquid material packaging in food, daily necessities and other industries, such as ketchup, tartar sauce, pasta sauce, mayonnaise, honey, soy sauce, broth, milk, juice, sports drinks, Body wash, shampoo, laundry detergent, etc.

High Quality Sauce Doypack Pouch Ziplock Bag Packing Machine Premade Pouch Packaging Machine

FEATURES

1. Various machine models are available to accommodate a wide range of premade bag sizes.

2. The main machine structure can be customized for different bag shapes, including doypack zipper bags, 3/4 side seal bags, spout pouches, stand-up bags, and irregular bags.

3. An upgraded PLC control system simplifies parameter setting via a touch screen interface.

4. The machine can be equipped with different metering systems, such as weighers, liquid pumps, auger fillers, and bucket chains, to handle various products for filling and packing into premade bags.

Automatic Detergent Horizontal Form Fill Seal Machine Premade Pouch Packing Machine

WORKFLOW

01

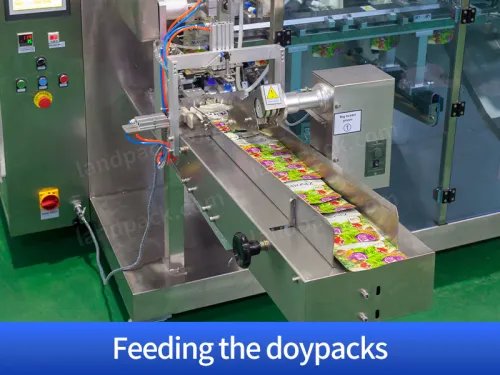

Automatic Bags Feeding

02

Automatic Bags Open

03

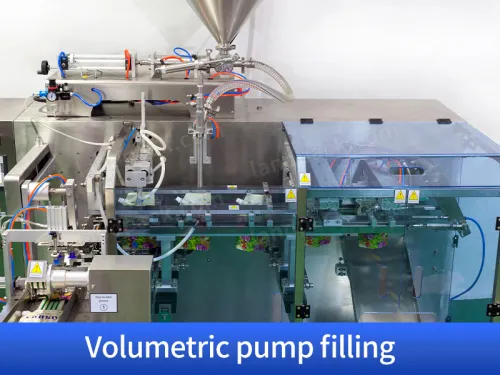

Automatic Filling

04

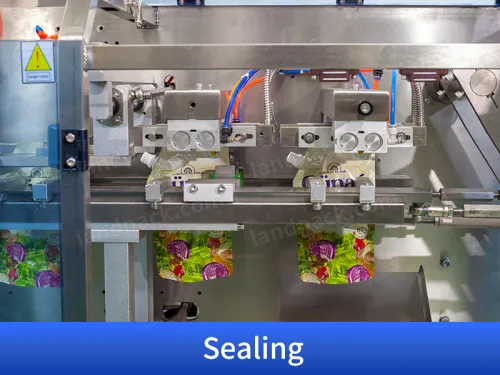

Automatic Bags Sealing

PARAMETER

High Quality Sauce Doypack Pouch Ziplock Bag Packing Machine Premade Pouch Packaging MachineTypeLDSP-160LDSP-160YLDSP-210LDSP-260
Bag Type3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size110-230mm*80-160mm(L*W)70-100mm*110-230(L*W)100-210mm/110-320mm(L*W)100-260mm/110-320mm(L*W)
Filling Range10g-100g10g-100g10g-1kg10g-3kg
Packing Speed20-45bags/min(speed is determined 25-50bags/min(speed is determined 20-50bags/min (speed is determined20-50bags/min (speed is determined
by the product filling quantity)by the product filling quantity)by the product filling quantity)by the product filling quantity)
Machine weight800KG800KG900KG1000KG
Total Power2.0KW2.0KW2.0KW2.0KW
Work Flow1.Giving bag     2. Pick up the bag(coding)     3.Open the bag up and down     4.Filling   5.Heating sealing 6.Output of product
Dimensions1750mm X 1285mm X 1360mm(L*W*H)2140mm X 1366mm X 1360mm(L*W*H)2140mm X 1366mm X 1360mm(L*W*H)
CollocationScrew metering,screw elevator

Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
