High Speed 6 Lane 3/ 4 Sealing Sachet Pouch Bag Sauce Packing Packaging Machine

Introduction:

Suitable for: honey, ketchup, mayonnaise, peanut butter,soybean paste,chocolate sauce, sweet and sour sauce,Thousand Island dressing,XO sauce, salad dressings and more.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

Suitable for: honey, ketchup, mayonnaise, peanut butter,soybean paste,chocolate sauce, sweet and sour sauce,Thousand Island dressing,XO sauce, salad dressings and more.

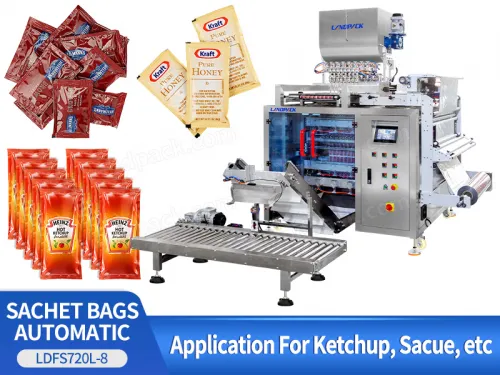

High Speed 6 Lane 3/ 4 Sealing Sachet Pouch Bag Sauce Packing Packaging Machine

FEATURES

1. Multi lanes machine can produce multi lanes bags at same time.

2. Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

3. A multi-head ribbon date printer is included to print date information on each lane.

4. High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.

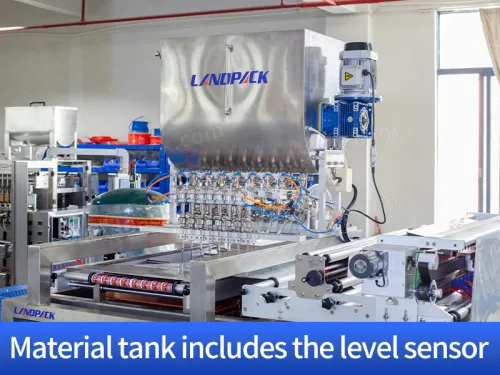

5. The double-layer material tank features stirring and heating functions for improved sauce fluidity.

High Speed 6 Lane 3/ 4 Sealing Sachet Pouch Bag Sauce Packing Packaging Machine

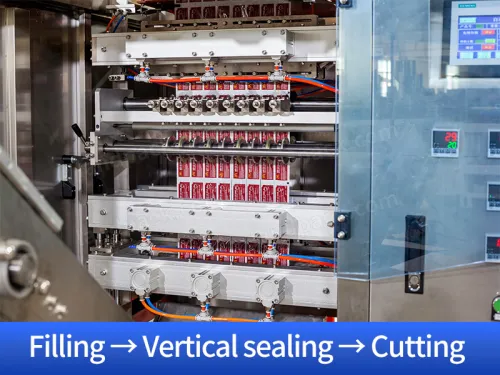

WORKFLOW

01

Bag Formation

02

Liquid Filling

03

Sealing

04

Cutting

05

Batch Coding

06

Counting

07

Finished Product Output

PARAMETER

High Speed 6 Lane 3/ 4 Sealing Sachet Pouch Bag Sauce Packing Packaging MachineAutomatic Liquid Sachet Packing Machine
ModelLD-480YLD-720YLD-960Y
Track Number4-6 Track4-10 Track4-12 Track
Filling Method1. Piston pump; 2. Peristaltic Pump
CapacityMax.40 cycles/min
Sachet SizeL: 45-120mm; W: 35-60mmL: 45-120mm; W: 35-90mmL: 45-120mm; W: 35-120mm
Film Width & ThicknessMax.480mm; 0.07-0.1mmMax.720mm; 0.07-0.1mmMax.960mm; 0.07-0.1mm
Sealing Type3/4 sides sealing3/4 sides sealing3/4 sides sealing
Cutting Type1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power0.8 mpa, 0.8m³/min, 2.8kw0.8 mpa, 0.8m³/min, 4.1kw0.8 mpa, 0.8mm³/min, 5.5kw
DIM & WT950*1470*1750mm; 300kg1153*1654*1750mm; 400kg1415*1686*2130mm; 500kg


Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
