Applications

Multifunction Sauce Sided Seal Sachet Packing Machine

Introduction:

Suitable for sided sealing of conventional liquids such as sauce, chocolate sauce, ketchup, chili sauce, shampoo, laundry detergent, honey, vitamin water, juice drinks, oil, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Suitable for sided sealing of conventional liquids such as sauce, chocolate sauce, ketchup, chili sauce, shampoo, laundry detergent, honey, vitamin water, juice drinks, oil, etc.

Multifunction Sauce Sided Seal Sachet Packing Machine

FEATURES

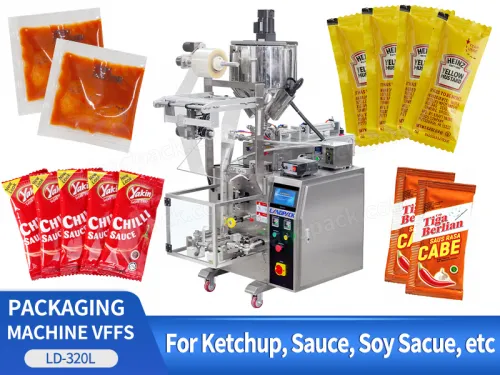

1. LD-320L High-Temperature Chocolate Sauce Filling Machine: Designed for high-temperature chocolate sauce applications.

2. Stainless Steel 304 Storage Hopper: Durable and resistant to corrosion.

3. Thermal and Stirring Device: Maintains chocolate sauce temperature and consistency.

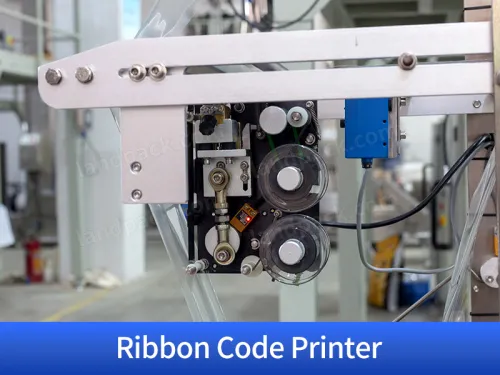

4. Ribbon Code Printer: Prints product information directly on packaging.

5. Food-Grade High-Temperature Durable Tube: Ensures safe and reliable transfer of chocolate sauce.

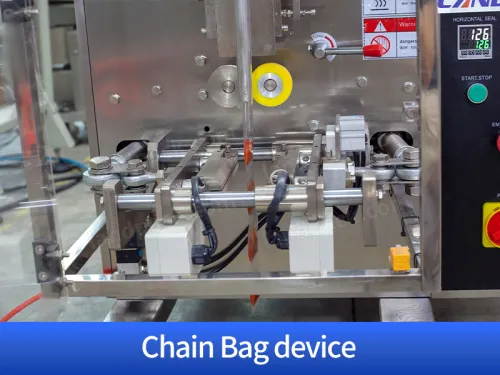

6. Chain Bag Device: Allows flexible adjustment of bag quantities.

7. Protective Cover: Ensures worker safety during operation.

Multifunction Sauce Sided Seal Sachet Packing Machine

WORKFLOW

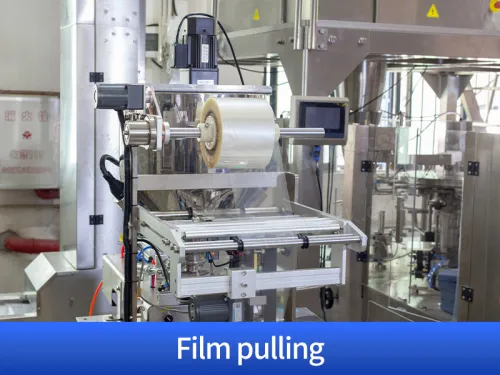

Automatic Film Roll Making

Automatic Liquid Filling

Automatic Sealing

PARAMETER

Model	LD-320L	LD-380L
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70 bags/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
*Machine size(LWH)*	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg
