Applications

Automatic Seed Grain Rice Stand Up Pouch Filling Packing Machine

Application:

Apply to pack bulk grain, slice, short bar material products such as seed, rice, oatmeal, cereal oats, puffy food, popcorn, shrimp chip, salt, sugar, sunflower seed, peanut, beans, nuts, pistachio, peas, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

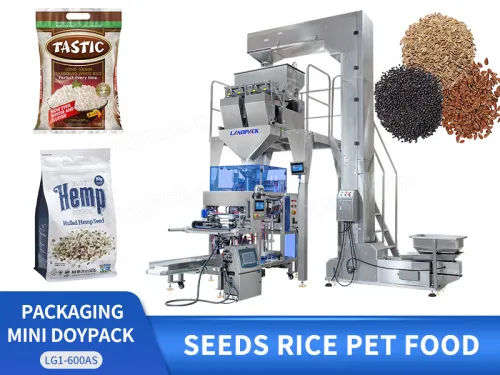

Automatic Seed Grain Rice Stand Up Pouch Filling Packing Machine

FEATURES

1. Can pack up to 10kg, strong compatibility.

2. Electronic scale measurement with high accuracy.

3. Single station filling and sealing, cost-effective.


WORKFLOW

Z-type feeding conveyor

2 heads linear weigher

Automatic premade pouch feeding

Automatic inkjet date printing

Automatic pick up pouches

Automatic opening pouches

Automatic weighing filling material into pouches

Automatic heat sealing pouches-finished products

PARAMETER

	Automatic 1-10kg Grain Seeds Stand Up Pouch Filling Packing Machine
	Model	LG1-600AS
	Bag Material	Multilayer Composite Premade Bag (e.g.: PET/PE)
	Bag Type	3 Side Seal Bag, Stand-up Bag
	Upgradable Bag Type	Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device)
	Size Range	80mm≤W≤300mm 100mm≤L≤430mm
	Speed	0-15bags/min
	Sealing Type	Straight grain, the pitch is 1mm (Optional reticulate)
	Sealing Width	10mm (5--20mm can be customized)
	Voltage	220V, Single-phase, 50/60HZ, 1.2KW
	Air Pressure	0.65Mpa
	Air Consumption	0.3m³/min (Standard machine, no additional function)
	Body Dimension	17706001360mm
	Packing Dimension	18607101650mm (Export non-fumigation wooden case)
