Application:
This machine is suitable for the packaging of various granular materials in the food, chemical, daily chemical and other industries, such as: sunflowder seed, chia seed, dried fruit, nuts, beans, seeds, grains, potato chips, candy, onion rings, frozen food, pet food, etc.
Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity
VIDEOS
Application
This machine is suitable for the packaging of various granular materials in the food, chemical, daily chemical and other industries, such as: sunflowder seed, chia seed, dried fruit, nuts, beans, seeds, grains, potato chips, candy, onion rings, frozen food, pet food, etc.
FEATURES
1. Computerized touch screen, easy to adjust and operation, and easy to change products, with the exception appearance system,easily and rapidly to repair. 2. Could automatically to finish making bags, sealing, printing, and optional functions. 3. Design with alarming for clipping material, door unclosed, rolled film in wrong position, no print tape, no rolled film, etc. 4. The advanced design ensures that it is very convenient for adjustment, operation, and maintenance when different profession use it. 5. Separate PID temperature controller, suitable for various packing materials. 6. Multi-union roll film pulling system make film running more smooth. 7. Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape. 8. Sophisticated sealing framework achieve the consistency of bag sealing and cutting. 9. Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing. 10.Low loss, labor saving, easy for operation and maintenance. 11.Equipped with a labeling machine, metal detector and a weight selection scale to ensure the safety of packaged products and control weight errors.

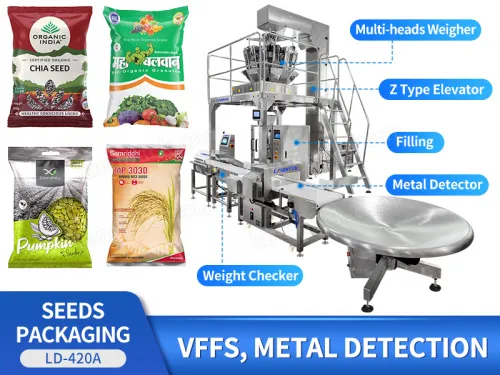

WORKFLOW

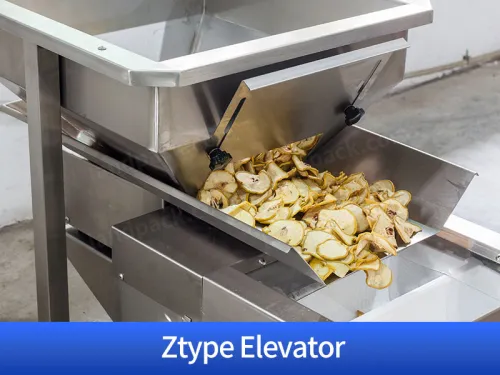

Z Type Buckets Feeding

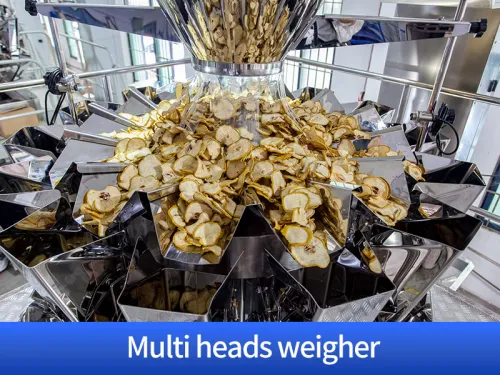

Multi Heads Weigher

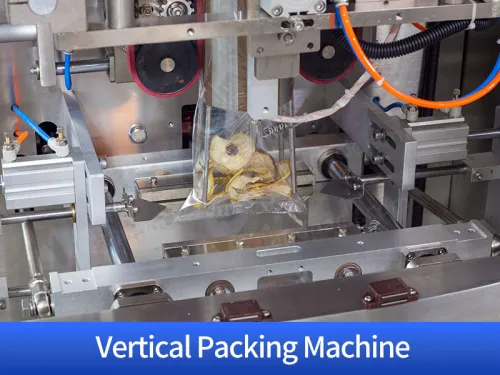

Pouch Packing

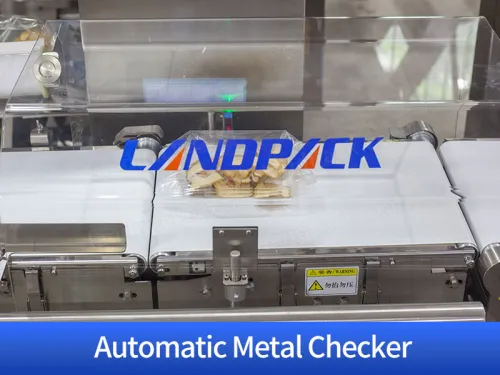

Automatic Metal Checker

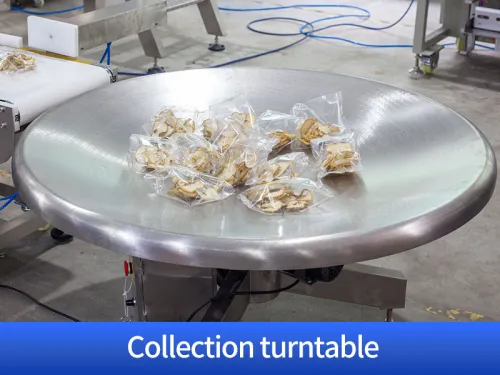

Finished Product Output
PARAMETER
Vertical Packing Machine | |||||||
Model | LD-420 | LD-520 | LD-720 | LD-900 | LD-1050 | LD-1200 | |
Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | |
Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm | |
Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm | |
Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm | |
Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-20bag/min | 5-20bag/min | 5-20bag/min | |
Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm | |
Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
METAL DETECTOR | ||
Model | LD-MD1 | |
Voltage | 220V, 50~60Hz | |
Power | 90W | |
Conveyor Width | 400mm (Customizable) | |
Max Load | 15kg | |
Detection Height | 200mm (Customizable) | |
Applicable Metal | Ferrous (φ≥1.2mm), | |
non-ferrous (φ≥1.8mm) | ||
stainless steel (φ≥2.3mm) | ||
Speed | 25-30m/min | |
Machine weight | 220kg | |
Size | 133*72*100cm |

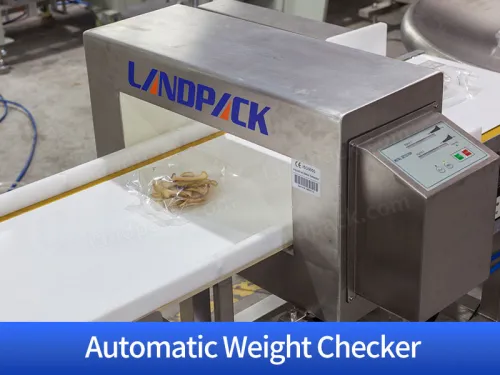

Weight Detector | ||
Weighing range | 5-1000g/10-5000g(Optional or specified) | |
Detection object size | L:1-300mm (or customized) | |
W:1~220 mm/1-240mm/1-300mm (or customized) | ||
H:1~100mm/1~150mm (optional or customized) | ||
Weighing section size | L:400 mm (or customized);w:220/300mm (Optional or specified) | |
Touch screen | 10.1 inch color TFT touch display | |
Minimum scale | 0.1g ( Based on Max. weighing range) | |
Sorting accuracy | +0.1g~+1g/+ 0.7g~+1.5g (Based on size of weighing area) | |
Belt height from ground | 680mm~750mm(Or customized height) | |
Conveyor belt speed | 20m/min fixed speed or 15-30m/min adjustable speed (or customized) | |
Material. Surface | stainless steel surface polishing | |
Language | Chinese/English (or customized) | |
Rejection Method | Sound and light alarm, Air blow type or push rod type rejection(More rejection methods are available) |
