Application:
Apply for the packaging of medical supplies, food, hardware and other particle in bulk such as peanut ,spices,sugar, coffee, seeds and dry nut/fruit
Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity
VIDEOS
Application
Apply for the packaging of medical supplies, food, hardware and other particle in bulk such as peanut ,spices,sugar, coffee, seeds and dry nut/fruit
FEATURES
1. Full stainless steel with food grade and energy saving.

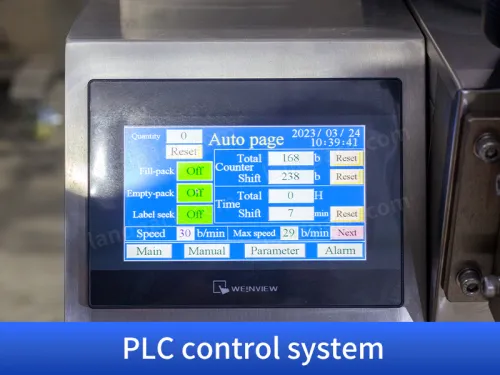

2. It is PLC control system to ensure the easy operation and the photocell eye tracking to ensure the high accuracy.
3. With the help of the multi-functional alarm,it can automatic rectification by itself.
4. Divided design,high efficiency,low noise equipment,running smoothly.
WORKFLOW

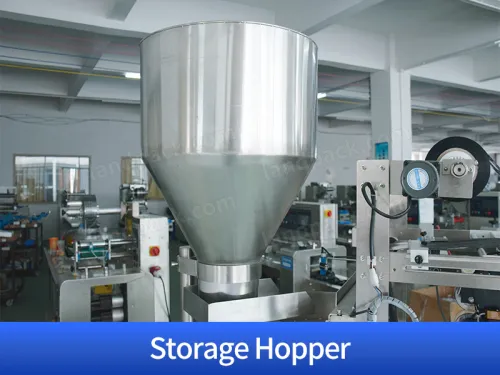

Material Feeding

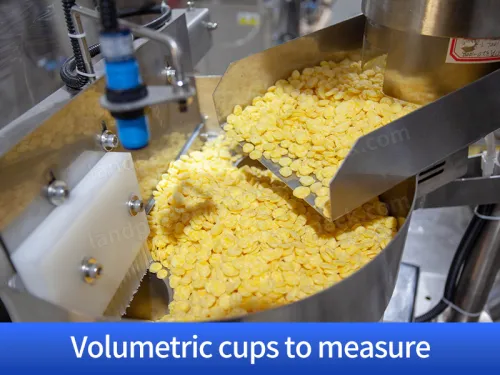

Volumetric Cup Measuring

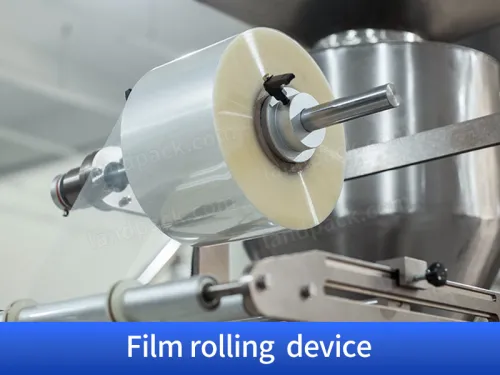

Bag Forming

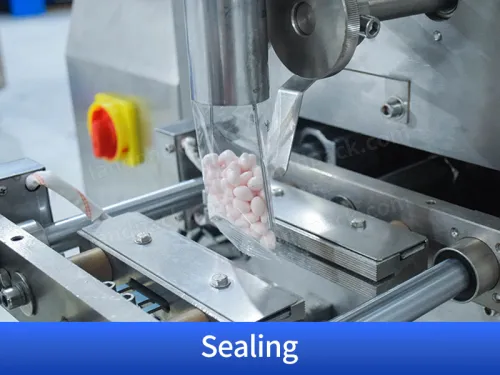

Bag Sealing
Finished Product Output
PARAMETER

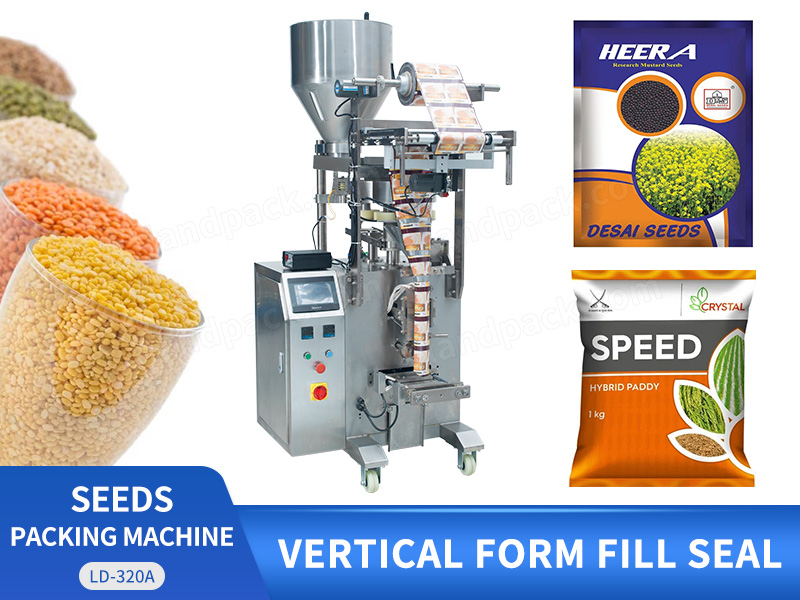

Semi Automatic Granule Vertical Packing Machine | |||
Model | LD-320 | LD-380 | |
Film width | 120-320mm | 180-380mm | |
Bag length | 50-200mm | 60-280mm | |
Bag width | 50-150mm | 60-180mm | |
Diameter of film roll | Max.300mm | Max.320mm | |
Packing speed | 35-70bag/min | ||
Measuring range | 50-500ml | 50-750ml | |
Film thickness | 0.04-0.07mm | ||
Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW | |
Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm | |
Machine weight | About 300kg | About 450kg |
I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
