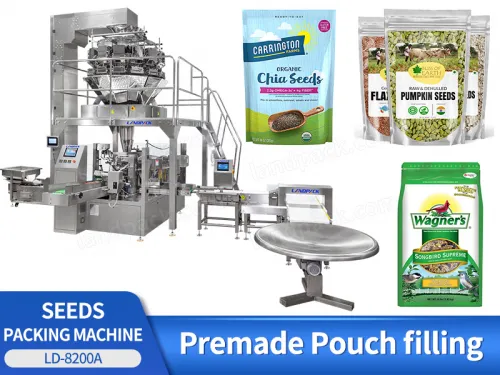

Fully Automatic Vegetable Seeds Rotary Doypack Premade Pouch Packing Machine

Application:

It automatically opens, fills and seals a wide variety of products including nuts, cashew, beans, peanut, candy, sunflower seeds, popcorn, almond, dry fruit, vegetable salad, frozen food, jelly, biscuit, chocolate, pet food, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Fully Automatic Vegetable Seeds Rotary Doypack Premade Pouch Packing Machine

FEATURES

1. Flexible Machine suits for different bag sizes.

2. Pre-made bag packing: perfect sealing quality, upgrade the finished product.

3. Stable and high-speed running.

4. Especially for the easy filling granular products with Premade Pouches that required the high speed production.

Fully Automatic Granule Rotary Doypack Premade Pouch Packing Machine

WORKFLOW

Granule Material Feeding

Granule Material weighing

Premade Pouch Opening Filling Sealing

Finished Product Output

Weighing Detecting

Metal Detecting

PARAMETER

			Automatic Doypack Packing machine
			Model	LD-8200/LD-8250
			Packing material	3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
			Size	W: 70-200/100-250mm
			Filling range	10-1000g/20-2500g
			Packing speed	40-60bags/min（speed is determined by the product filling quantity）
			Average precision	≤ ±1%
			Total Power	2.5 KW
			Dimensions	1900mm1570mm1700mm（LWH）
			Work flow	giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
			Main standard parts	1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperaturecontroller 8. Vacuum pump 9. Inverter 10. Output system
