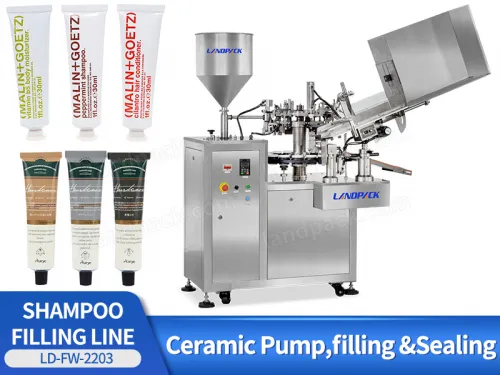

Automatic Aluminium Tube Shampoo Filling And Sealing Machine

Introduction:

It suitable for automatic metal/aluminum tube filling and sealing. It is the economical equipment for industry of glue, medical, pharmaceutical, foods and etc. For example, shampoo, hair colorante, toothpaste, leather oil, glue etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Aluminium Tube Shampoo Filling And Sealing Machine

FEATURES

The frequency conversion is used to adjust speed.

Sealing for severals times are realized in the same machine

No tube no filling function.

It is widely used for food and beverage industry, chemical industry, cosmetic industry, pharmaceutical industry, and etc.

Automatic Aluminium Tube Shampoo Filling And Sealing Machine

WORKFLOW

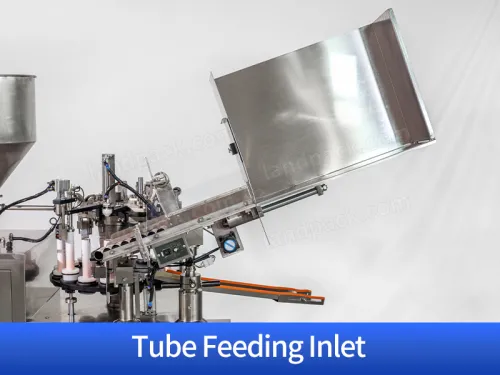

Empty Tube Feeding

Honey Viscous Liquid Filling

Tube Sealing

Finished Output

PARAMETER

	Tube Filling And Sealing Machine
	Model	LFF-ZW-08
	Tube material	Aluminum / Metal tube
	Tube diameter	φ15—φ70
	Tube length	60—280（customizable）
	Filling volume	10—480ml/pcs（adjustable）
	Filling accuracy	≤±1%
	Product capacity	1800—4000 pcs/h（adjustable）
	Working pressure	0.55—0.65Mpa
	Motor power	2KW (380V/220V 50Hz/60Hz, three phase)
	Working Position	10Automatic Aluminum Tube Filling And Sealing Machine with Cover Pcs
