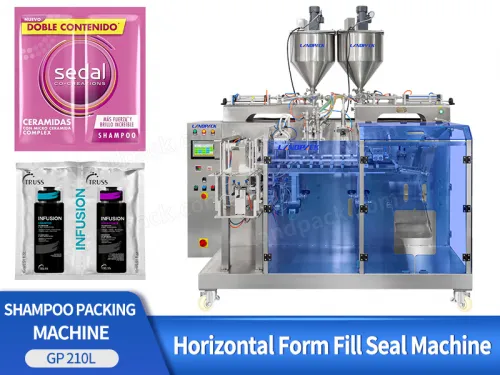

Automatic Horizontal Different Shampoo Premade Twin Pouch Filling Packing Machine

Introduction:

Automatic horizontal different liquid premade twin pouch filling packing machine, it is suitable for packing liquid standing bags, pre-made bags, zipper bags packaging, such as shampoo, ketchup, sauce, paste, juice, cream, jam, laundry detergent, hand soap, honey, milk, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Horizontal Different Shampoo Premade Twin Pouch Filling Packing Machine

FEATURES

1. Rapidly change bag specification in one-click antomaticadjustment.

2. Single shaft and the GAM design , faster packing apeed,more stable operation , easier maintence and defective rate reducting.

3. Modular heating ,temperature control is more accurate , heating fault has alarm prompt.

4. Adcanced design idea, reduce the material loss, ensure the stability of operation, extend the operation life.

5. Simple and convenient operation, adopt the adcanced PLC + POD(touchscreen) electric control system and man-machine interface.

Automatic Horizontal Different Shampoo Premade Twin Pouch Filling Packing Machine

WORKFLOW

Bag Giving

Open Bag

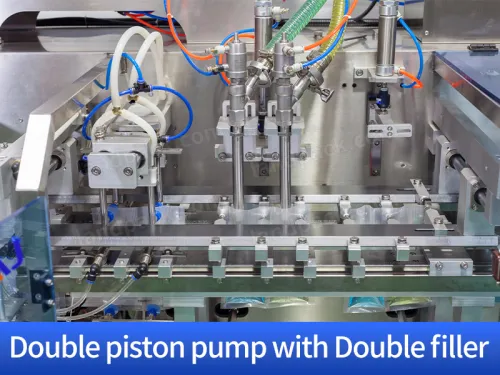

Peristaltic Pumps For Measuing The Filling Range

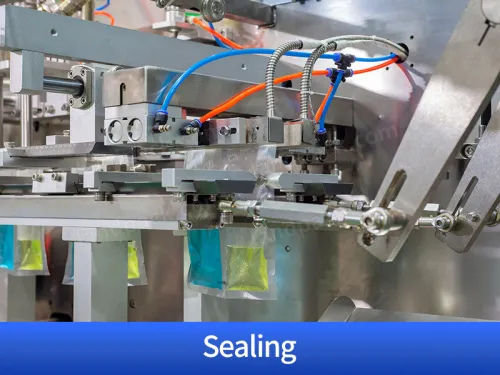

Double Sealing

Finished bag Output

PARAMETER

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined	25-50bags/min(speed is determined	20-50bags/min (speed is determined	20-50bags/min (speed is determined
Packing Speed	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
