Automatic Shampoo Filling Capping And Labeling Line

Introduction:

Automatic shampoo filling capping labeling line,  it is recommended for a wide variety of products including shampoo, hand sanitizer, pesticide, syrup, ketchup, tomato sauce, oil, chili sauce, honey, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

Automatic shampoo filling capping labeling line,  it is recommended for a wide variety of products including shampoo, hand sanitizer, pesticide, syrup, ketchup, tomato sauce, oil, chili sauce, honey, etc.

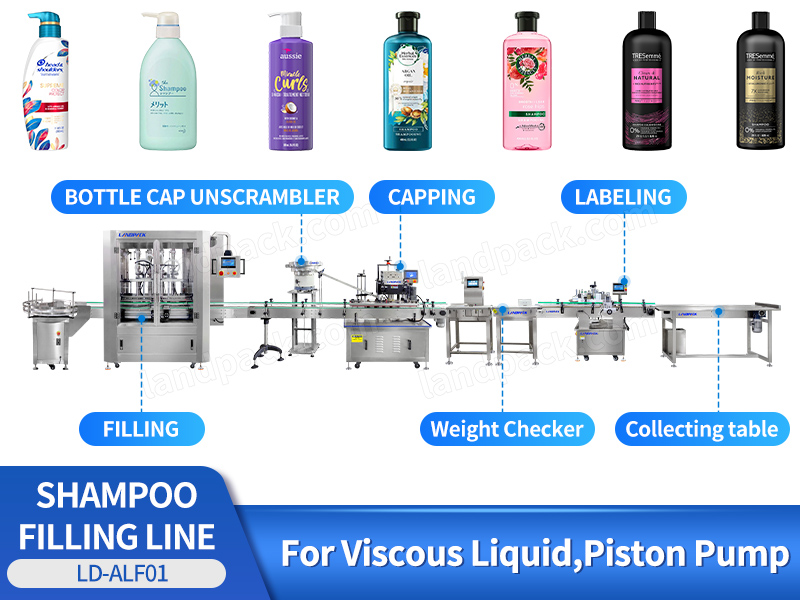

Automatic Shampoo Filling Capping And Labeling Line

FEATURES

1.This production line adopts automation technology, imported PLC, imported inspection light eye, frequency converter and other electrical appliances, pneumatic components. It has the characteristics of high efficiency, intelligence, wide adaptability and good stability, and is well received by users;

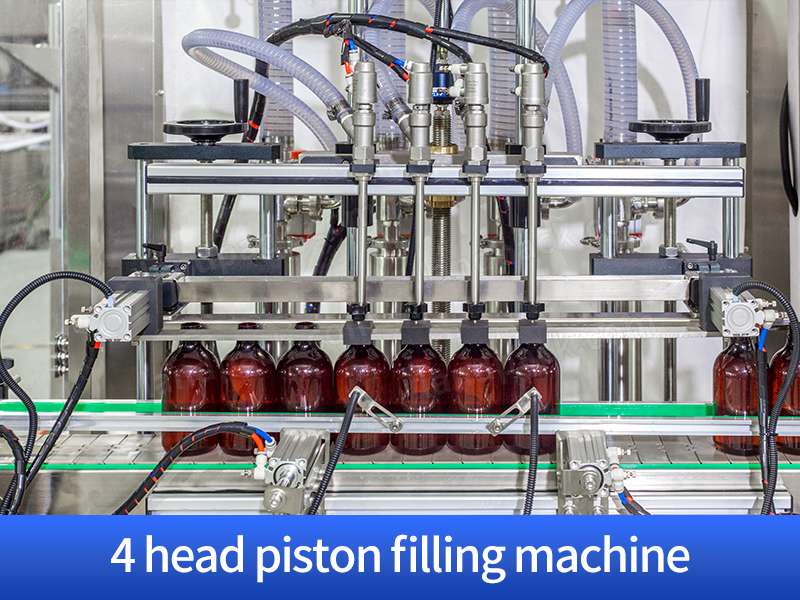

2.This line uses automatic bottle feeding, 4-head servo piston filling machine, coding machine, elevator automatic capping, servo screw cap, wafer positioning round bottle labeling machine, and bottle collection to form a fully automated production line;

3.The filling machine uses food-specific hoses and does not contain plasticizers, which is suitable for medicine, food and other industries;

4.The capping machine uses a manipulator to grasp the cap, press the cap, and control the capping torque through a servo motor to achieve the capping effect;

5.This type of capping machine has uniform force for capping, easy to adjust the force, and it is not easy to wear the cap;

6.The whole machine is made of corrosion-resistant stainless steel, which is easy to clean and disinfect, and meets the national regulations and requirements on food machinery and food hygiene;

7.This kind of production line is relatively advanced, and can be improved according to the different requirements of customers, and can be made into equipment that fully meets the needs of customers. The plexiglass cover of the whole machine is designed to prevent impurities from entering the filling material, which is safe and hygienic.

Automatic Shampoo Filling Capping And Labeling Line

Automatic Shampoo Filling Capping And Labeling Line

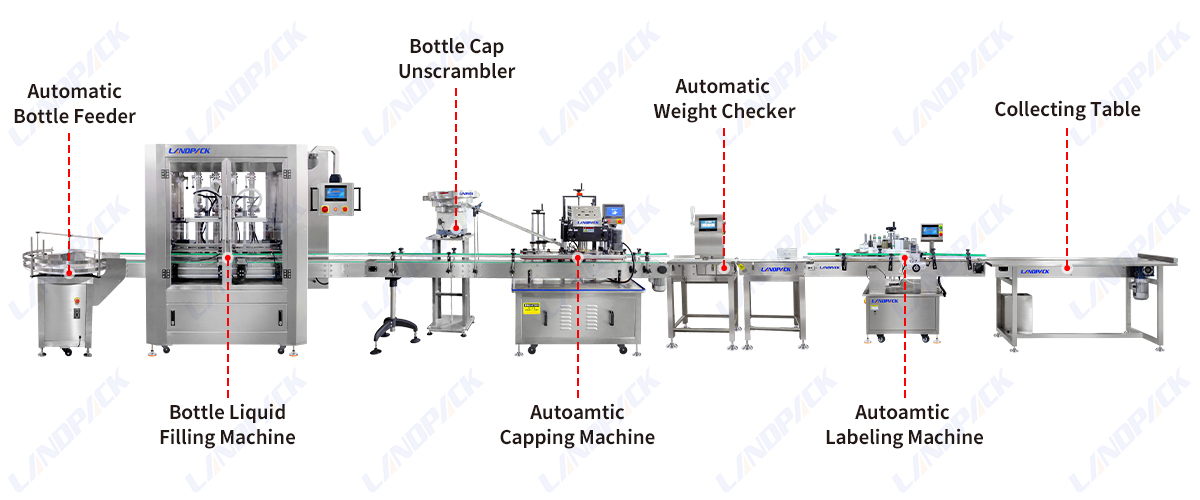

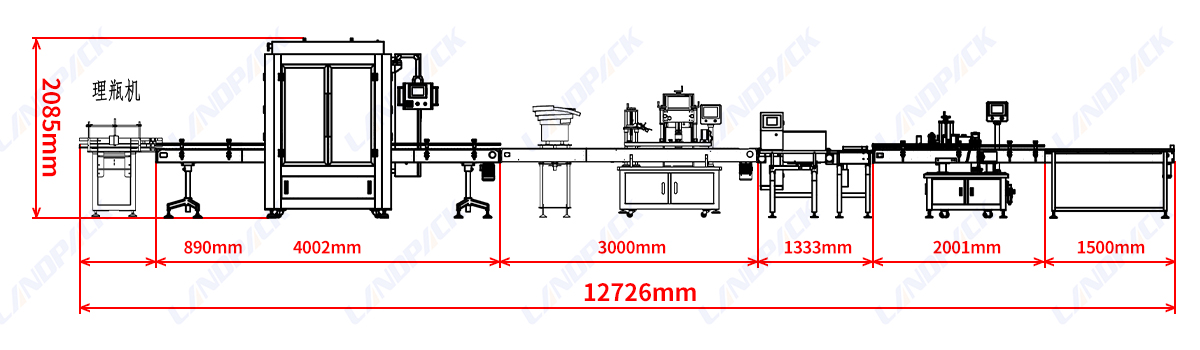

WORKFLOW

01

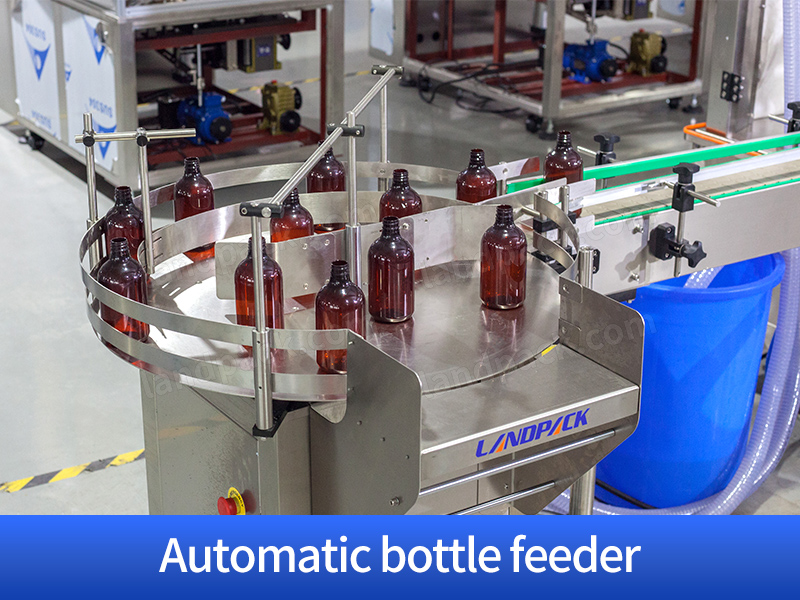

Automatic Bottle Feeder

02

Automatic Bottle Filling

03

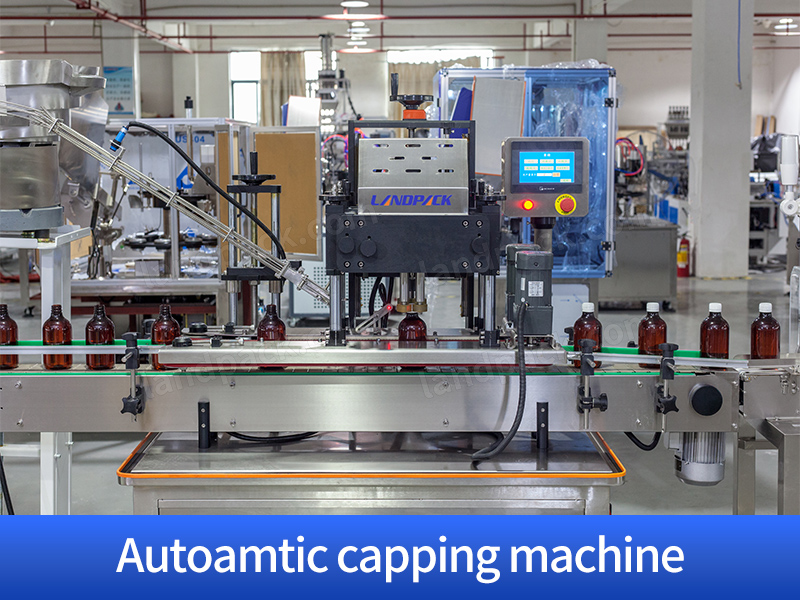

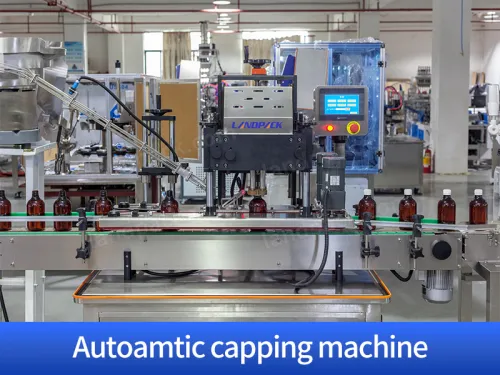

Automatic Capping

04

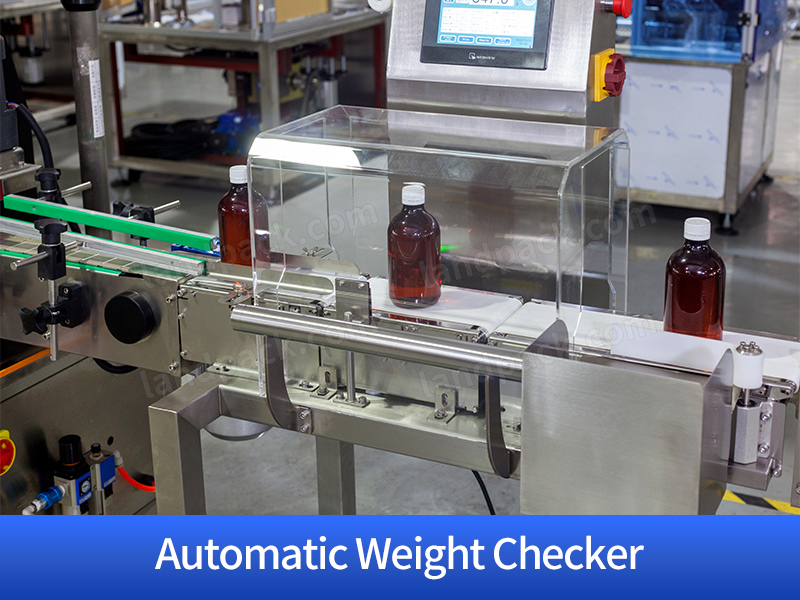

Automatic Weight Checker

05

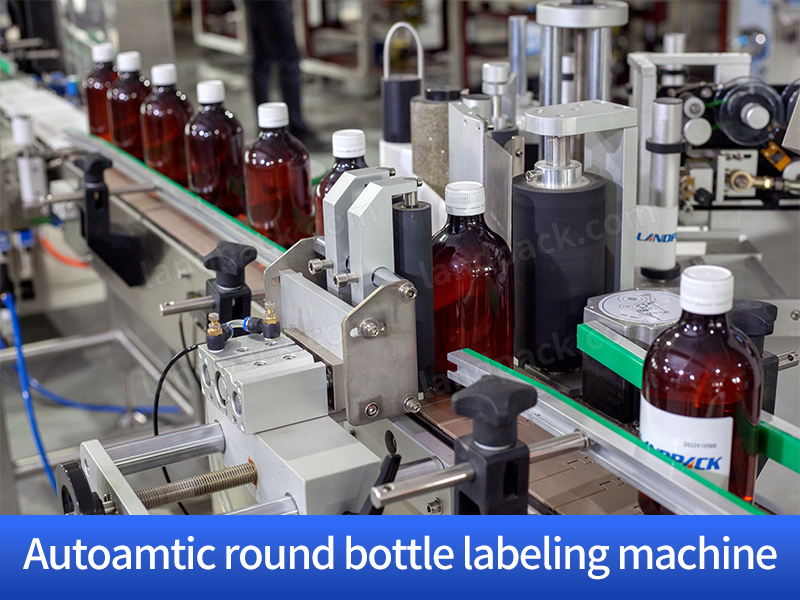

Automatic Round Bottle Labeling

06

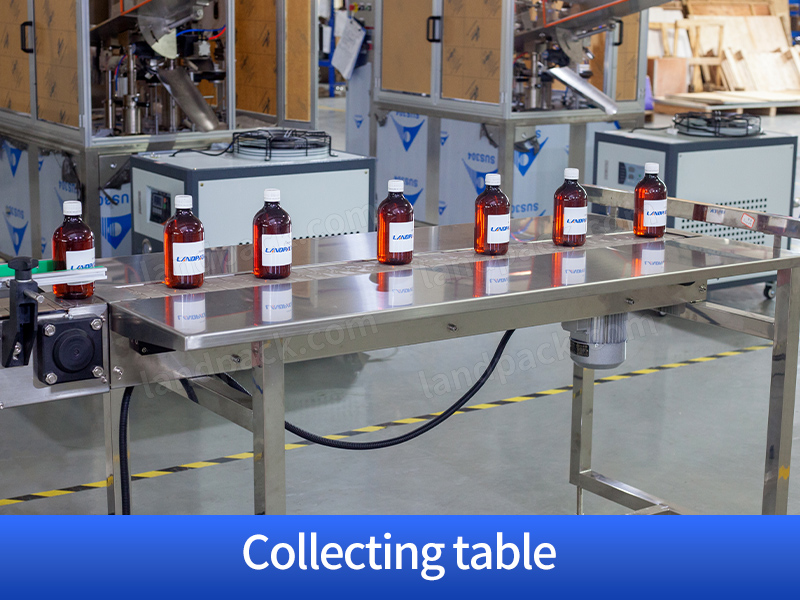

Collecting Table

PARAMETER

Automatic Shampoo Filling Capping And Labeling LineAutomatic Bottle feeder
Machine ModelLD-LFL800
Power Supply220V/110V, 50-60Hz, 200W
Turntable Diameter800mm
Suitable Bottle Diameter20-100mm
Suitable Bottle Height30-320mm
Working Speed40-60bottles/min(depending on bottle size)
Package Size1230*1010*1260mm
Gross Weight141kg
Automatic Shampoo Filling Capping And Labeling LineBottle Liquid filling machine
ModelLFZ-04LFZ-06LFZ-08
Filling Range50-1000ml (customizable)50-1000ml (customizable)50-1000ml (customizable)
Production Speed<15-25 bottles/min <20-35 bottles/min <30-40 bottles/min
Measurement Accuracy±1%±1%±1%
Power2KW2.5KW3.5KW
Voltage220V, 50Hz220V, 50Hz220V, 50Hz
Air consumption0.6-8Mpa0.6-8Mpa0.6-8Mpa
Weight600kg650kg800kg
DimensionL4000*W1320*H2090(mm)L4000*W1320*H2090(mm)L4000*W1320*H2090(mm)
Automatic Shampoo Filling Capping And Labeling LineAutomatic Capper
Machine modelLD-LP445
Voltage220V
Capacity5-25 Bottle/Min(based on bottle and cap size)
Air pressure0.6-0.8Mpa
Suitable bottlesCustomize according to sample
Capping wayServo drive screw capping
Machine sizeAbout 2900*950*2000mm
Packaging weightAbout 600kg(machine),316kg(Vibratory bowl sorter)



Automatic Shampoo Filling Capping And Labeling LineWeight Checker
Power supply220V 60Hz
Printing speed1024 seconds (5*7)
Printing materialspaper,plastic products,pipes,food bags,metal,glass, paper cups,etc.
Store informationThe system can store 1000 print information
Machine sizelength 370mm width 260mm height 500mm
Ink consumption70 million words per print (5*7)
Machine weight21kg
Package size560*350*570mm


Automatic Shampoo Filling Capping And Labeling LineAutomatic Labeling Machine
ModelLFT-LG-100(Low speed labeling)LFT-GS-100(High speed labeling)
Label length20mm~300mm20mm~300mm
Label width/height20mm~200mm(can be customized)20mm~200mm(can be customized)
Bottle width30-150mm(can be customized)30-150mm(can be customized)
Roll Label outer diameter300mm300mm
Roll Label inner diameter76mm76mm
Accuracy±1mm±1mm
Label speed40-100pcs/min60-120pcs/min
Conveyor speed5~25m/min15~20m/min
Suitable label typeAdhesive sticker label(transparent label need customized)Adhesive sticker label(transparent label need customized)
Working air pressure0.4-0.6Mpa0.4-0.6Mpa
Voltage220V can be customized 4KW220V can be customized 4KW
Weight350KG450KG
Overall dimension3000mm×1450mm×1950mm3050mm×1550mm×1950mm
Automatic Shampoo Filling Capping And Labeling LineCollecting Table
Capacity30-50Bottle
MaterialStainless Steel 304
Dimension300*2000*100mm
Weight200KG
