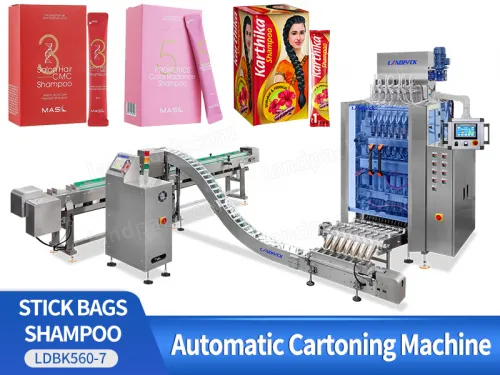

Multi-Lane Liquid Shampoo Stick Packing Machine With Counting Cartoning Line

Introduction:

Multi lane liquid stick packing machine with counting cartoning line is suitable for kinds of liquid products, such as shampoo, shower gel, fruit juice, honey, milk, mouthwash, sauce, jam, jelly, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Multi-Lane Liquid Shampoo Stick Packing Machine With Counting Cartoning Line

FEATURES

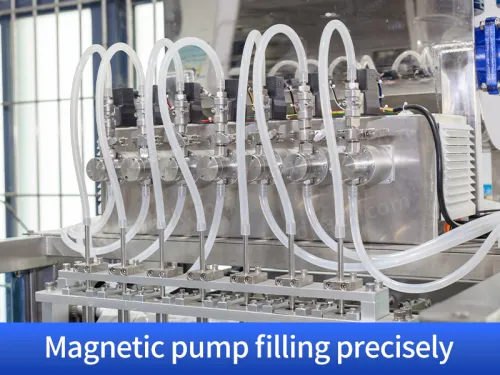

1. Accurate Measurement with Magnetic Pump: The magnetic pump ensures precise measurements, with an error margin controlled within ±0.5 ml. Additionally, its design facilitates easy cleaning.

2. Automatic Counting and Material Detection: The machine automatically counts items. If there’s no material present, it stops counting and triggers an alarm.

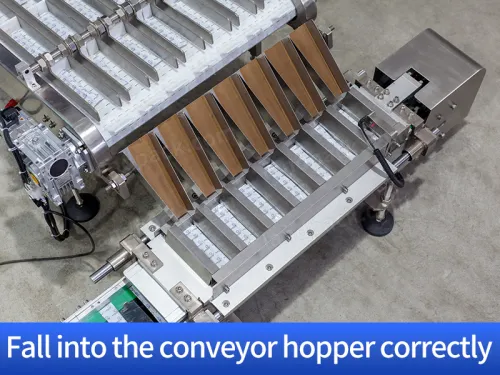

3. Seamless Product Handling: The finished product conveyor track and ramp conveyor belt are seamlessly linked. This ensures that each product falls accurately into the designated track.

4. Adjustable Counting: The counting mechanism is adjustable, allowing you to meet different quantity requirements based on your production needs.

5. Brand PLC Control and Automatic Counting: By adopting brand PLC control, the machine maintains stability during operation. The automatic counting feature further enhances efficiency.

6. Intelligent Touch Screen Parameters: Set parameters easily through the intelligent touch screen. With only one operator needed, the process becomes more efficient.

7. Stainless Steel Components for Corrosion Resistance: The main components are made of stainless steel, making them resistant to corrosion and suitable for various workshop environments.

Multi-Lane Liquid Shampoo Stick Packing Machine With Counting Cartoning Line

WORKFLOW

Film Unwinding

Film Slitting

Bag Formation

Liquid Filling

Sealing

Cutting

Counting and Cartoning

PARAMETER

	MULTI-LANE STICK PACK LIQUID PACKAGING MACHINE
	Model	LFF-GFW-008
	Yield	20-40 pcs/min
	Pipe diameter	Φ10mm-Φ50mm(customizable)
	Tube height	20mm-250mm(customizable)
	Control system	PLC
	Power supply	220V、50Hz
	Airconsumption	0.3m³/min
	Dimension	2180mm930mm1870mm(LWH)
	Equipment Material	304
	Weight	700KG

	BOXING MACHINE
	Model	LD200ZH
	Paper type	250-400(Boxes need come with pre-fold over)
	Capacity	30-60 boxes/min
	Box type	Gusseted tongue type; Glue spray type
	Count way	Fixed number type; Numerable type; Manipulator counting
	Boxing way	Orderly type; Unorderly type
	Air & Power	0.5-0.8Mpa 0.3m³/min;220V 50/60HZ 2.0KW
	Workflow	Box open - Bag packing - Check weigher - Counting - Boxing- Fold ears - Fold page - Gusseted tongue/Glue spray - Finish
